Escalade, Suburban, Tahoe, Yukon 2006-2007 Component Locations Repair Guide
Access our free Component Locations Repair Guide for Escalade, Suburban 1500 & 2500, Tahoe, Yukon, Yukon XL 1500 & 2500 (2006-2007), Yukon Denali and Yukon Denali XL (2005-2006) through AutoZone Rewards. These diagrams include:

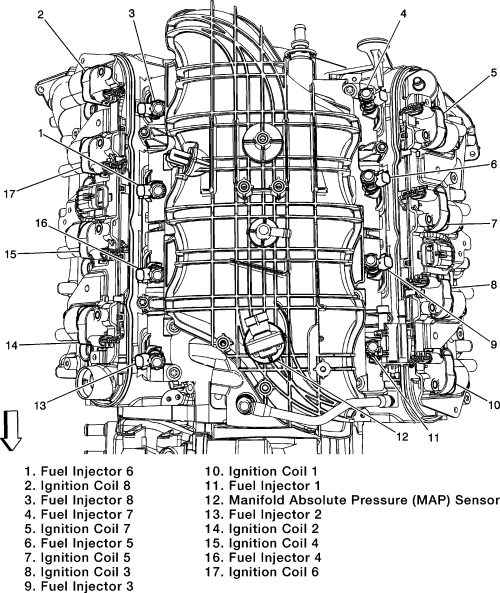

- Fig. Top engine compartment view-4.8L, 5.3L, 6.0L and 6.2L engines (1) Fuel Injector 6 (2) Ignition Coil 8 (3) Fuel Injector 8 (4) Fuel Injector 7 (5) Ignition Coil 7 (6) Fuel Injector 5 (7) Ignition Coil 5 (8) Ignition Coil 3 (9) Fuel Injector 3 (10) Ignition Coil 1 (11) Fuel Injector 1 (12) Manifold Absolute Pressure (MAP) Sensor (13) Fuel Injector 2 (14) Ignition Coil 2 (15) Ignition Coil 4 (16) Fuel Injector 4 Ignition Coil 6
- Fig. Right engine compartment view-4.8L, 5.3L, 6.0L and 6.2L engines (1) Ignition Coil 8 (2) Ignition Coil 6 (3) Ignition Coil 4 (4) Manifold Absolute Pressure (MAP) Sensor (5) Throttle Body (6) Ignition Coil 2 (7) Knock Sensor (KS) (8) Crankshaft Position (CKP) Sensor (9) Engine Oil Level Switch (10) Starter (11) Valve Lifter Oil Manifold (VLOM) Assembly (12) Engine Oil Pressure Sensor
- Fig. Front engine compartment view-4.8L, 5.3L, 6.0L and 6.2L engines (1) Throttle Body (2) Manifold Absolute Pressure (MAP) Sensor (3) Evaporative Emission (EVAP) Canister Purge Solenoid Valve (4) Knock Sensor (KS) (5) Engine Block Heater (6) Engine Coolant Temperature (ECT) Sensor (7) Camshaft Position (CMP) Sensor (8) Generator
- Fig. Right rear engine compartment view-4.8L, 5.3L, 6.0L and 6.2L engines (1) Battery (2) A/C Low Pressure Switch (3) A/C Compressor Clutch (4) A/C Refrigerant Pressure Switch (5) Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
- Fig. Left engine compartment view-4.8L, 5.3L, 6.0L and 6.2L engines (1) Windshield Wiper Motor (2) Power Brake Booster (3) Windshield Washer Solvent Heater (4) Fuse Block (5) Powertrain Control Module (PCM) (6) Transmission Control Module (TCM) (7) Brake Booster Vacuum Sensor (8) Brake Fluid Level Switch
- Fig. Oxygen sensor locations-4.8L, 5.3L, 6.0L and 6.2L engines (1) Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (2) Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (3) Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (4) Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
Access our Escalade, Suburban 1500 & 2500, Tahoe, Yukon, Yukon XL 1500 & 2500 (2006-2007), Yukon Denali and Yukon Denali XL (2005-2006) Component Locations Repair Guide by creating an account or signing into your AutoZone Rewards account. Once you sign in, follow these instructions to access our Repair Guides.
- Add your vehicle in Manage My Vehicles.
- Enter your vehicle details.
- Click the “View More” button, and then click “Vehicle Repair Guides.”
- Select the chapter “Component Locations Repair Guide”.
