Access our free Firing Orders Repair Guide for Mazda 2002-04 through AutoZone Rewards. These diagrams include:

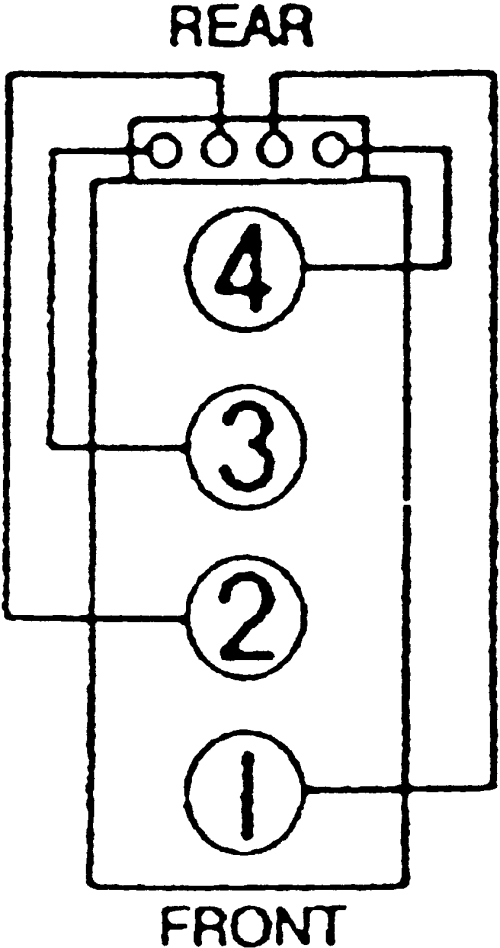

  • Fig. 1.8L Miata Engine Firing order: 1-3-4-2 Distributorless ignition system
  • Fig. 2.0L (FS) Engines Firing order: 1-3-4-2 Distributorless ignition system
  • Fig. 2.3L (KJ) Engine Firing order: 1-2-3-4-5-6 Distributorless ignition system (one coil over each cylinder)
  • Fig. 2.5L Engines Firing order: 1-2-3-4-5-6 Distributorless ignition system (one coil over each cylinder)
  • Fig. 1.8L (BP) Miata Engine Firing order: 1-3-4-2 Distributorless ignition system
  • Fig. 1.5L and 1.8L Non-Miata Engines Firing order: 1-3-4-2 Distributor rotation: Counterclockwise
Mazda 2002-04 Firing Orders Repair Guide

Access our Mazda 2002-04 Firing Orders Repair Guide by creating an account or signing into your AutoZone Rewards account. Once you sign in, follow these instructions to access our Repair Guides.

  • Add your vehicle in Manage My Vehicles.
  • Enter your vehicle details.
  • Click the “View More” button, and then click “Vehicle Repair Guides.”
  • Select the chapter ” Firing Orders Repair Guide”.
