Toyota Pick-ups, Land Cruiser, 4Runner 1989-1996 Firing Orders Repair Guide
Access our free Firing Orders Repair Guide for Toyota Pick-ups, Land Cruiser, 4Runner 1989-1996 through AutoZone Rewards. These diagrams include:

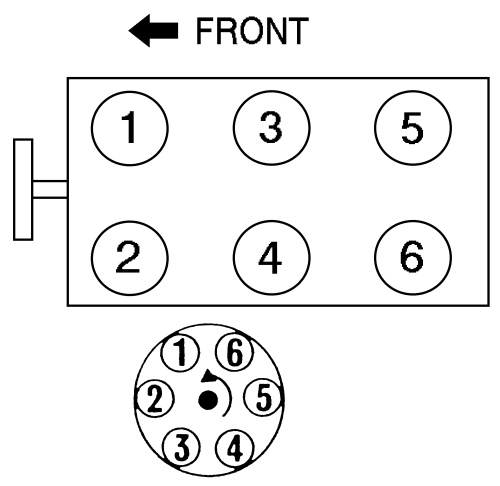

- Fig. 1: 3VZ-E Engine. Firing order-1-2-3-4-5-6. Distributor rotation: counterclockwise
- Fig. 2: 1FZ-FE Engine. Firing order-1-5-3-6-2-4. Distributor rotation: counterclockwise
- Fig. 3: 3F-E Engine. Firing order-1-5-3-6-2-4. Distributor rotation: clockwise
- Fig. 4: 22R and 22R-E Engines. Firing order-1-3-4-2. Distributor rotation: clockwise
- Fig. 5: 5VZ-FE Engine. Firing order-1-2-3-4-5-6.Distributorless ignition
- Fig. 6: 2RZ-FE and 3RZ-FE Engines. Firing Orders-1-3-4-2. Distributor rotation: clockwise
Access our Toyota Pick-ups, Land Cruiser, 4Runner 1989-1996 Firing Orders Repair Guide by creating an account or signing into your AutoZone Rewards account. Once you sign in, follow these instructions to access our Repair Guides.
- Add your vehicle in Manage My Vehicles.
- Enter your vehicle details.
- Click the “View More” button, and then click “Vehicle Repair Guides.”
- Select the chapter ” Firing Orders Repair Guide”.
