2001 Ford Escape Brake Rotor

Notes: Rotor only, Higher Carbon Content for maximum heat dissipation, quieter braking and longer life. Z-Clad coating for superior rust protection and enhanced appearance.

• PRICE: 113.99
• Location:: Front
• Inside Diameter: 142.7mm
• ABS Tone Ring Included: No
• Material: Iron Alloy

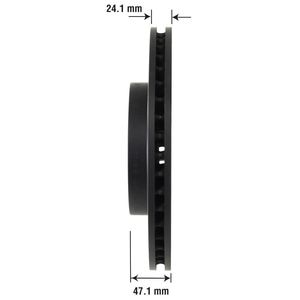

• Nominal Thickness: 24.1mm
• Center Hole Diameter: 72.0mm
• Grade Type: Regular
• Outside Diameter: 278.0mm
• Height: 47.1mm
• Solid Or Vented Type Rotor: Vented
• Discard Thickness: 22.0mm
• Overall Height: 47.1mm
• Surface Type: Smooth
• Stud/Lug Hole Quantity: 5
• Mounting Bolt Hole Circle Diameter: 114.3mm
• Slotted: No
• Rust Resistant Coating: No
• Directional or Non-Directional Brake Surface: Non-Directional
• Mounting Bolt Hole Quantity: 5

Notes: Disc Brake Rotor. With Prime. Without Hub.

• PRICE: 71.99
• Location:: Front
• ABS Tone Ring Included: No
• Construction: Composite
• Center Hole Diameter: 72.0mm
• Mounting Bolt Hole Circle Diameter: 72.0mm
• Grade Type: Premium
• Outside Diameter: 278.0mm
• Solid Or Vented Type Rotor: Vented
• Stud/Lug Hole Quantity: 5
• Discard Thickness: 22.0mm
• Surface Type: Smooth
• Nominal Thickness: 24.0mm
• Overall Height: 47.0mm
• Rust Resistant Coating: Yes
• Material: Gray Cast Iron

Notes: Disc Brake Rotor. ACDelco Advantage. Coated. Quantity per car: 2.

• PRICE: 78.99
• Location:: Front
• ABS Tone Ring Included: No
• Mounting Bolt Hole Diameter: 14.15mm
• Overall Height: 1.845in
• Grade Type: Regular
• Hat Finish: Plain
• Construction: Full Cast
• Mounting Bolt Hole Circle Diameter: 4.5in
• Material: Cast Iron
• Disc Finish: Non Directional
• Solid Or Vented Type Rotor: Vented
• Conventional Or Drum-In-Hat Type Rotor: Conventional
• Surface Type: Smooth
• Stud/Lug Hole Quantity: 5
• Discard Thickness: 0.866in
• Nominal Thickness: 24mm
• Outside Diameter: 278mm
• Center Hole Diameter: 2.84in
• Rust Resistant Coating: Yes
• Mounting Bolt Hole Quantity: 5

Notes: Rotor only, Premium vented.

• PRICE: 108.99
• Location:: Front
• ABS Tone Ring Included: No
• Lug Quantity: 5
• Mounting Bolt Hole Circle Diameter: 114mm
• Lug Hole Diameter: 14
• Grade Type: Premium
• Minimum Thickness: 22
• Rotor Type: N
• Overall Height: 46.9mm
• Height: 46.9
• Hub Outside Diameter: 154
• Bolt Hole Center To Center Length: 114
• Abutment Clips Included: No
• Rotor Inside Diameter: 143
• Rotor Center Bore Inside Diameter: 72
• Solid Or Vented Type Rotor: Vented
• Adhesive Backed Pad Shim: No
• Outside Diameter: 277.8mm
• Surface Type: Smooth
• Rotor Outside Diameter: 277.8
• Stud/Lug Hole Quantity: 5
• Discard Thickness: 22mm
• Vented: Y
• Rotor Thickness: 24
• Bearings Included: No
