2005 Lexus IS300 Brake Rotor

Notes: Rotor only, Uncoated. Quantity per car: 2.

• PRICE: 109.99
• Location:: Rear
• ABS Tone Ring Included: No
• Grade Type: Regular
• Mounting Bolt Hole Circle Diameter: 4.5in
• Solid Or Vented Type Rotor: Solid
• Discard Thickness: 0.413in
• Center Hole Diameter: 2.441in
• Surface Type: Smooth
• Stud/Lug Hole Quantity: 5
• Nominal Thickness: 12.0mm
• Outside Diameter: 12.071in
• Slotted: No
• Mounting Bolt Hole Quantity: 5
• Overall Height: 2.508in

Notes: Rotor only, 296 mm rotor.

• PRICE: 91.99
• Location:: Front
• ABS Tone Ring Included: No
• Material: Iron Alloy
• Outside Diameter: 296.0mm
• Inside Diameter: 143.6mm
• Grade Type: Regular
• Discard Thickness: 30.0mm
• Bolt Hole Quantity: 5
• Solid Or Vented Type Rotor: Vented
• Center Hole Diameter: 62.1mm
• Surface Type: Smooth
• Stud/Lug Hole Quantity: 5
• Mounting Bolt Hole Circle Diameter: 114.3mm
• Slotted: No
• Mounting Bolt Hole Quantity: 5
• Nominal Thickness: 32.0mm
• Rust Resistant Coating: No
• Overall Height: 50.8mm
• Directional or Non-Directional Brake Surface: Non-Directional

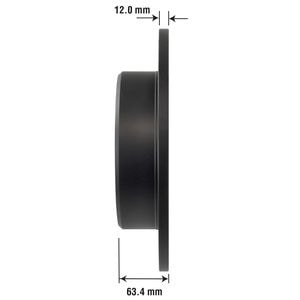

Notes: Rotor only, Higher Carbon Content for maximum heat dissipation, quieter braking and longer life. Z-Clad coating for superior rust protection and enhanced appearance.

• PRICE: 123.99
• Location:: Rear
• ABS Tone Ring Included: No
• Material: Iron Alloy
• Discard Thickness: 10.5mm
• Grade Type: Regular
• Inside Diameter: 190.0mm
• Solid Or Vented Type Rotor: Solid
• Nominal Drum Diameter: 190.0mm
• Maximum Brake Diameter (Discard): 191.0mm
• Surface Type: Smooth
• Stud/Lug Hole Quantity: 5
• Outside Diameter: 307.0mm
• Nominal Thickness: 12.0mm
• Mounting Bolt Hole Circle Diameter: 114.3mm
• Slotted: No
• Rust Resistant Coating: No
• Overall Height: 63.4mm
• Mounting Bolt Hole Quantity: 5
• Center Hole Diameter: 62.0mm
• Directional or Non-Directional Brake Surface: Non-Directional

Notes: Disc Brake Rotor. With Prime.

• PRICE: 97.99
• Location:: Front
• ABS Tone Ring Included: No
• Construction: Composite
• Overall Height: 51.0mm
• Outside Diameter: 296.0mm
• Mounting Bolt Hole Circle Diameter: 62.0mm
• Grade Type: Premium
• Discard Thickness: 30.0mm
• Solid Or Vented Type Rotor: Vented
• Stud/Lug Hole Quantity: 5
• Surface Type: Smooth
• Rust Resistant Coating: Yes
• Center Hole Diameter: 62.0mm
• Material: Gray Cast Iron
• Nominal Thickness: 32.0mm

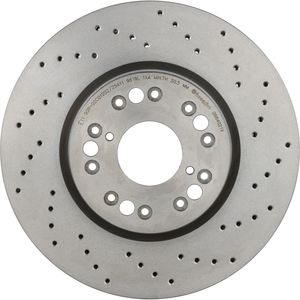

Notes: Disc Brake Rotor. XTRA.

• PRICE: 154.99
• Location:: Front
• ABS Tone Ring Included: No
• Construction: Composite
• Overall Height: 51.0mm
• Outside Diameter: 296.0mm
• Mounting Bolt Hole Circle Diameter: 62.0mm
• Grade Type: Premium
• Brake Surface Finish: X Drilled
• Surface Type: X Drilled
• Solid Or Vented Type Rotor: Vented
• Stud/Lug Hole Quantity: 5
• Discard Thickness: 30.5mm
• Rust Resistant Coating: Yes
• Center Hole Diameter: 62.0mm
• Material: Gray Cast Iron
• Nominal Thickness: 32.0mm

Notes: Prime. Quantity per car: 2.

• PRICE: 76.99
• Location:: Rear
• ABS Tone Ring Included: No
• Construction: Composite
• Overall Height: 63.0mm
• Discard Thickness: 10.5mm
• Mounting Bolt Hole Circle Diameter: 62.0mm
• Grade Type: Premium
• Solid Or Vented Type Rotor: Solid
• Stud/Lug Hole Quantity: 5
• Surface Type: Smooth
• Outside Diameter: 307.0mm
• Nominal Thickness: 12.0mm
• Rust Resistant Coating: Yes
• Center Hole Diameter: 62.0mm
• Material: Gray Cast Iron

Notes: Disc Brake Rotor. ACDelco Advantage. Coated. Quantity per car: 2.

• PRICE: 86.99
• Location:: Front
• Center Hole Diameter: 62.05mm
• ABS Tone Ring Included: No
• Discard Thickness: 30mm
• Grade Type: Regular
• Nominal Thickness: 31.9mm
• Outside Diameter: 295.9mm
• Solid Or Vented Type Rotor: Vented
• Conventional Or Drum-In-Hat Type Rotor: Conventional
• Stud/Lug Hole Quantity: 5
• Surface Type: Smooth
• Mounting Bolt Hole Circle Diameter: 114.3mm
• Mounting Bolt Hole Diameter: 114.3mm
• Rust Resistant Coating: Yes
• Overall Height: 50.8mm
• Mounting Bolt Hole Quantity: 5

Notes: Rotor only, *Premium

• PRICE: 116.99
• Location:: Front
• ABS Tone Ring Included: No
• Rotor Center Bore Inside Diameter: 62
• Outside Diameter: 295mm
• Lug Quantity: 5
• Mounting Bolt Hole Circle Diameter: 114mm
• Grade Type: Premium
• Rotor Type: N
• Hub Outside Diameter: 154
• Bolt Hole Center To Center Length: 114
• Abutment Clips Included: No
• Lug Hole Diameter: 14.5
• Rotor Inside Diameter: 143
• Solid Or Vented Type Rotor: Vented
• Adhesive Backed Pad Shim: No
• Minimum Thickness: 30.5
• Surface Type: Smooth
• Rotor Outside Diameter: 295
• Stud/Lug Hole Quantity: 5
• Vented: Y
• Overall Height: 51mm
• Height: 51
• Rotor Thickness: 32.4
• Discard Thickness: 30.5mm
• Bearings Included: No

Notes: Disc Brake Rotor. Premium. Quantity per car: 2.

• PRICE: 93.99
• Location:: Rear
• Overall Height: 63.8mm
• ABS Tone Ring Included: No
• Rotor Inside Diameter: 186
• Vented: N
• Rotor Center Bore Inside Diameter: 62
• Discard Thickness: 10mm
• Lug Quantity: 5
• Mounting Bolt Hole Circle Diameter: 114mm
• Grade Type: Premium
• Outside Diameter: 307mm
• Rotor Outside Diameter: 307
• Lug Hole Diameter: 14.7
• Bolt Hole Center To Center Length: 114
• Abutment Clips Included: No
• Minimum Thickness: 10
• Rotor Type: Y
• Solid Or Vented Type Rotor: Solid
• Adhesive Backed Pad Shim: No
• Surface Type: Smooth
• Stud/Lug Hole Quantity: 5
• Rotor Thickness: 12
• Hub Outside Diameter: 201.8
• Height: 63.8
• Bearings Included: No
