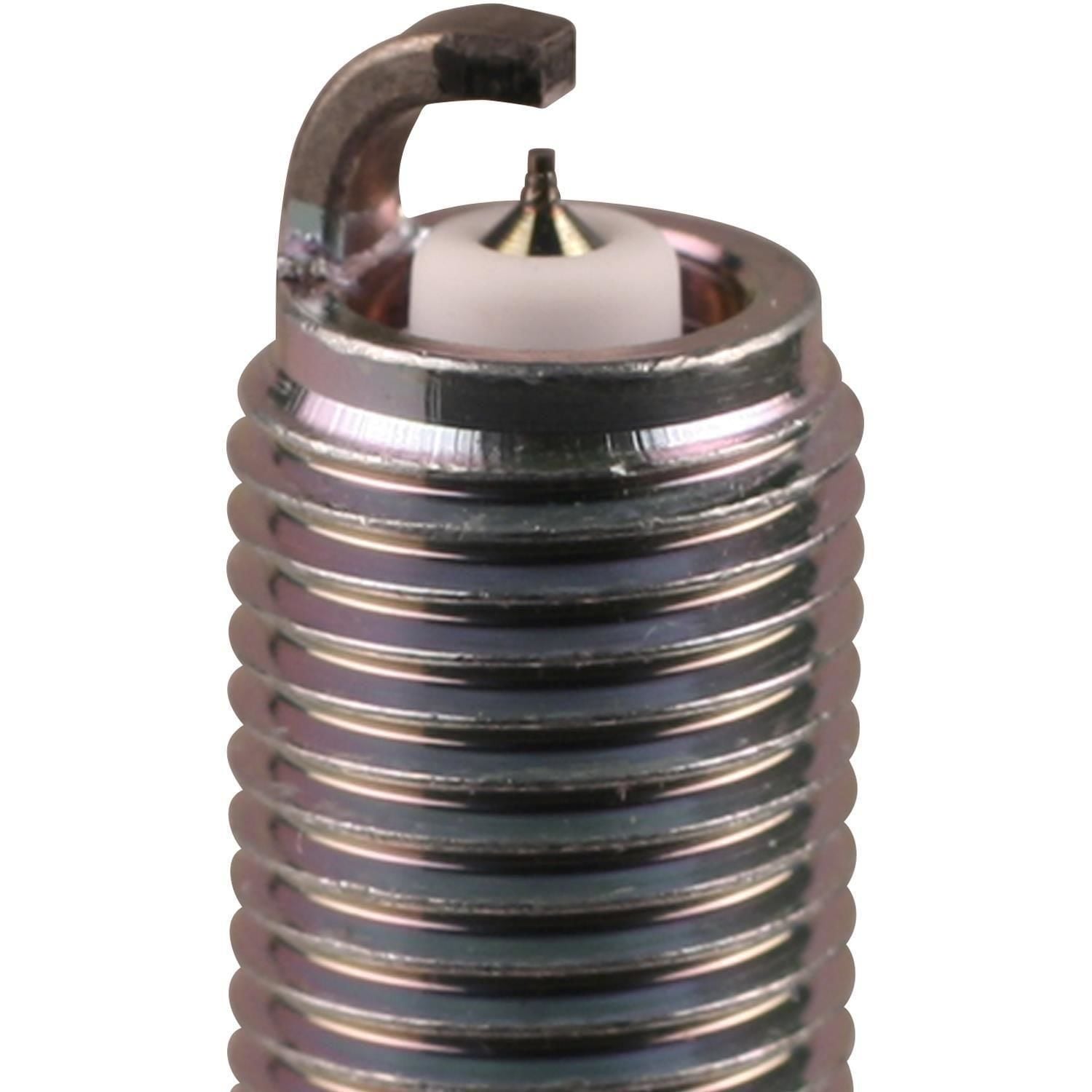

NGK Laser Iridium Spark Plug 7764

Shop All NGK
NGK88441
Part # 7764
SKU # 88441
Total price is: 16 dollars and 99 cents.
In stock | Estimated delivery tomorrow

Part #7764
SKU #88441
Weight0.1lbs
Resistor TypeYes
Center Electrode Tip MaterialIridium
Pre-Gap Size0.9mm
Insulator MaterialCeramic
Center Electrode Core MaterialCopper
Grade TypePerformance
SkirtNo
Resistance5000.0Ohms
Ground Electrode Tip DesignSquare Platinum Electrode (SPE) - High Ignitability
Skirt Length0.0mm
Ground ConfigurationJ-Gap
Ground Electrode Core MaterialNickel
Electrical Terminal TypeNon-Removable Nut
Washer(s) IncludedYes
Ground Electrode Tip MaterialPlatinum
Thread Diameter10.0mm
Seat TypeFlat
Reach26.5mm
Manufacturer Heat Range10
Washer TypeCrush
Hex Size14mm
Metal TypeIridium
Insulator Height51.0mm
Ground Electrode Quantity1
Center Electrode DesignFine Wire
Center Electrode Insulator Tip Projection2.0mm
Center Electrode ProjectionMid Projection

NGK Laser Iridium High Ignitability spark plugs offer the best combination of performance and longevity. Engineered specifically for OE applications, Laser Iridium High Ignitability spark plugs are tested to the highest standards to ensure quality and durability. Iridium tipped center electrode provides durability six times harder than platinum. NGKs high grade pure alumina ceramic and 98 percent pure copper core prevents the spark plug from overheating while providing reliable starts. Laser Iridium High Ignitability spark plugs feature raised platinum pad or platinum fine wire tip on the ground electrode for even wear in distributorless ignition systems and improved spark performance.
  • checkmark
    IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
  • checkmark
    SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • checkmark
    RECOMMENDED USAGE: Best for vehicles with OE SPE iridium alloy plugs
  • checkmark
    ACTUAL OE or EQUIVALENT HIGH IGNITABILITY DESIGN: SPE tip and iridium alloy center electrode produce the most advanced OE spark plug technology
  • checkmark
    SPE DESIGN: Square platinum electrode shape of the ground electrode provides the best ignitability and service life for high heat engines
  • checkmark
    TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
