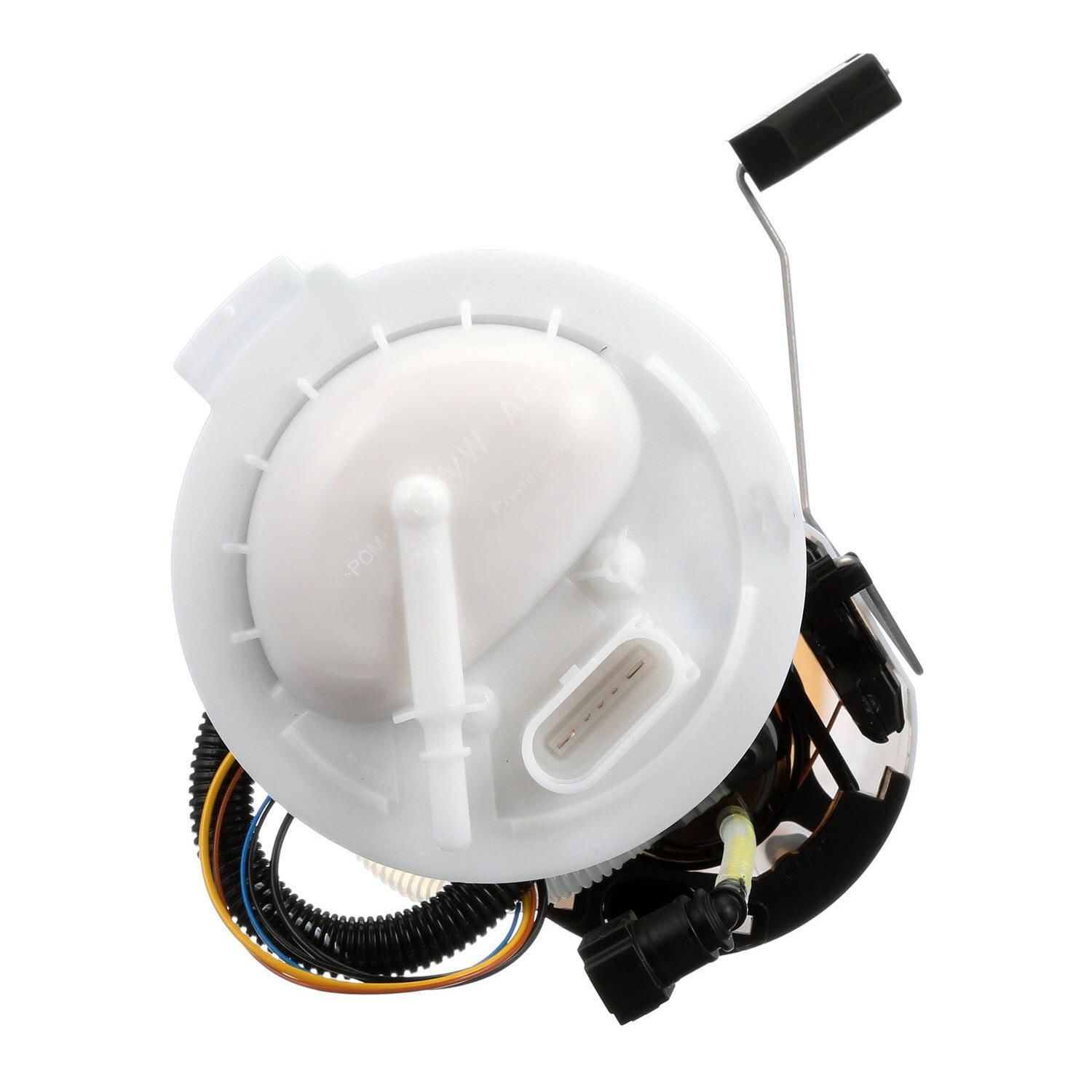

TruGrade Fuel Pump D5122M
Hover over image to zoom
Hover over image to zoom

TruGrade Fuel Pump D5122M

Shop All TruGrade
TruGrade839767https://www.autozone.com/external-engine/fuel-pump/p/trugrade-fuel-pump-d5122m/839767_0_0?searchText=122+410
Part # D5122M
SKU # 839767
Total price is: 399 dollars and 99 cents.
In stock | Estimated delivery tomorrow

PRODUCT SPECIFICATIONS

Warranty
Part #D5122M
SKU #839767
Weight3.6lbs
Minimum Flow Rating28gph
Top Mount Diameter137.0mm
Outlet Quantity1
Grade TypeRegular
Terminal Quantity5
Connector GenderMale
Outlet Outside Diameter7.9mm
Connector ShapeOval
Terminal GenderMale
Lock Ring IncludedNo
Voltage12VDC
Fuel Sending Unit IncludedYes
Wiring Harness Length100.0mm
Housing Length122.0mm
Terminal TypeBlade
Width24.0mm
In Tank or ExternalIn Tank
Strainer IncludedYes
Pump TypeElectric
Connector ColorWhite
Wire Quantity5
Mounting Hardware IncludedNo
Housing MaterialAcetal
Wire Gauge Measurement18ga.
Height122mm
Minimum Pressure87.0PSI
Outlet TypeMQC
Gasket Or Seal IncludedYes
Inlet TypePort
Fuel Filter IncludedNo
Universal Or Specific FitSpecific
Wire Harness IncludedNo
Housing Width115mm

PRODUCT DESCRIPTION

The TruGrade Fuel Systems program features unique innovation and solutions by offering premium OE fit, form, and function as well as exceptional vehicle coverage and exclusive problem-solving features.
  • checkmark
    TruGrade Electric Fuel Pumps and Electric Fuel Pump Assemblies are made with all new materials under rigorous quality controlled manufacturing and testing procedures.
  • checkmark
    Quality TruGrade Electric Fuel Pumps and Fuel Pump Assemblies deliver optimum performance while providing long life.
  • checkmark
    Most applications include the necessary accessories such as tank seals, patented high-gradient density strainers and wiring harnesses.
  • checkmark
    Fuel sensor design provides resistance to corrosive fuel blends and additives.
Customer Reviews
4 Reviews
100% of reviewers recommend this product.
2 recommendations

Ratings

Looking for something specific?
  • Sort by
  • Filter by
4 Reviews

  • How long is warranty

    Monica
    2 months ago
    Verified Purchase
    Recommended

    The mechanics who installed fuel pump had no issues. How long is the warranty?

    Purchased for: 2007 VW Passat 3.6

    Helpful?

  • Be careful. Pump my be faulty

    Abel
    1 year ago
    Sweepstakes Entry

    I had bought this fuel pump and installed it into my 2017 vw Passat. And it would run for 20 minutes then the pump would stop working. I got a replacement and installed it, the car and pump are working just as it should

    Purchased for: Vw Passat 2017

    Helpful?

  • Be careful. Pump my be faulty

    Abel
    1 year ago
    Sweepstakes Entry

    I had bought this fuel pump and installed it into my 2017 vw Passat. And it would run for 20 minutes then the pump would stop working. I got a replacement and installed it, the car and pump are working just as it should

    Purchased for: Vw Passat 2017

    Helpful?

  • Works as expected *complete unit*

    Tim
    2 years ago
    Verified Purchase
    Recommended
    Sweepstakes Entry

    The fuel pump fit my daughter's 2015 VW Passat without issue. I originally bought a less expensive replacement from an online parts retailer. The online unit did not come with a sediment filter (required) or the tank gasket (also required). Had to return the online unit and bought this one from AutoZone. Trust your local Auto Zone. One more thing: the fuel control unit becomes brittle and can likely break while unplugging from the fuel pump. Be prepared to replace that as well.

    Purchased for: 2015 VW Passat Limited Edition

    Helpful?
