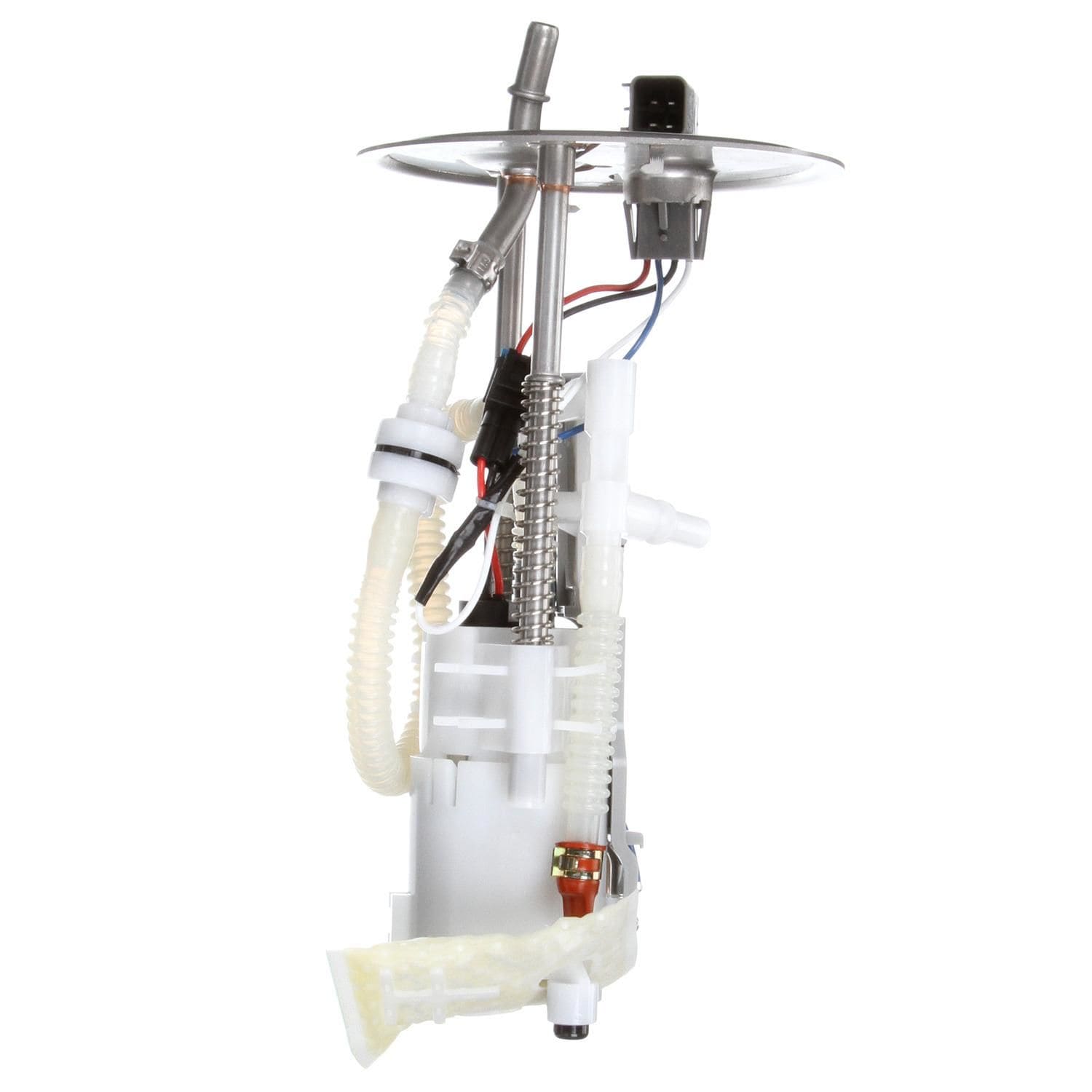

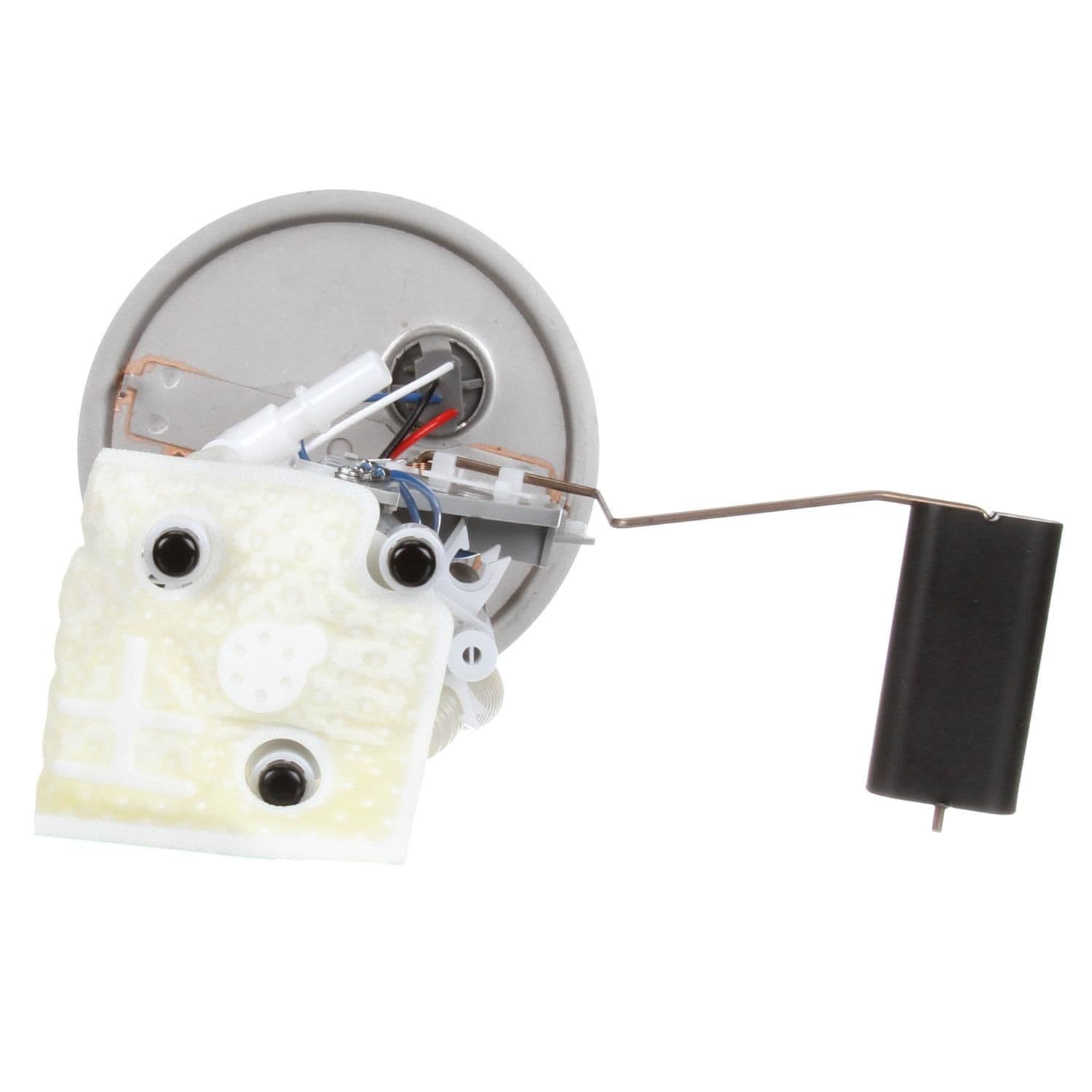

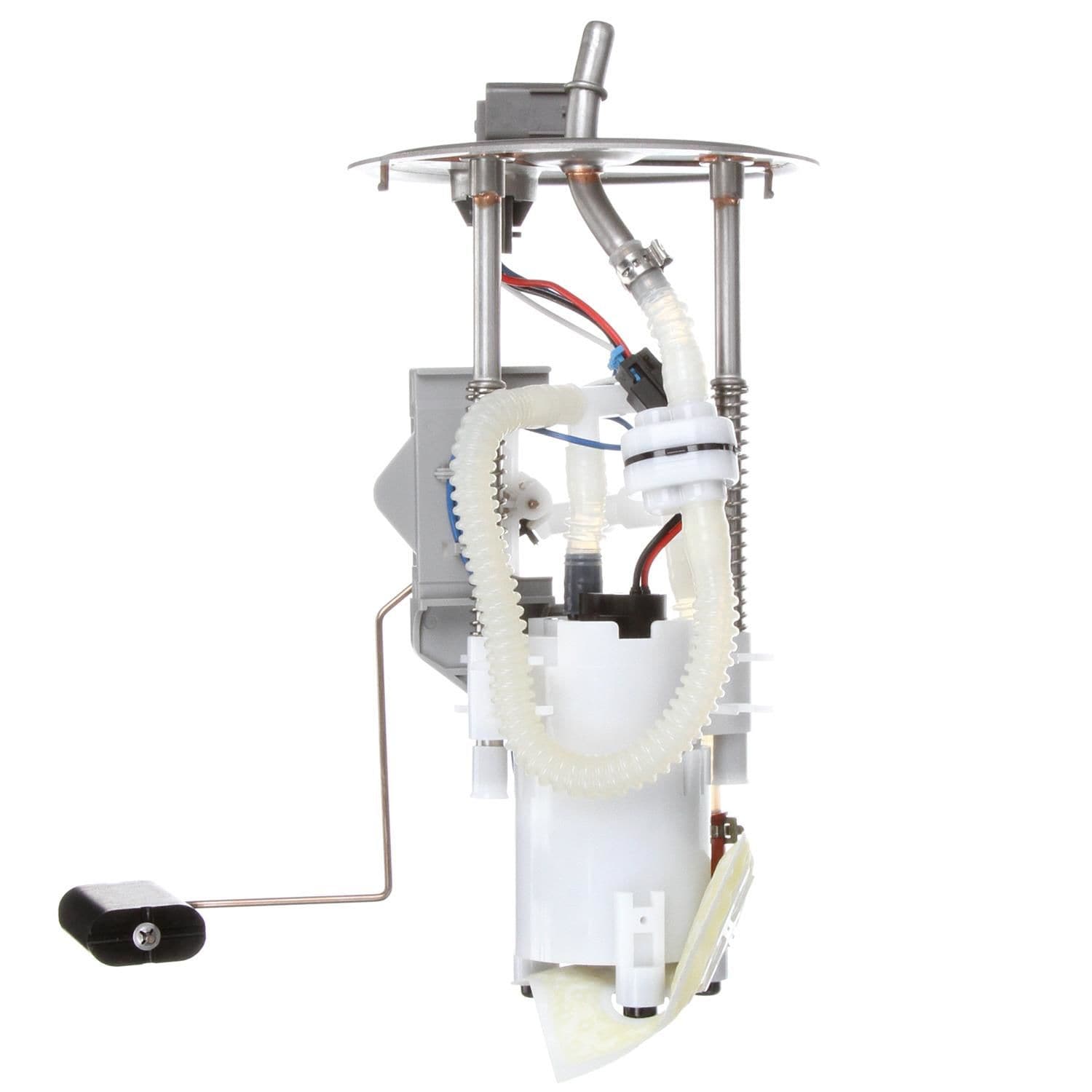

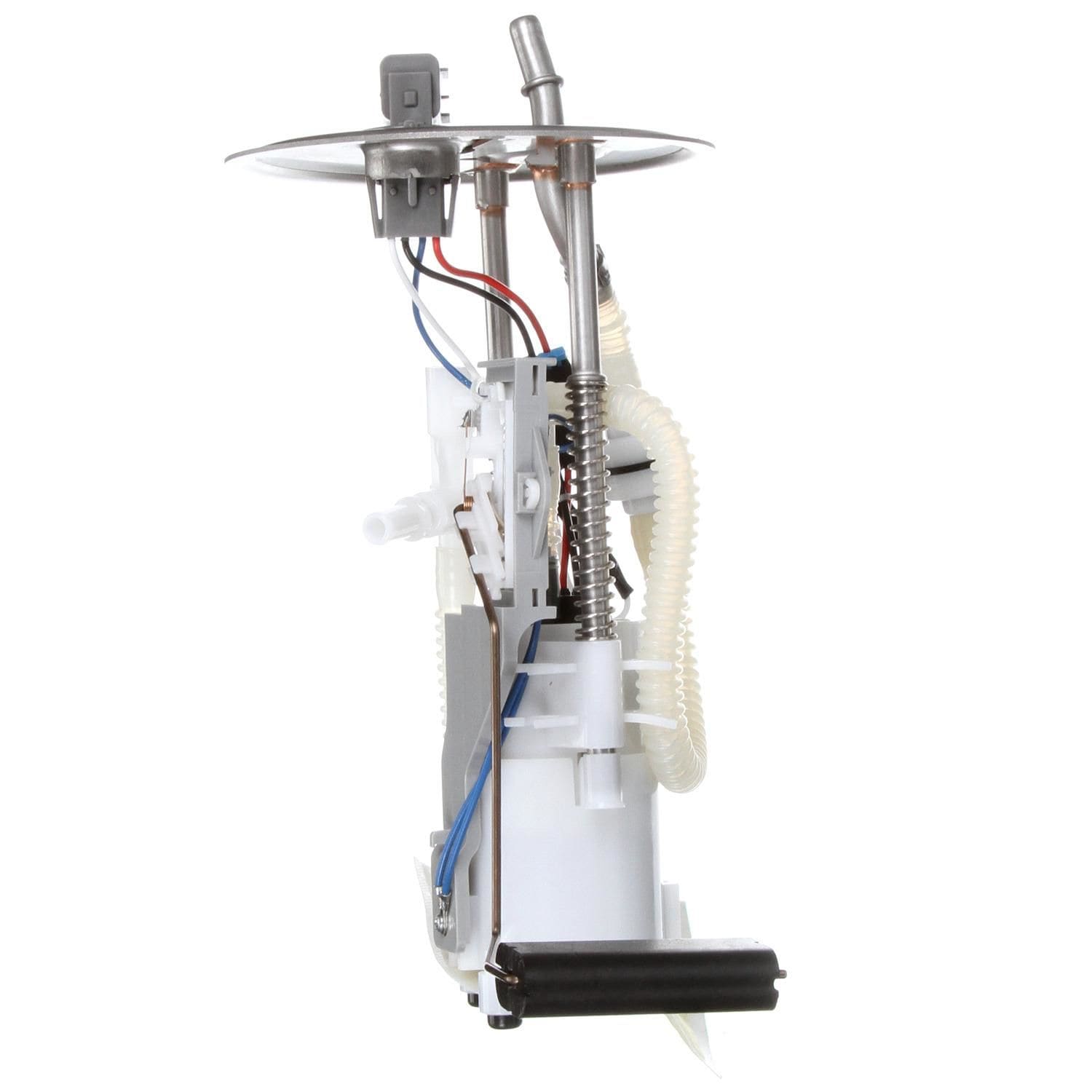

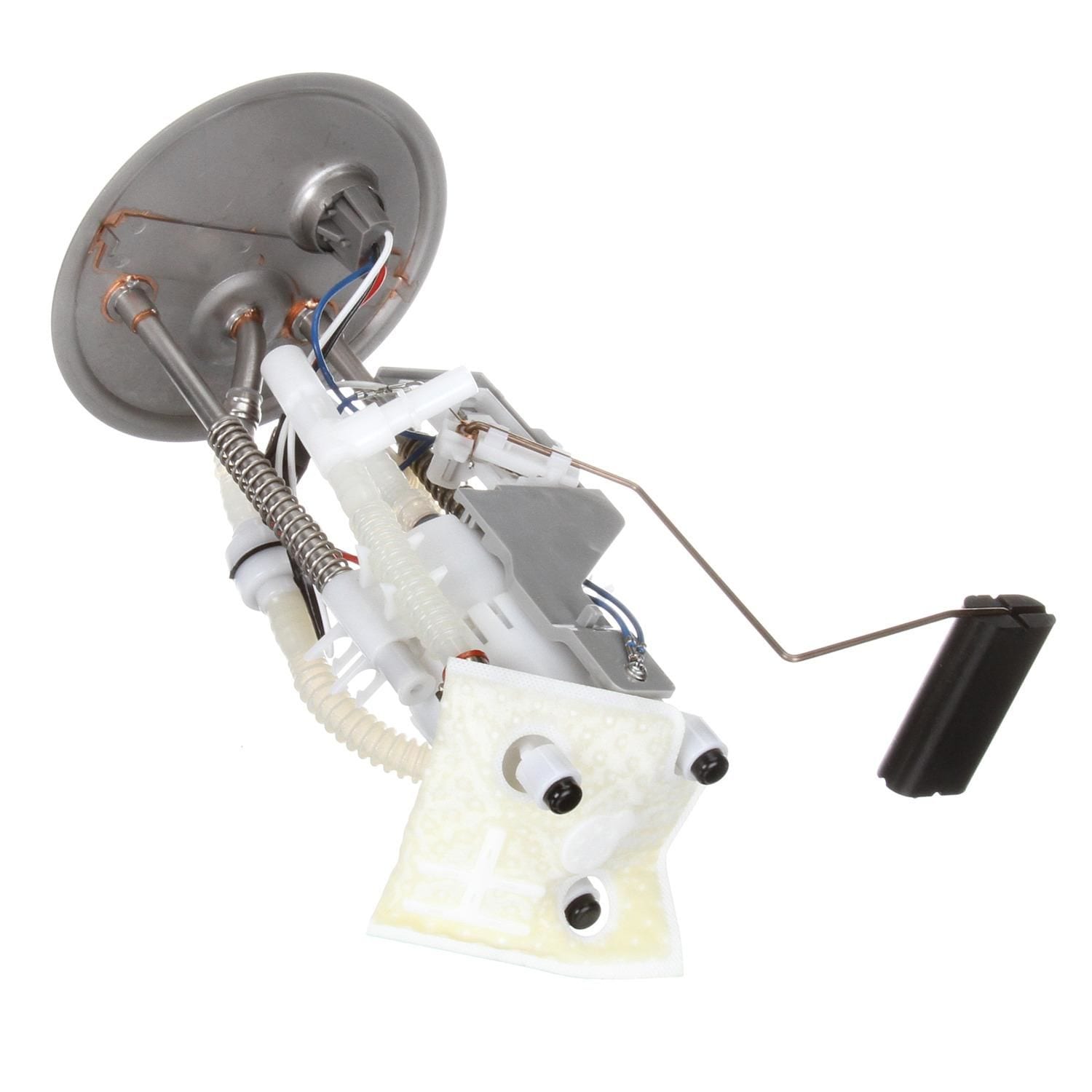

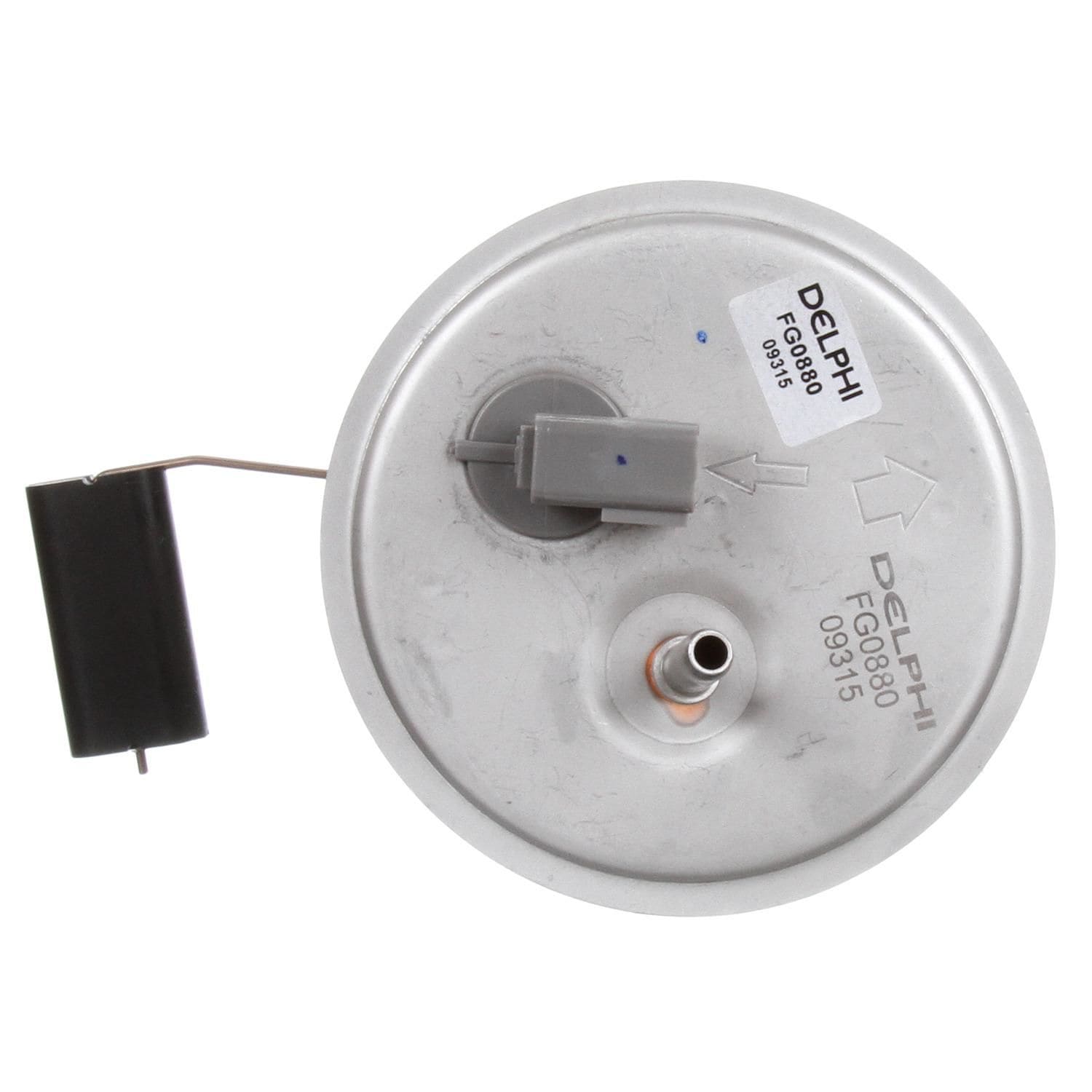

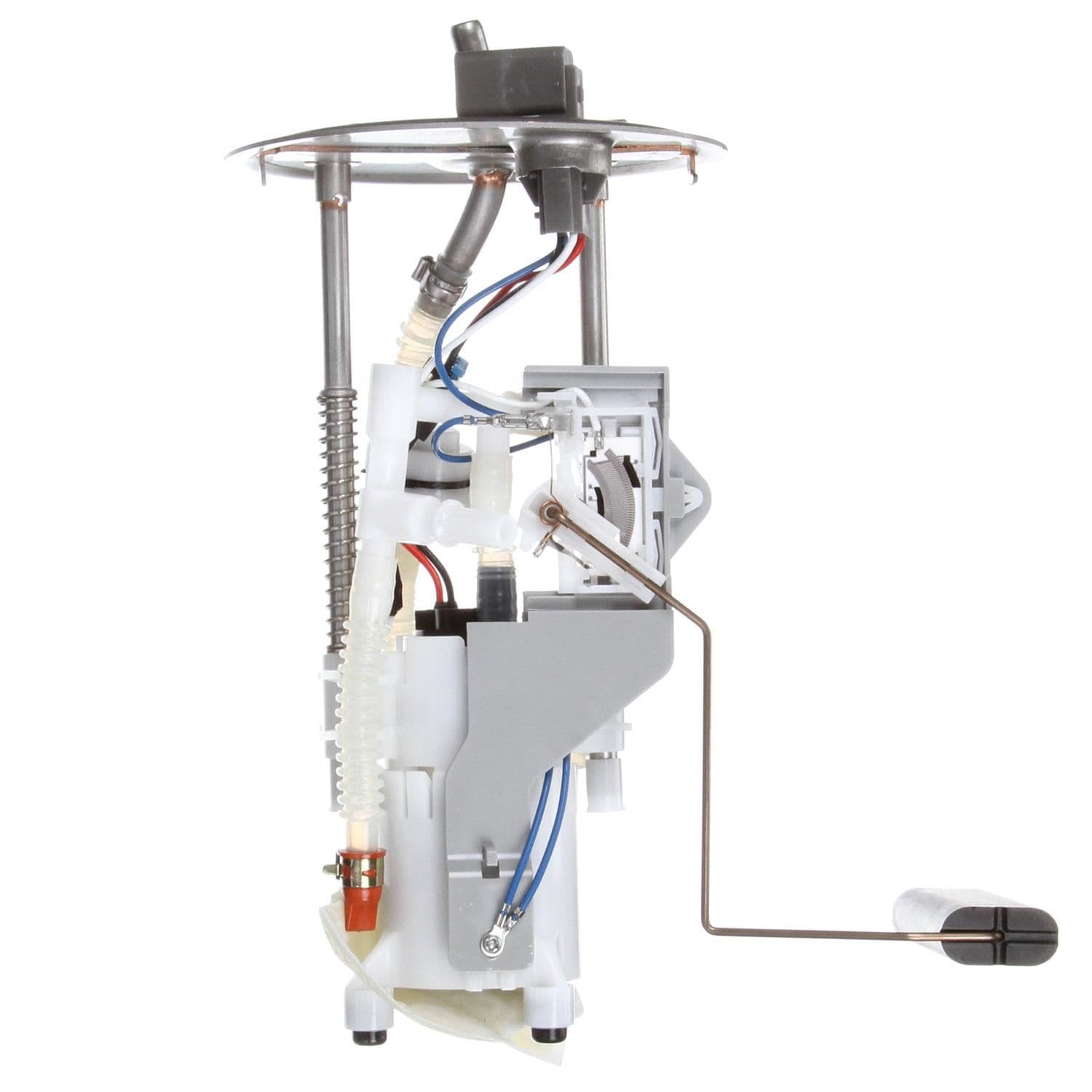

Delphi Fuel Pump Module Assembly DFG0880

Shop All Delphi
Part #
DFG0880
The price of this item is: 382 dollars and 99 cents
quantity
Specifications:
View All
Warranty:
Limited-Lifetime Warranty
Part Number:
DFG0880
SKU Number:
556162
Location:
Left
Warranty
Part #DFG0880
SKU #556162
LocationLeft
Average Flow Rating26gph
Outlet Quantity1
Grade TypePremium

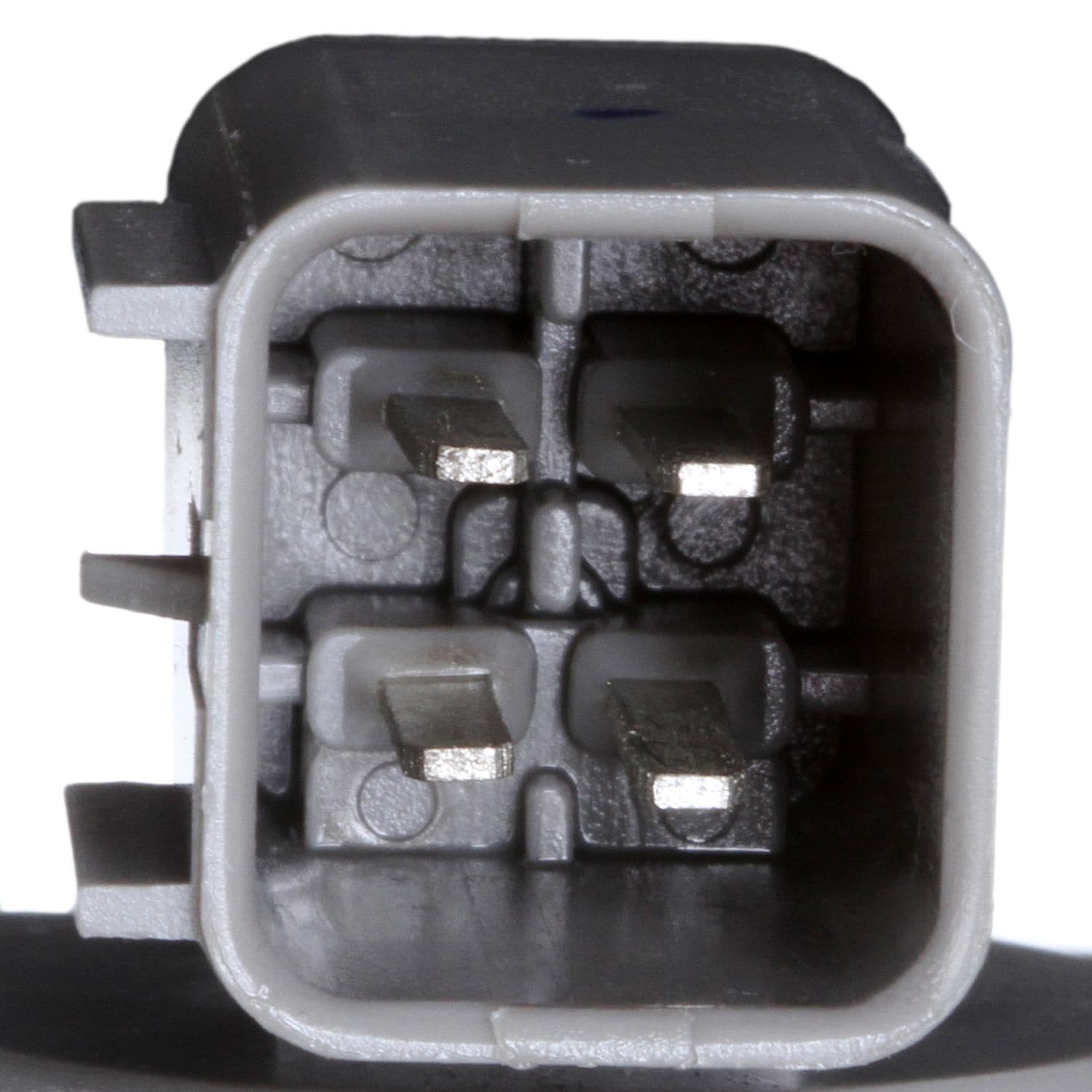

Terminal Quantity4
Connector GenderFemale
Outlet Outside Diameter0.375in
Connector ShapeSquare
Terminal GenderMale
Lock Ring IncludedNo
Connector Quantity1
Voltage12VDC
Fuel Sending Unit IncludedYes
Negative GroundNo
Terminal TypeBlade
Resistance Ohms Empty15Ohms
Resistance Ohms Full160Ohms
In Tank or ExternalIn Tank
Pump DesignTurbine
Strainer IncludedYes
Pump TypeElectric
Housing MaterialPlastic
Mounting Hardware IncludedNo
Gasket Or Seal MaterialNitrile Rubber
Minimum Pressure59PSI
Regulator IncludedNo
Outlet TypeQuick Connect
Gasket Or Seal IncludedYes
Average Current Draw10A
Inlet TypeStrainer
Fuel Tank Pressure Sensor IncludedNo
Installation WarningsNo
Fuel Filter IncludedNo
Universal Or Specific FitSpecific
Fuel TypeGas
Internal Or External StrainerExternal
Wire Harness IncludedNo
Maximum Pressure73PSI
Delphi is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.
  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
  • Lower amperage draws less load on vehicle's electrical system
  • Part is validated, tested and matched to the right vehicle application
  • Always be sure to check and clean fuel tank to avoid unnecessary returns
  • Lower failure rates due to its innovative design and durability
6 Ratings
50% of reviewers recommend this product.
Customer Images
Looking for something specific?
  • Sort By
  • Filter by
6 Reviews

  • Didn't work

    Brandon
    2 years ago
    Verified Purchase
    Sweepstakes Entry
    This fuel pump didn't work in my 2006 Ford mustang gt. As soon as I place it in my car. It made the fuel light go from half full to zero it had bad electric issues and I was not satisfied
    Purchased for: 2006 ford mustang

    Helpful?

  • Not bad, but disappointed

    Samuel
    2 years ago
    Sweepstakes Entry
    This was a more affordable part; However, unfortunately, more affordable does not always guarantee better. I had seen two good reviews and two bad, the bad saying that the fuel level sensor did not work and was not compatible. I decided to give Delphi the benefit of the doubt since there were not many reviews. Disappointingly, after 4 days of driving with the new fuel pump, it seems the fuel level sensor has failed after reaching half of a tank. Takeaway: Don’t go for cheaper, check reviews, get good parts.
    Purchased for: 2006 Mustang V6

    Helpful?

  • Factory fit!

    David
    4 years ago
    Verified Purchase
    Recommended
    Sweepstakes Entry
    Only needed to purchase lock ring and O ring for install. Perfect fit and operates like factory.
    Purchased for: 2015 GMC Sierra 2500hd

    Helpful?

  • Garbage

    Stephen
    5 years ago
    Sweepstakes Entry
    I've had nothing but problems with my car since putting the fuel pump in. The fuel level first telling me I'm out of gas with anything below a half a tank and also the fuel pump giving problems when shifting gears. My tuner who specializes in 2005-2010 mustang (lito) is the one who finally figured out this problem. He's literally spent a month trying to get this pump to work correctly. My old fuel pump never gave me a problem until it died. I paid top dollar so I wouldn't have these kind of issues with the pump. Buy a different brand!!!
    Purchased for: 2006 Mustang GT

    Helpful?

  • Great pump! Bad fuel level sensor

    JonT
    5 years ago
    Verified Purchase
    Recommended
    Sweepstakes Entry
    I have a 2005 v6 Mustang and the pump fit great and installed without issue. Full power was restored. However, I can only give three stars because the fuel level sensor on the pump is not compatible with my vehicle. I have driven the vehicle over 400 miles since the fuel pump replacement and I am receiving a DTE FLI DATA ERROR along with a check engine light. Research shows the fuel level sensor is not sending the proper voltage to reflect the amount of fuel in the tank. So I must replace the sensor. I can recommend this product only under the condition you have the time, patience, and extra money to replace the fuel level sensor if necessary.
    Purchased for: 2005 v6 Mustang

    Helpful?

  • Replacement for OE

    Edwin Z
    5 years ago
    Verified Purchase
    Recommended
    Sweepstakes Entry
    Delphi has always been a decent replacement. This fit my expectations, so far so good, let’s see how long it lasts.
    Purchased for: 07 Mustang

    Helpful?
