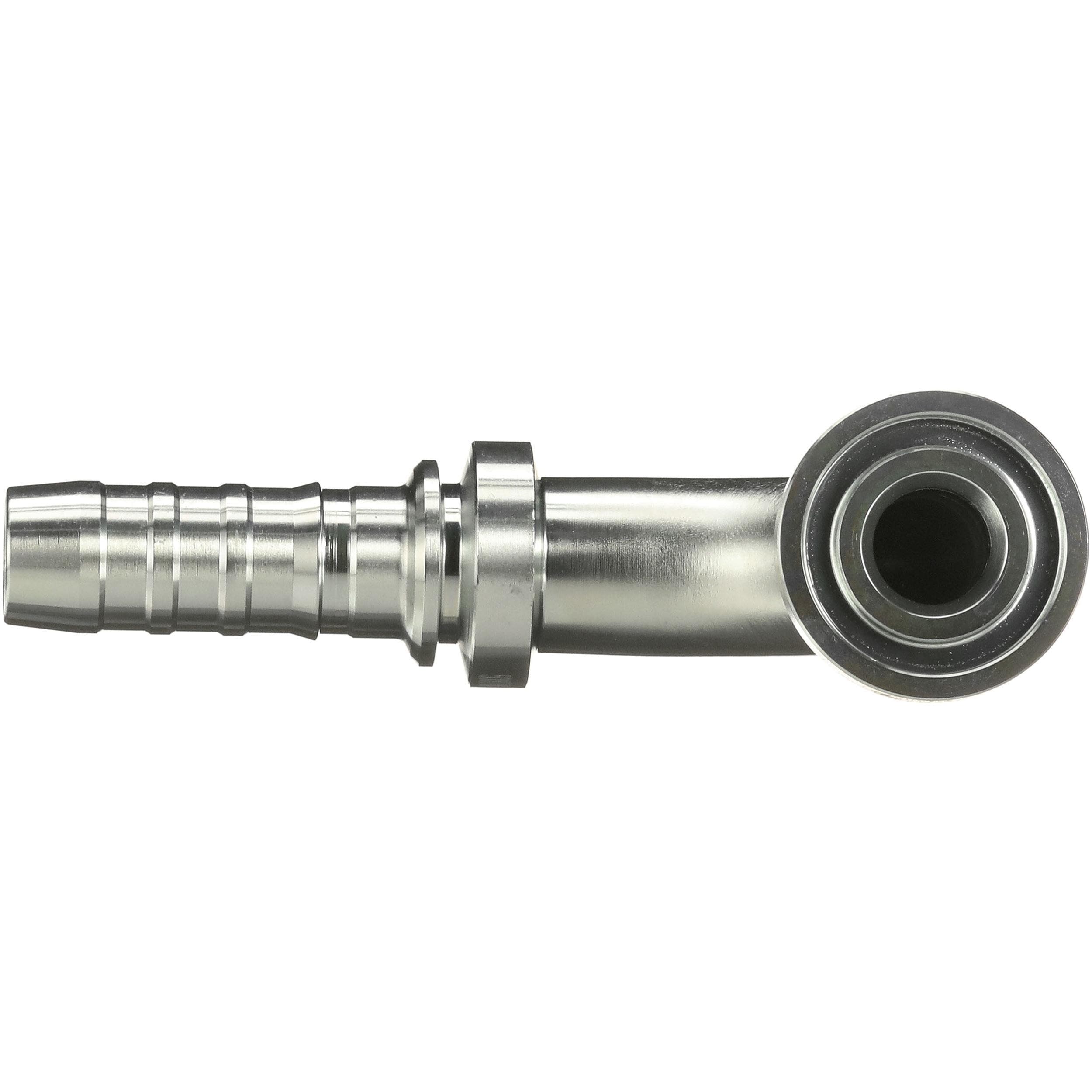

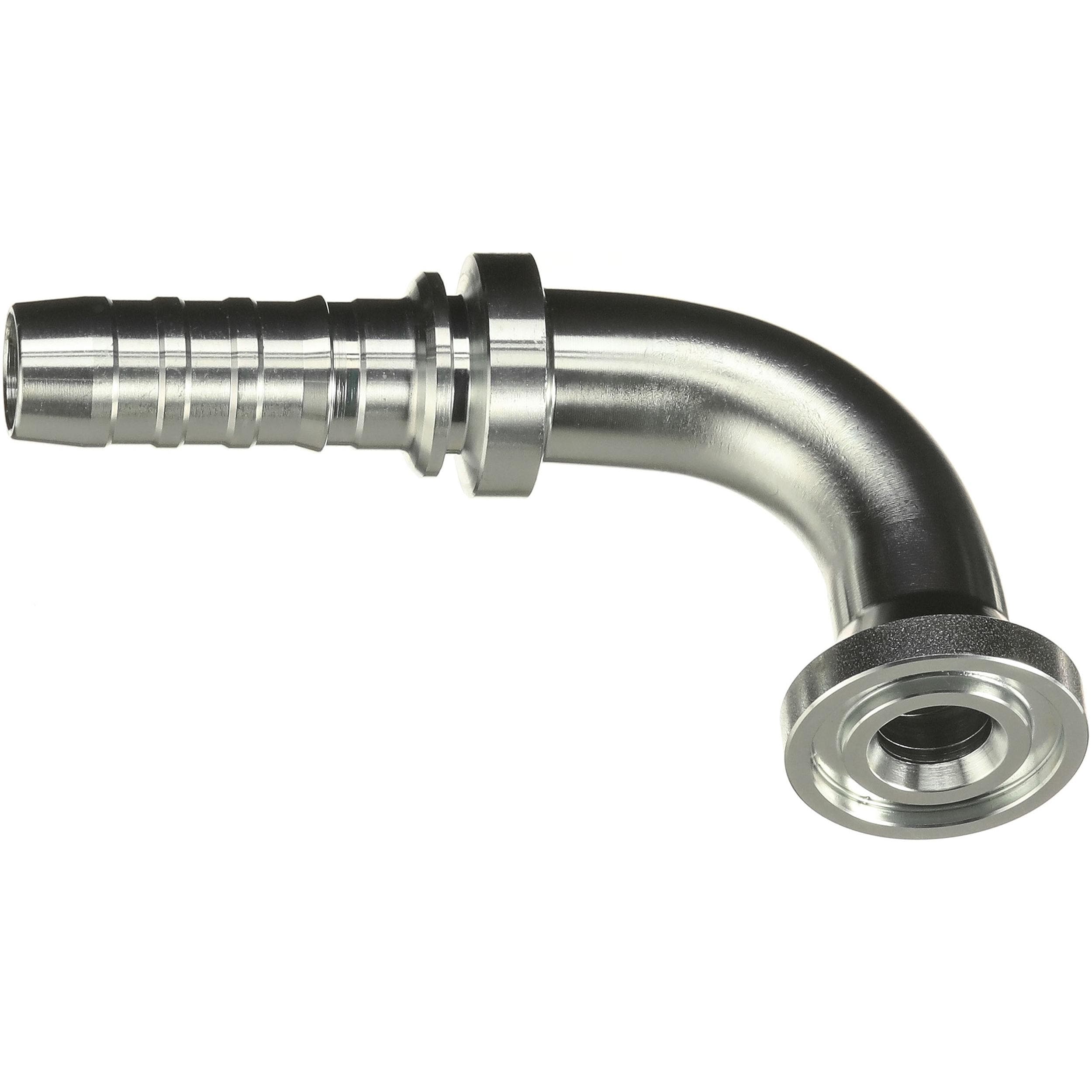

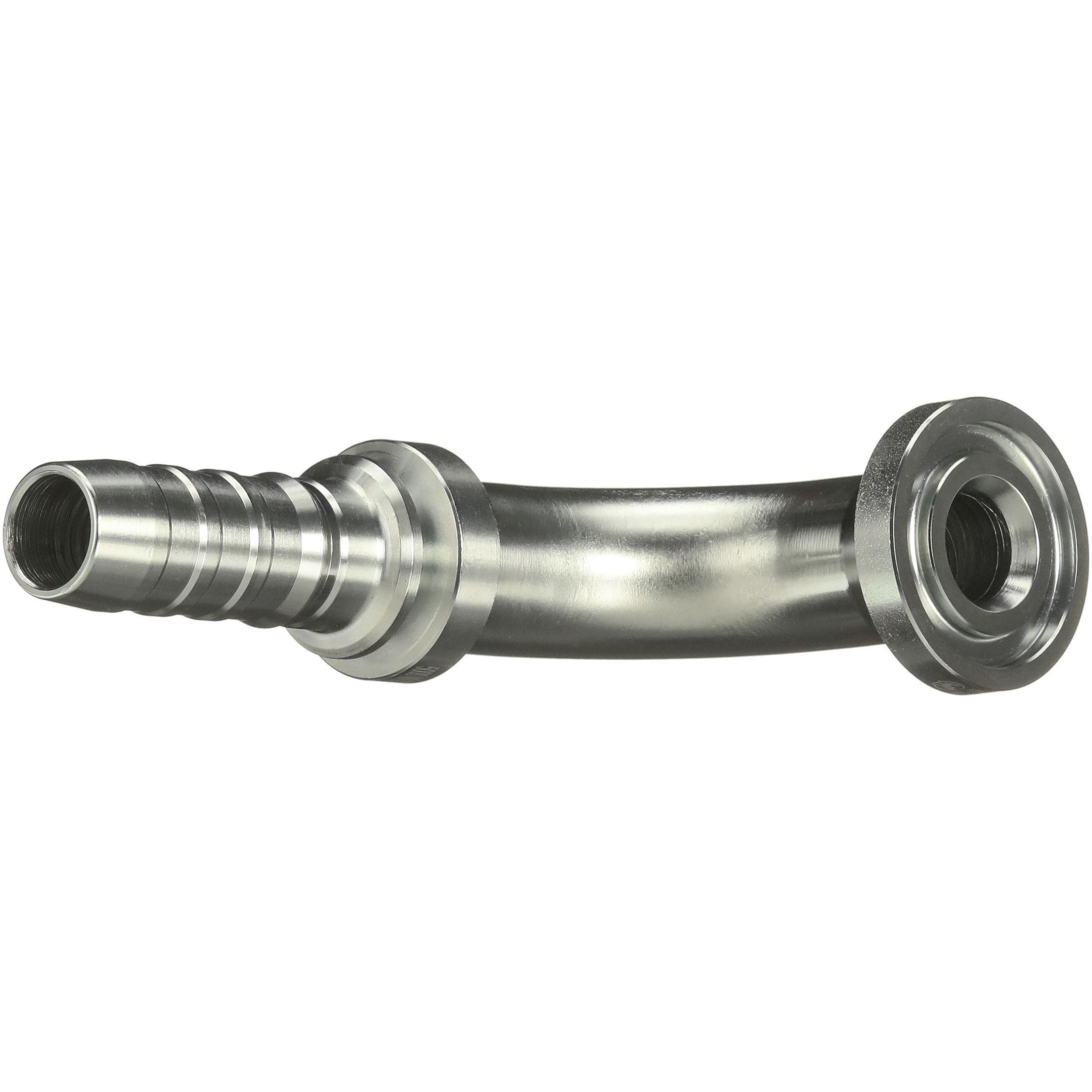

Gates GlobalSpiral Hydraulic Coupling / Adapter G20315-1620

Shop All Gates
Part #
G20315-1620
The price of this item is: 151 dollars and 99 cents
quantity
Specifications:
View All
Warranty:
1 Year Warranty
Part Number:
G20315-1620
SKU Number:
1477918
Inside Diameter:
1in
Warranty
Part #G20315-1620
SKU #1477918
Inside Diameter1in

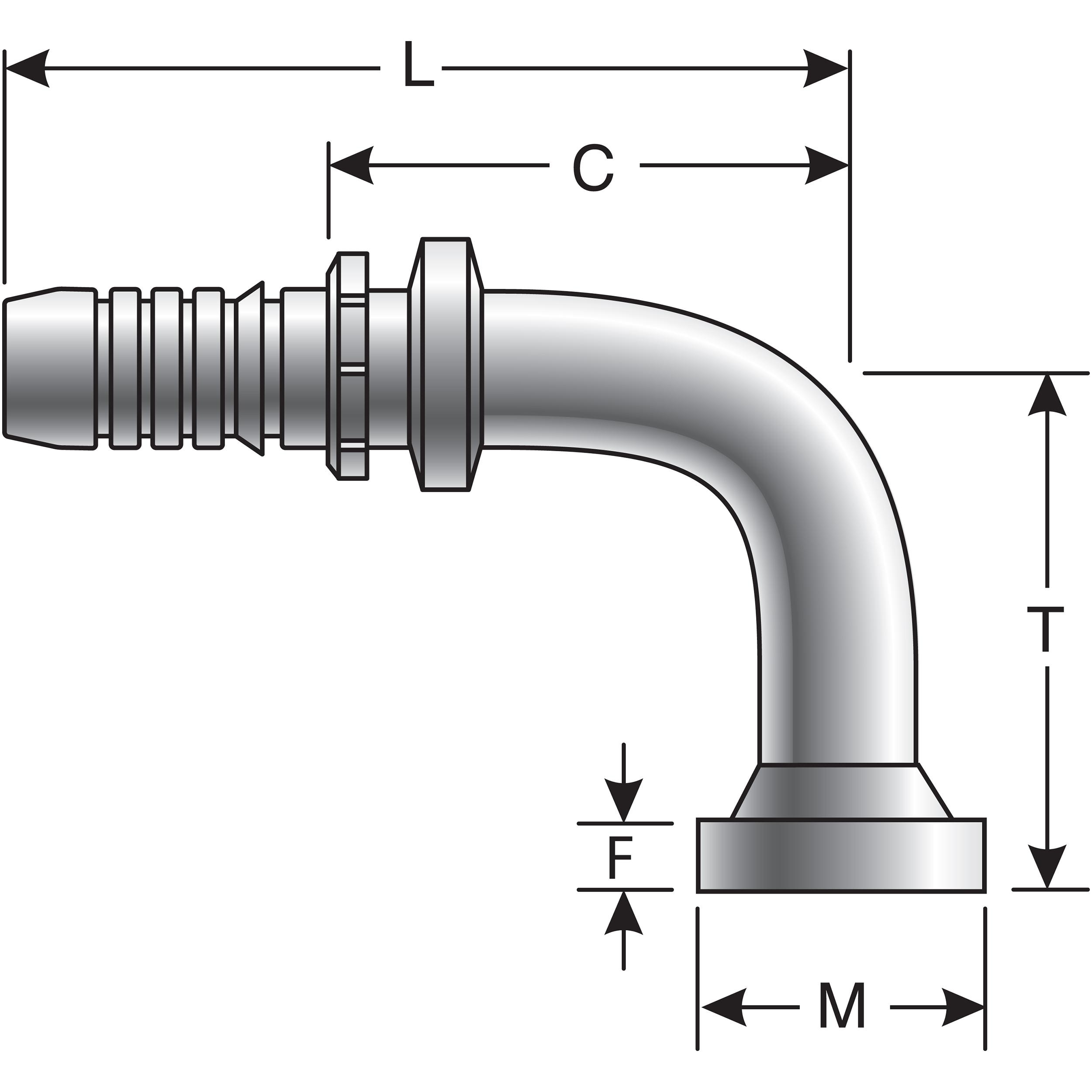

Cut-Off Length76.8mm
Drop Length89.9mm
Maximum Working Pressure4000PSI
Length134.1mm
Hydraulic Hose RecommendationAll Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
Flange Thickness8.1mm
Flange Diameter50.8mm
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. -8FL, -12FL, -16FL maximum working pressure is 5000 psi; -20FL maximum working pressure is 4000 psi. S, M and L Drops per ISO Final Draft International Standard 12151-3. See Gates accessories for O-rings. MGS Couplings for use with MC4-20 Crimper Only.
  • “Bite-the-wire” crimp for improved coupling retention
  • Tested to an industry-leading 1,000,000 impulse cycles
  • +250˚F temperature capability for longer assembly life
  • Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
