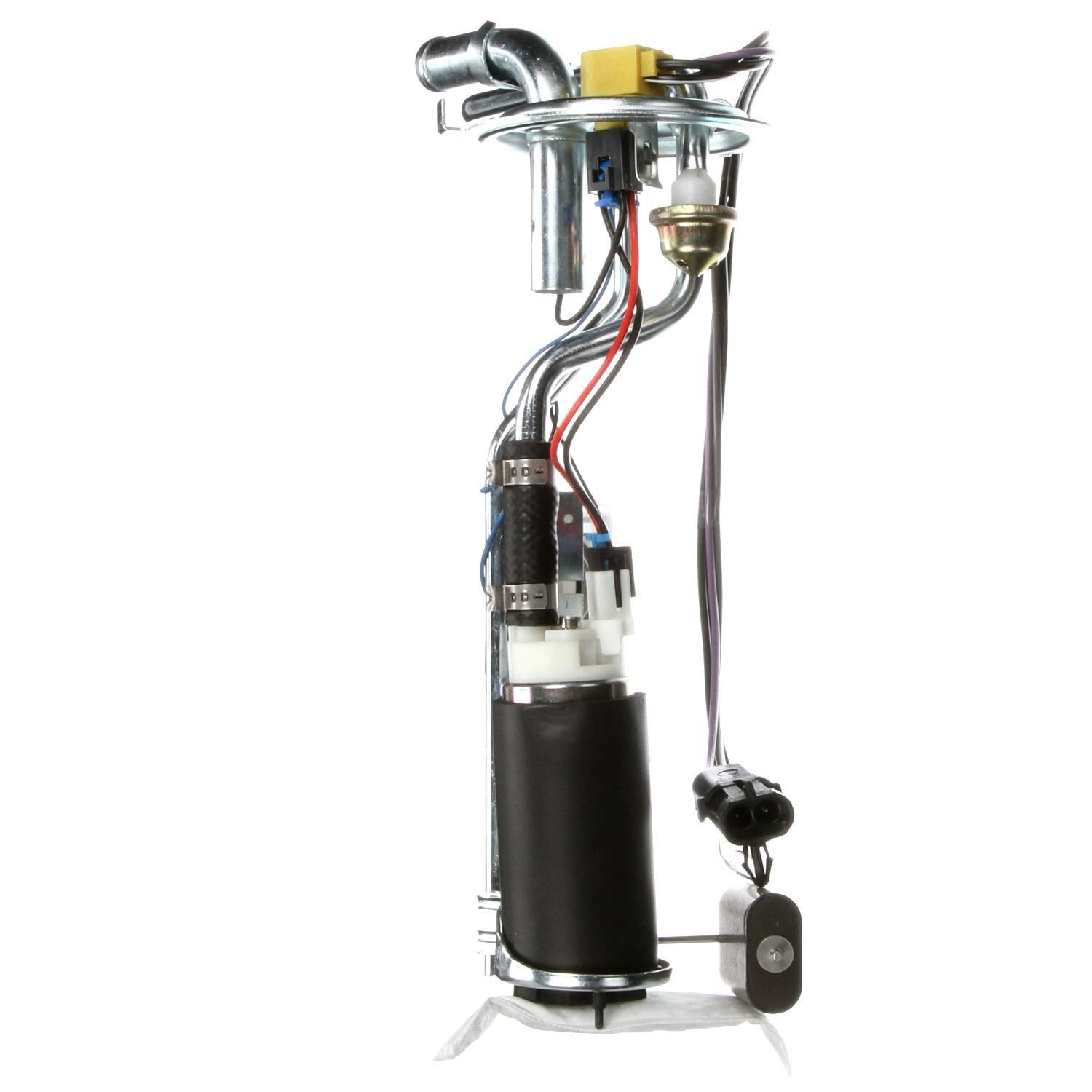

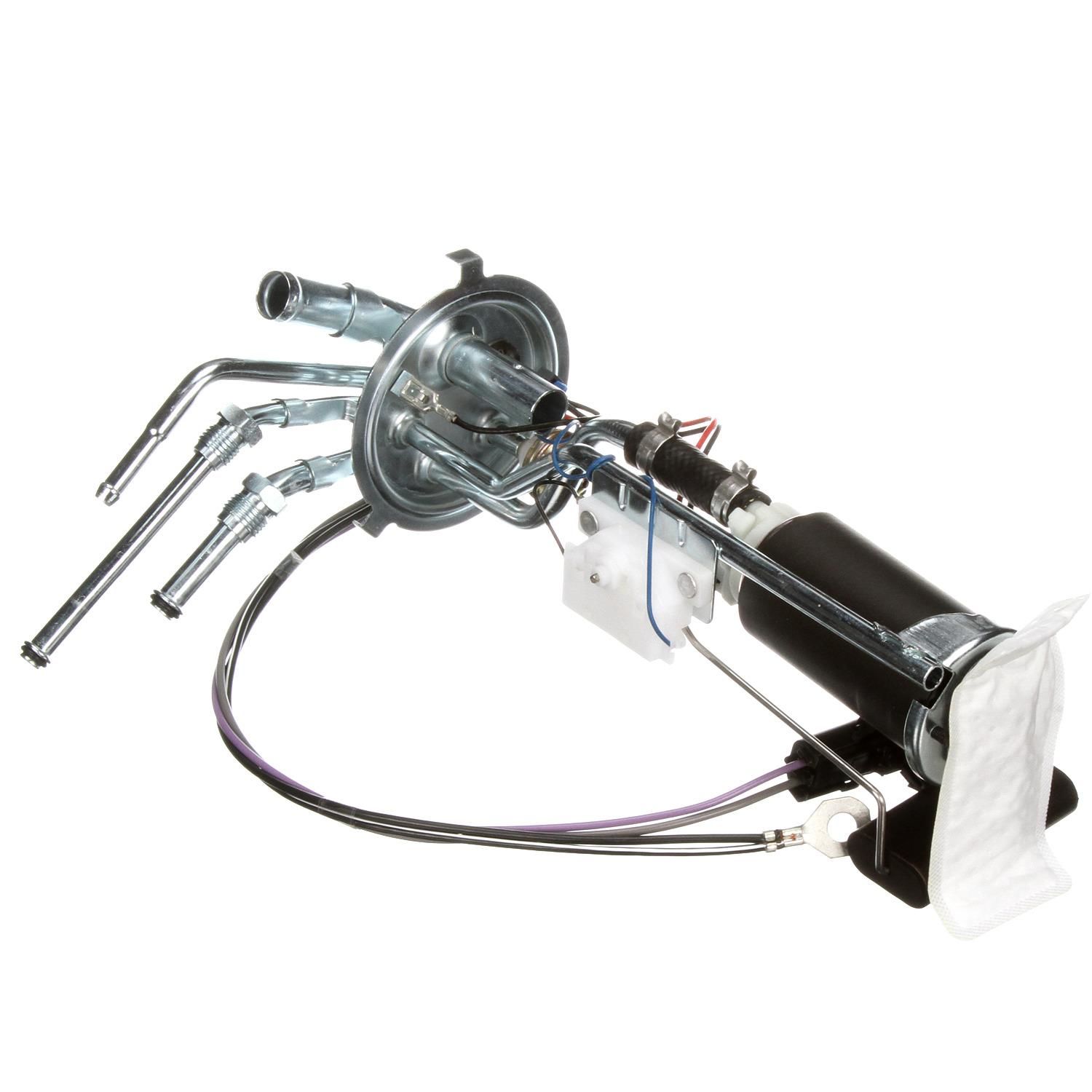

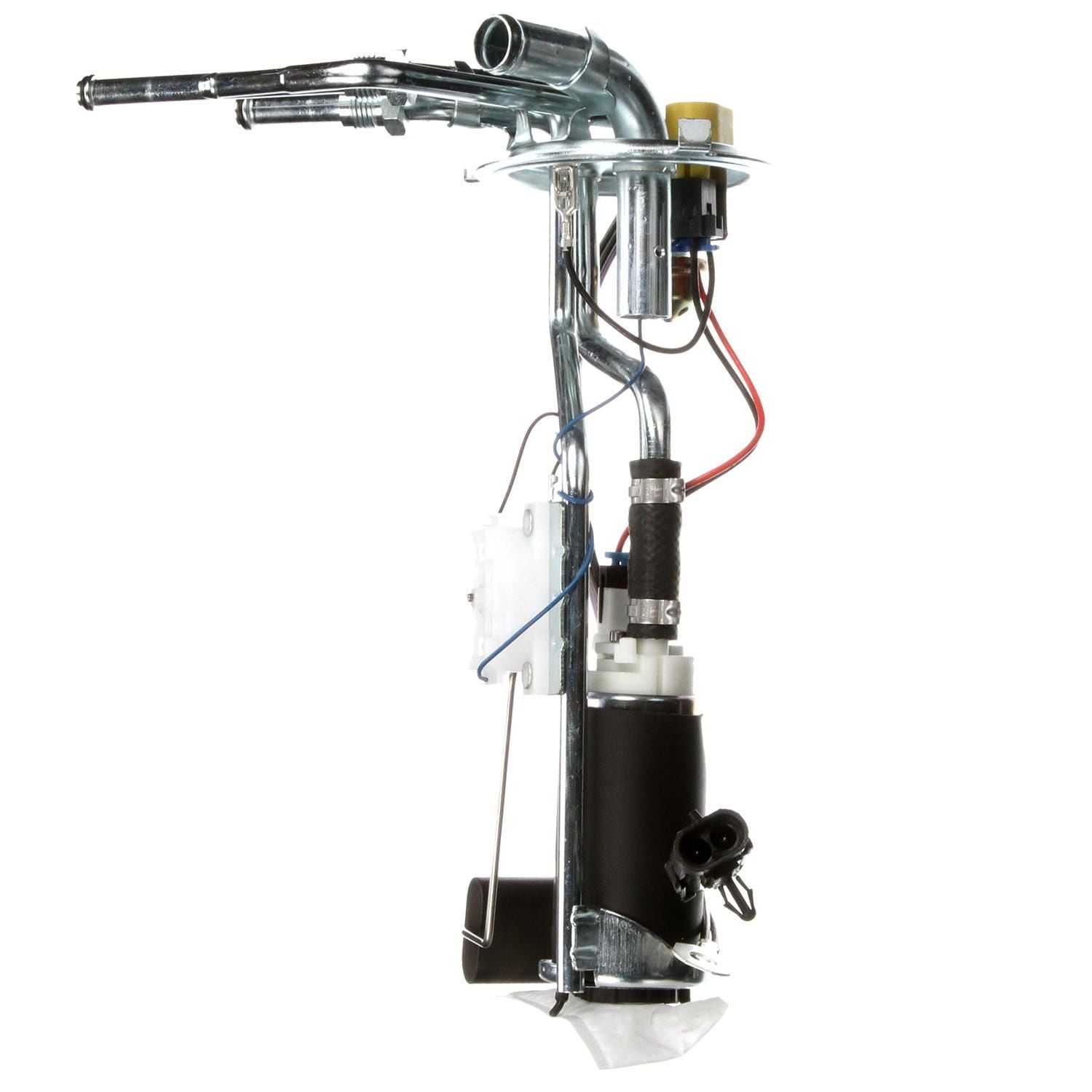

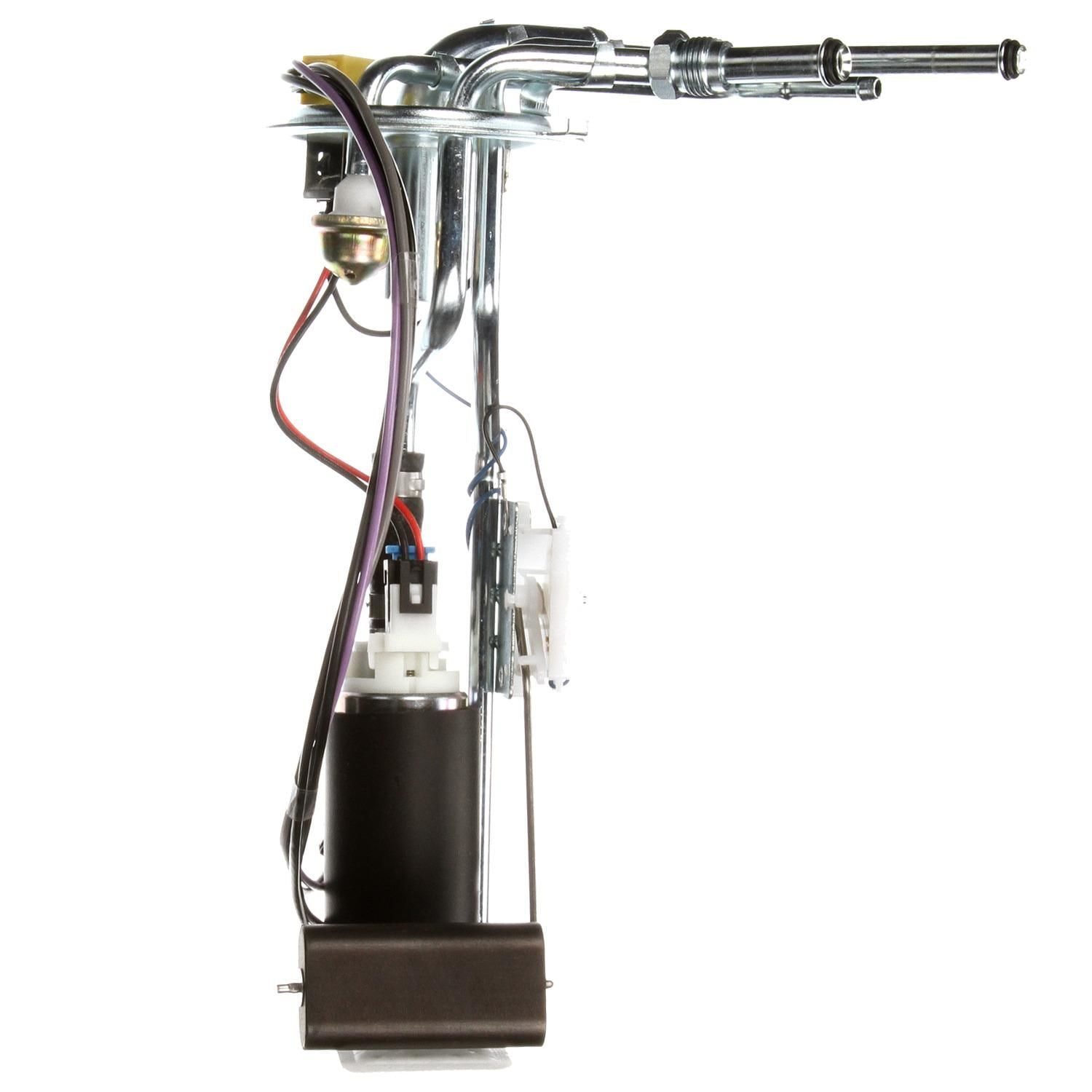

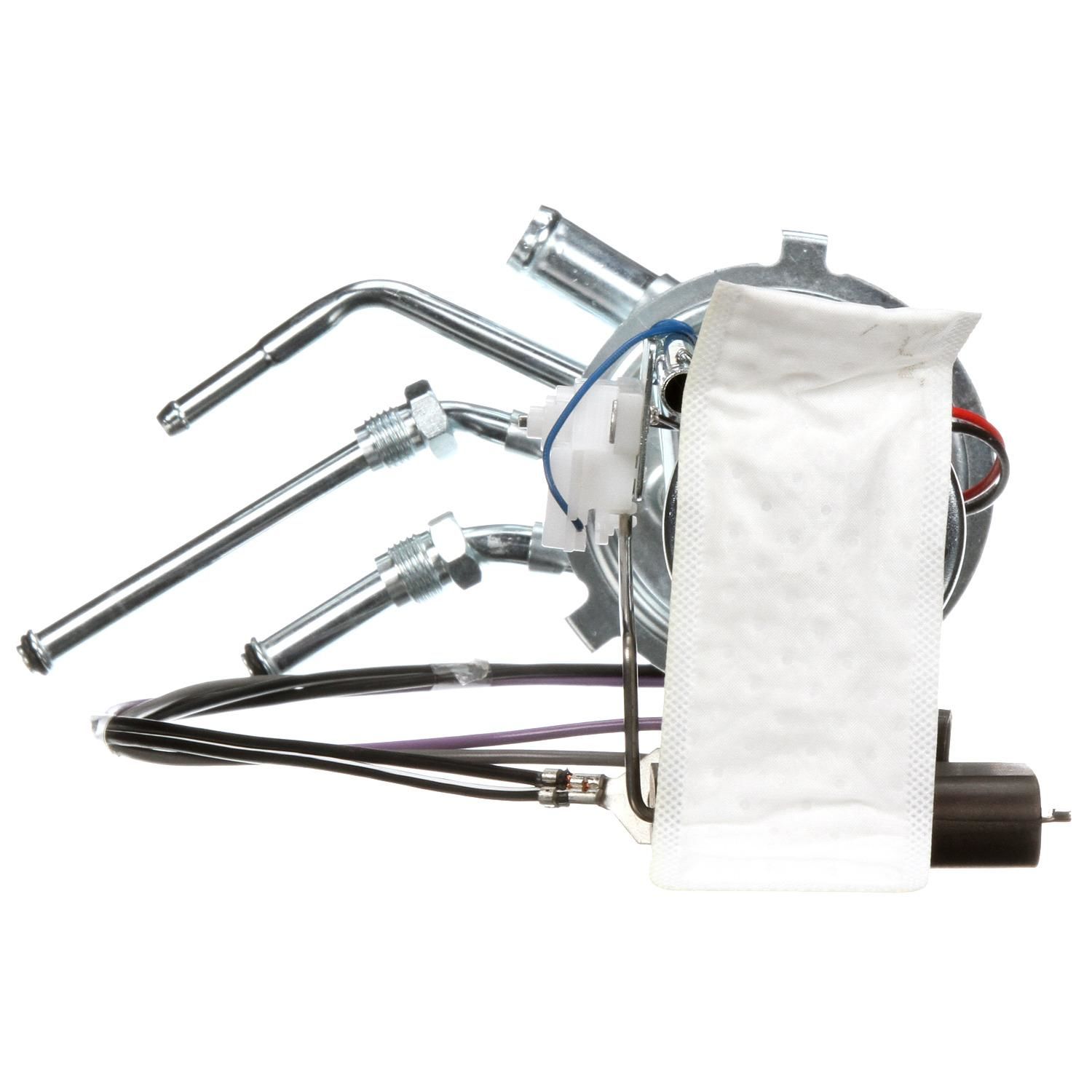

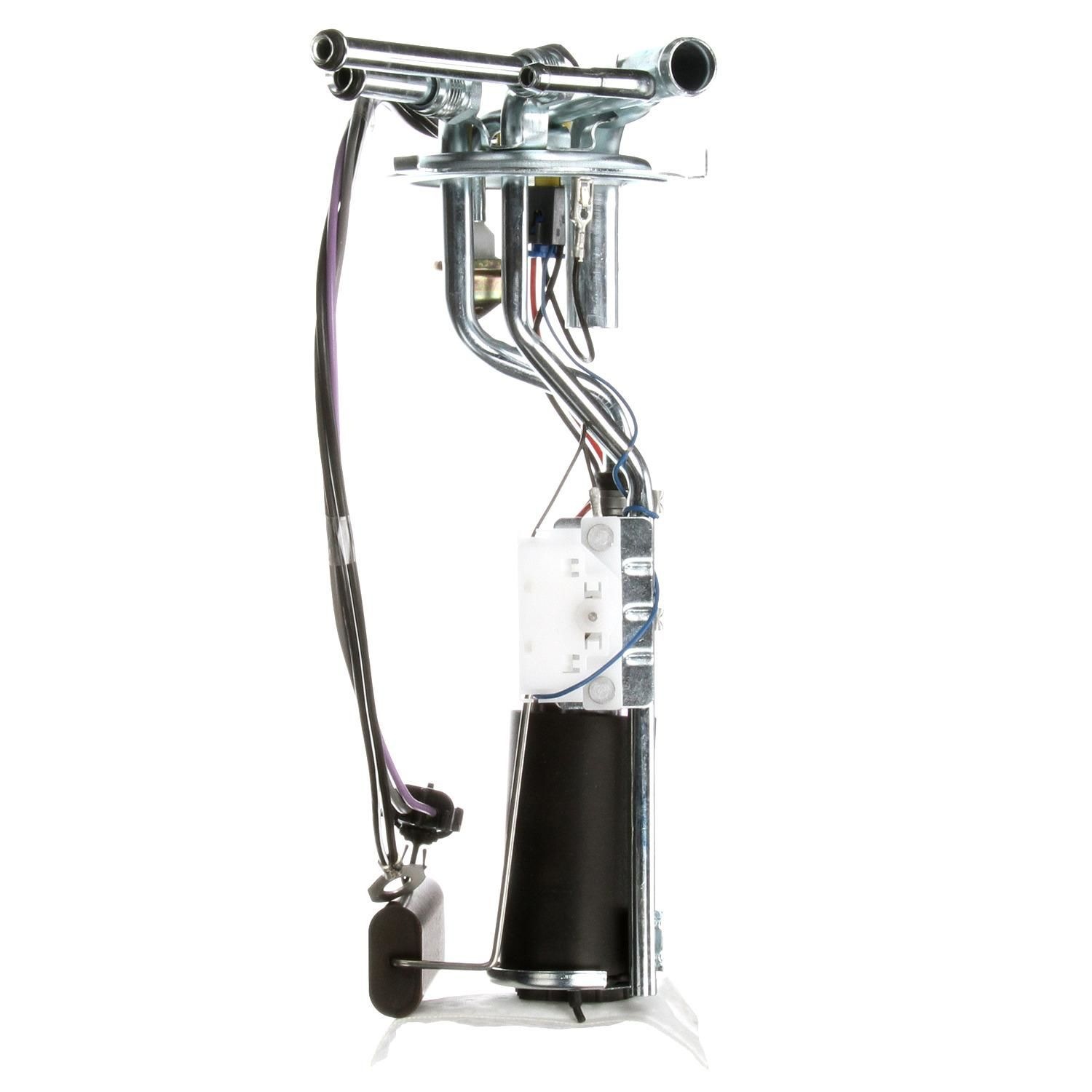

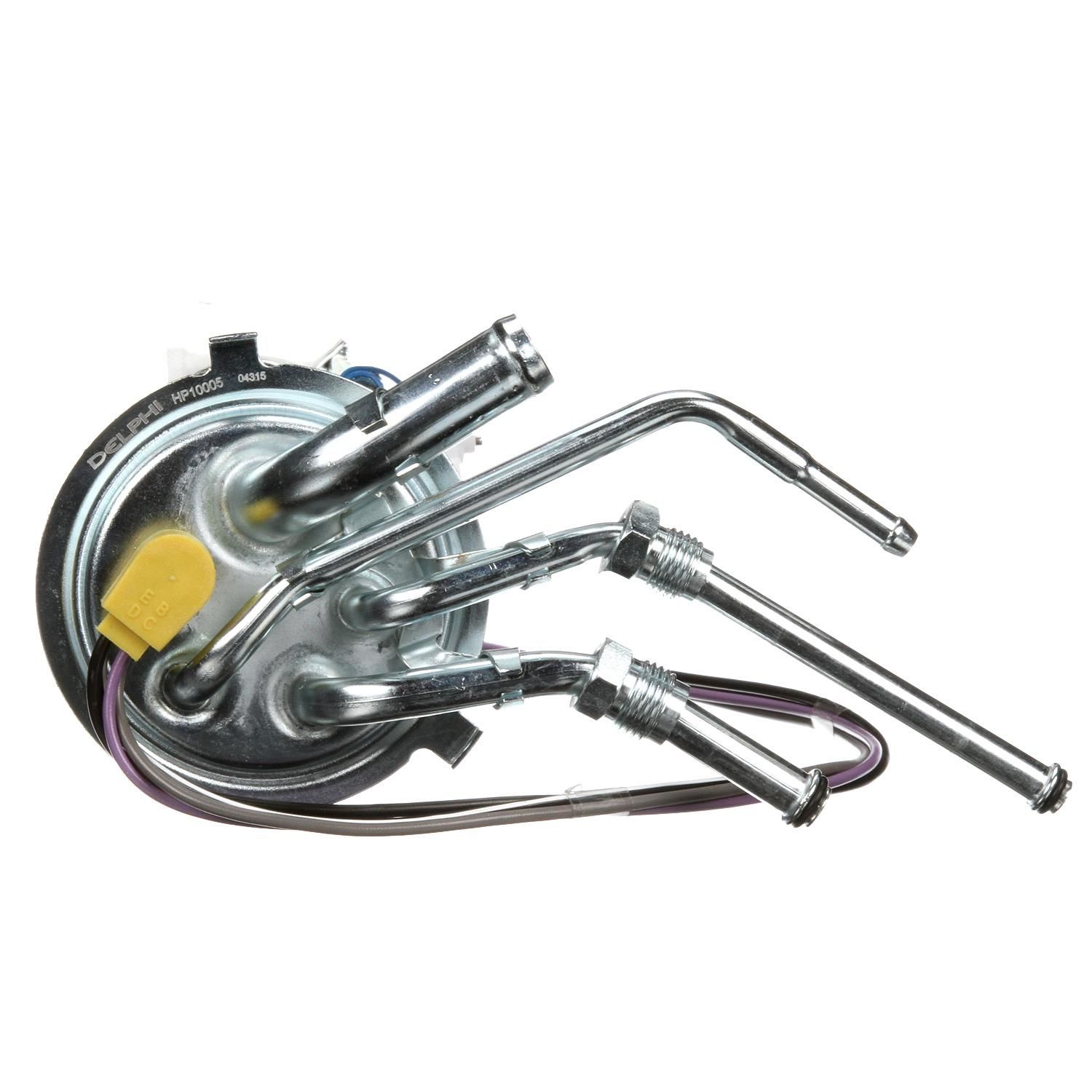

Delphi Fuel Pump DHP10005

Shop All Delphi
Delphi771688
Part # DHP10005
SKU # 771688
Total price is: 271 dollars and 99 cents.
In stock | Estimated delivery June 30

Warranty
Part #DHP10005
SKU #771688
Weight2.3lbs
Average Flow Rating26.0gph
Outlet Quantity4
Grade TypePremium
Terminal Quantity2
Outlet Outside Diameter0.375in

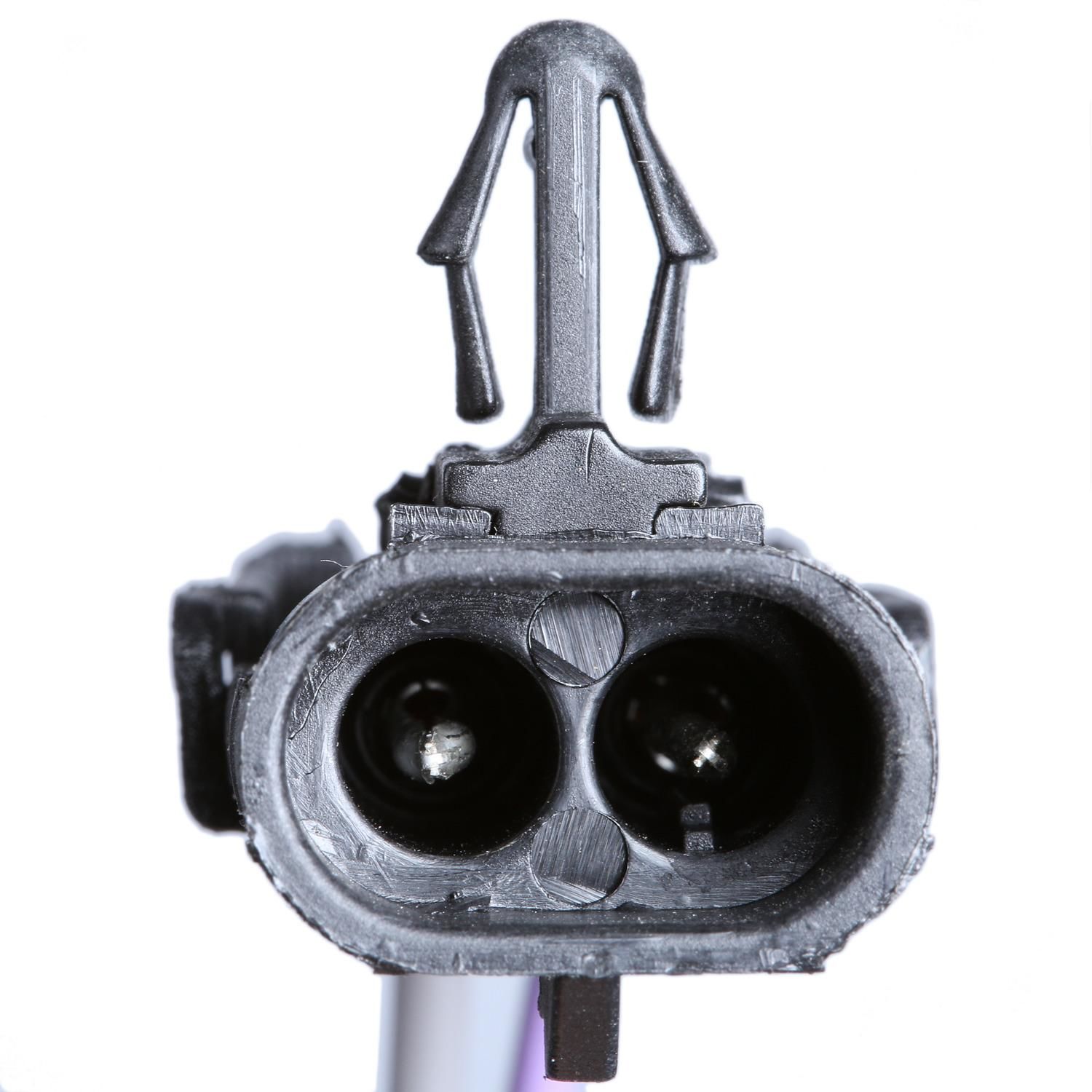

Connector GenderMale
Connector ShapeRectangle
Terminal GenderFemale
Lock Ring IncludedYes
Inlet Quantity1
Voltage13.5VDC
Fuel Sending Unit IncludedYes
Negative GroundNo
Terminal TypePin
Fuel Pump IncludedYes
Resistance Ohms Empty1.0Ohms
Resistance Ohms Full90.0Ohms
In Tank or ExternalIn Tank
Pump DesignTurbine
Strainer IncludedYes
Pump TypeElectric
Mounting Hardware IncludedNo
Gasket Or Seal MaterialNitrile Rubber
MaterialMetal
Minimum Pressure12PSI
Outlet TypeQuick Connect
Gasket Or Seal IncludedYes
Average Current Draw4.0A
Inlet TypeStrainer
Fuel Tank Pressure Sensor IncludedNo
Universal Or Specific FitSpecific
Fuel TypeGas
Internal Or External StrainerExternal
Maximum Pressure29.0PSI

Delphi is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.
  • checkmark
    Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • checkmark
    Delphi pumps are designed to operate under extreme temperatures with quick engine starts
  • checkmark
    Metal tubes in Delphi hangers are routed so as to not contact the tank at any point eliminating noise and vibration during vehicle operation
  • checkmark
    Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
  • checkmark
    Restores fast pressure performance and system integrity, translating to better pumping through less energy
  • checkmark
    Lower failure rates due to its innovative design and durability
  • checkmark
    Part is validated, tested and matched to the right vehicle application
  • checkmark
    Lower amperage draws less load on vehicle's electrical system
  • checkmark
    Always be sure to check and clean fuel tank to avoid unnecessary returns
