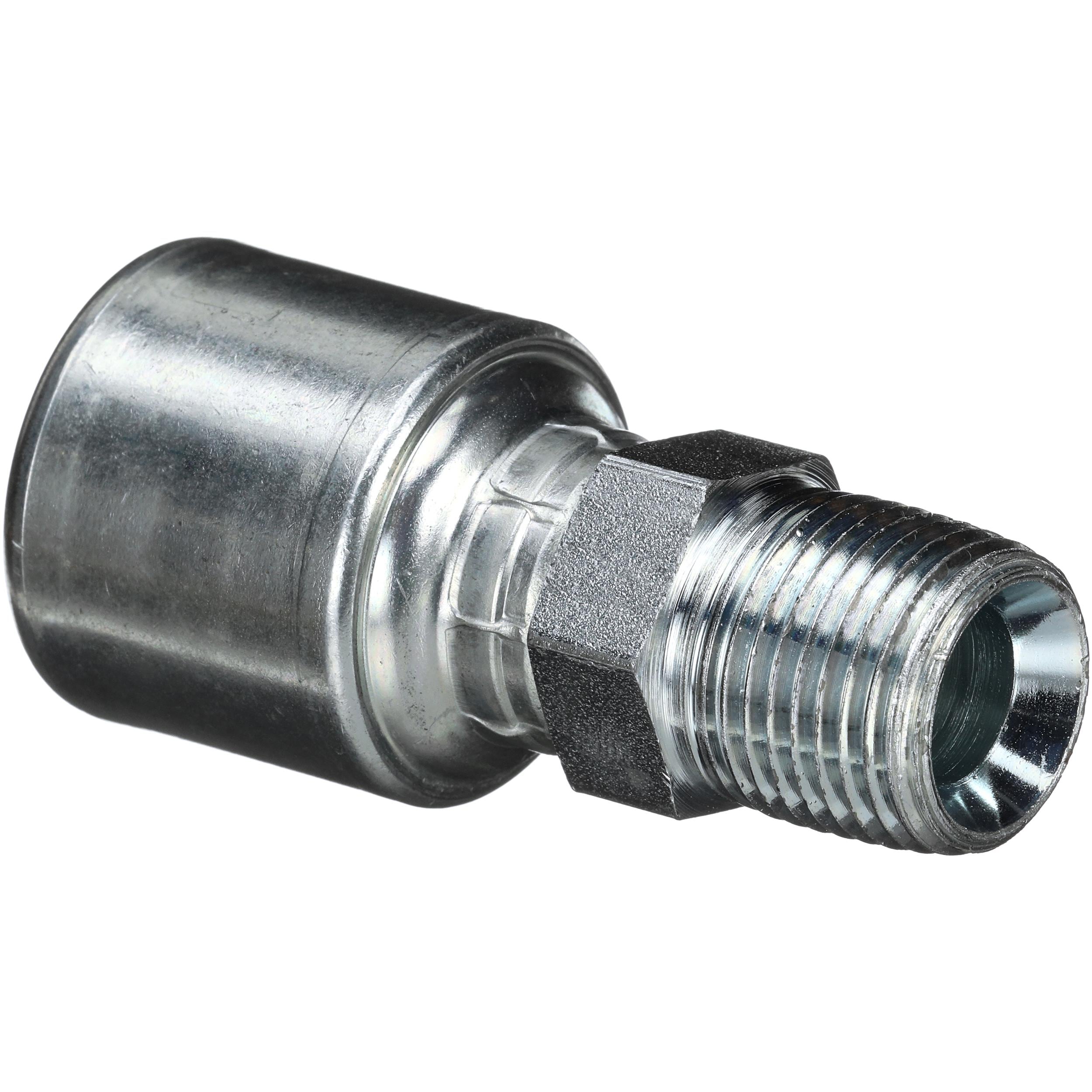

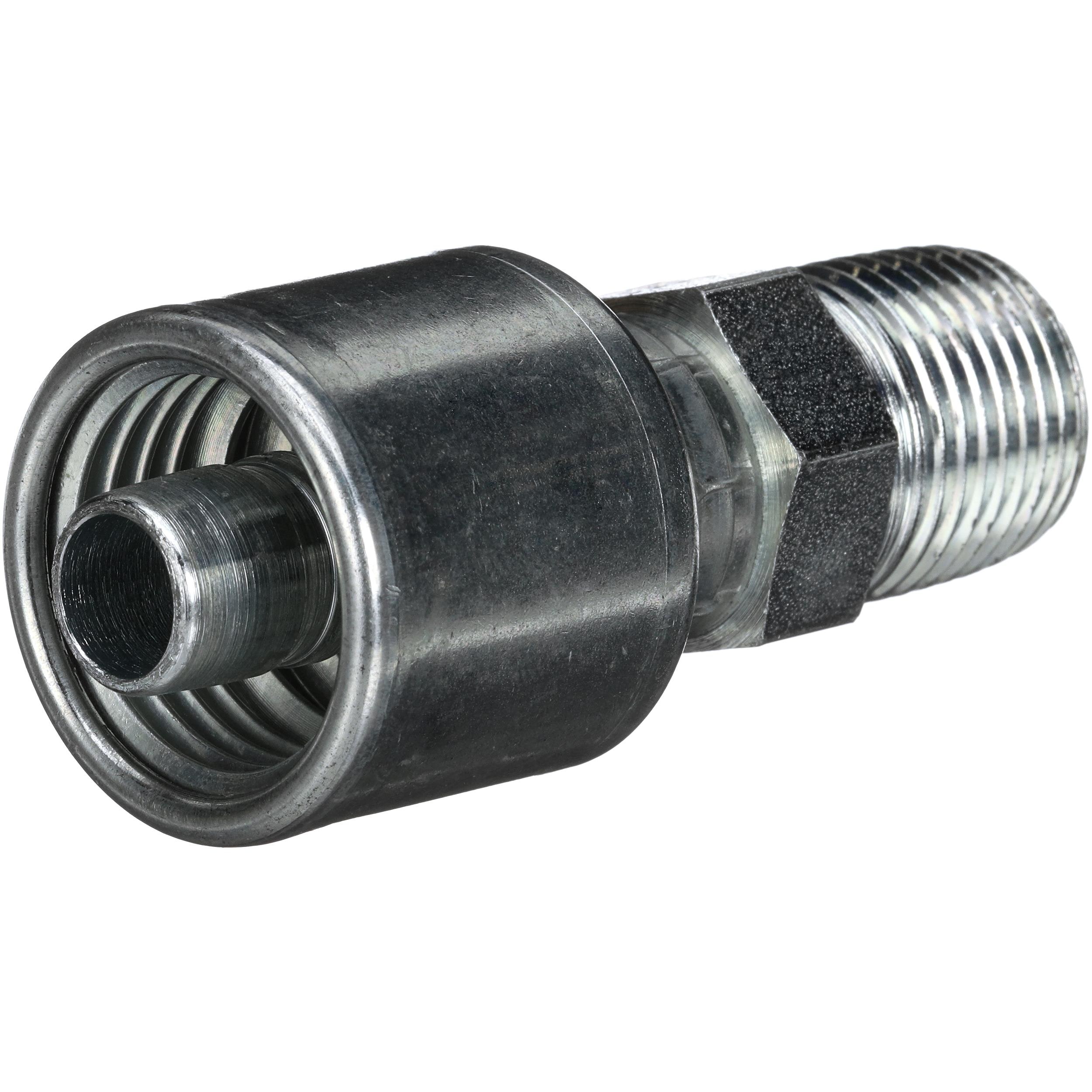

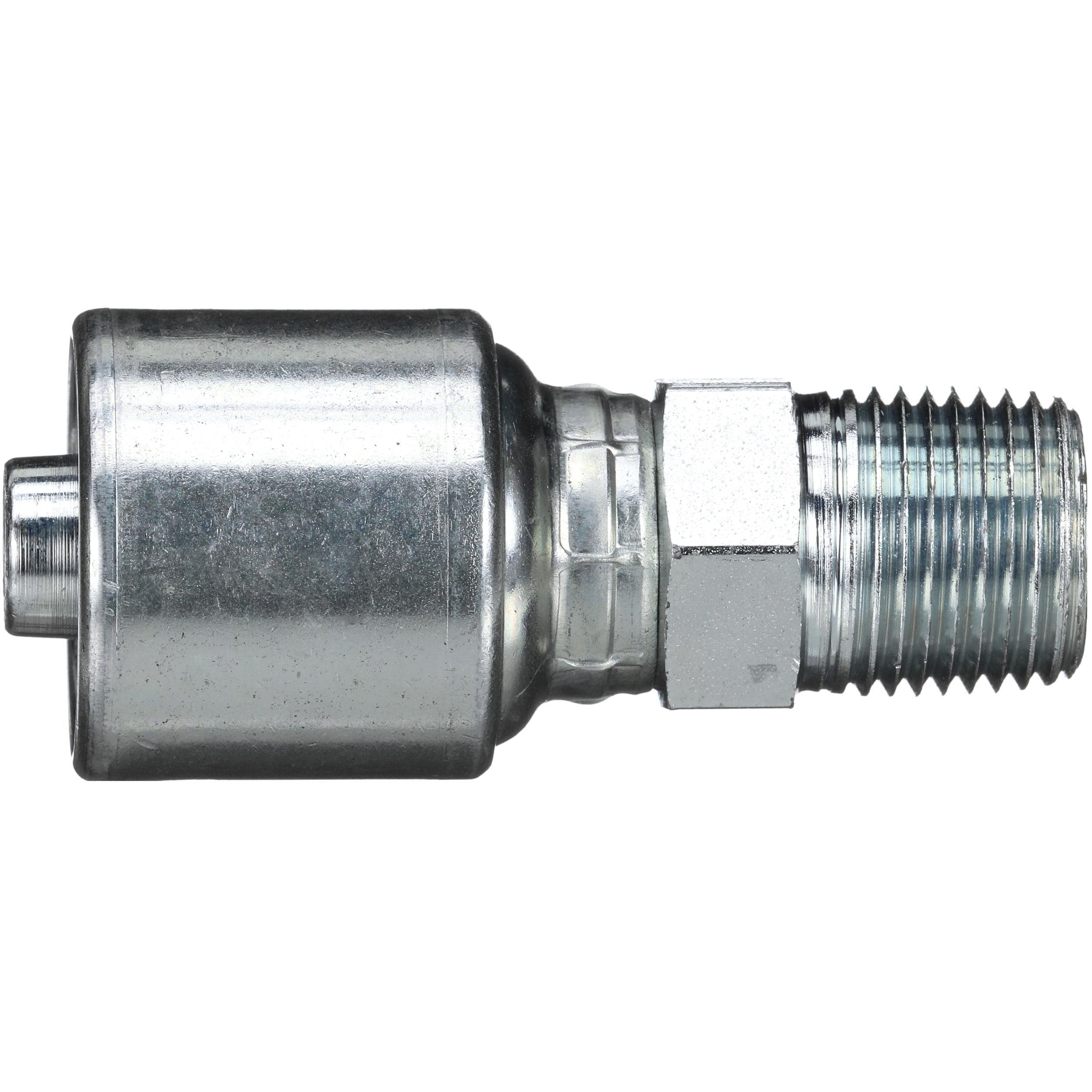

Gates MegaCrimp Hydraulic Coupling / Adapter G25100-0808

Shop All Gates
Part #
G25100-0808
The price of this item is: 22 dollars and 99 cents
quantity
Specifications:
View All
Warranty:
1 Year Warranty
Part Number:
G25100-0808
SKU Number:
1462128
Hydraulic Hose Recommendation:
Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Warranty
Part #G25100-0808
SKU #1462128
Hydraulic Hose RecommendationCan Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Nose Seat TypeInverted
Seal TypeThread Interference/Mated Angle
Inside Diameter.5in

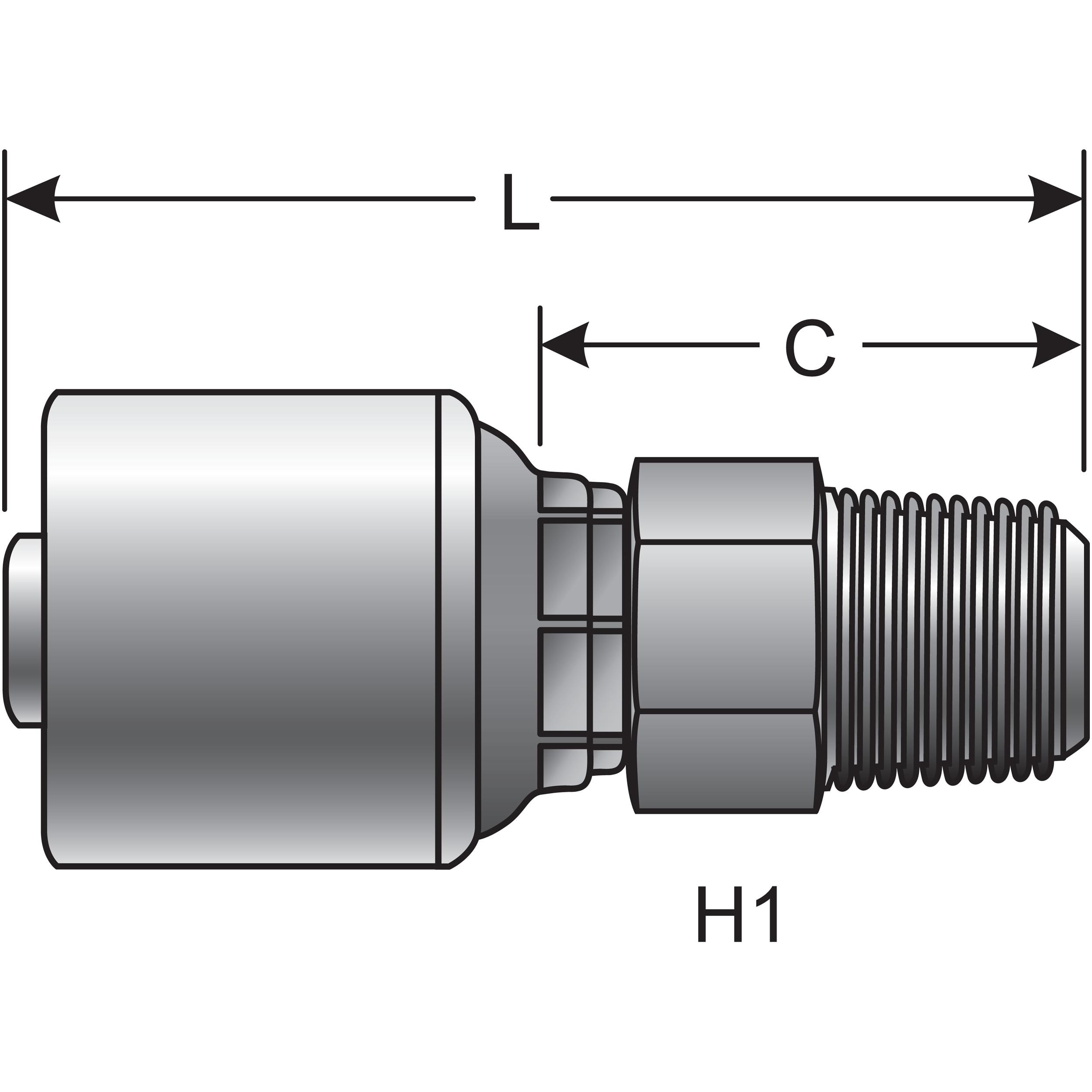

Cut-Off Length35.5mm
Bent Tube AngleStraight
Thread Angle60
Mating Angle30
Stem Hex Size.875in
Length73mm
Thread Size1/2-14
SwivelNo
GenderMale
The patented €œC € insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented €œC € insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert €™s design ensures crimping forces are evenly distributed to form a concentric seal. The €œC € insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
  • Robust “bite-the-wire” crimp
  • Tested to an industry-leading 1 million impulse cycles
  • Simplifies inventory management
  • Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
  • Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
