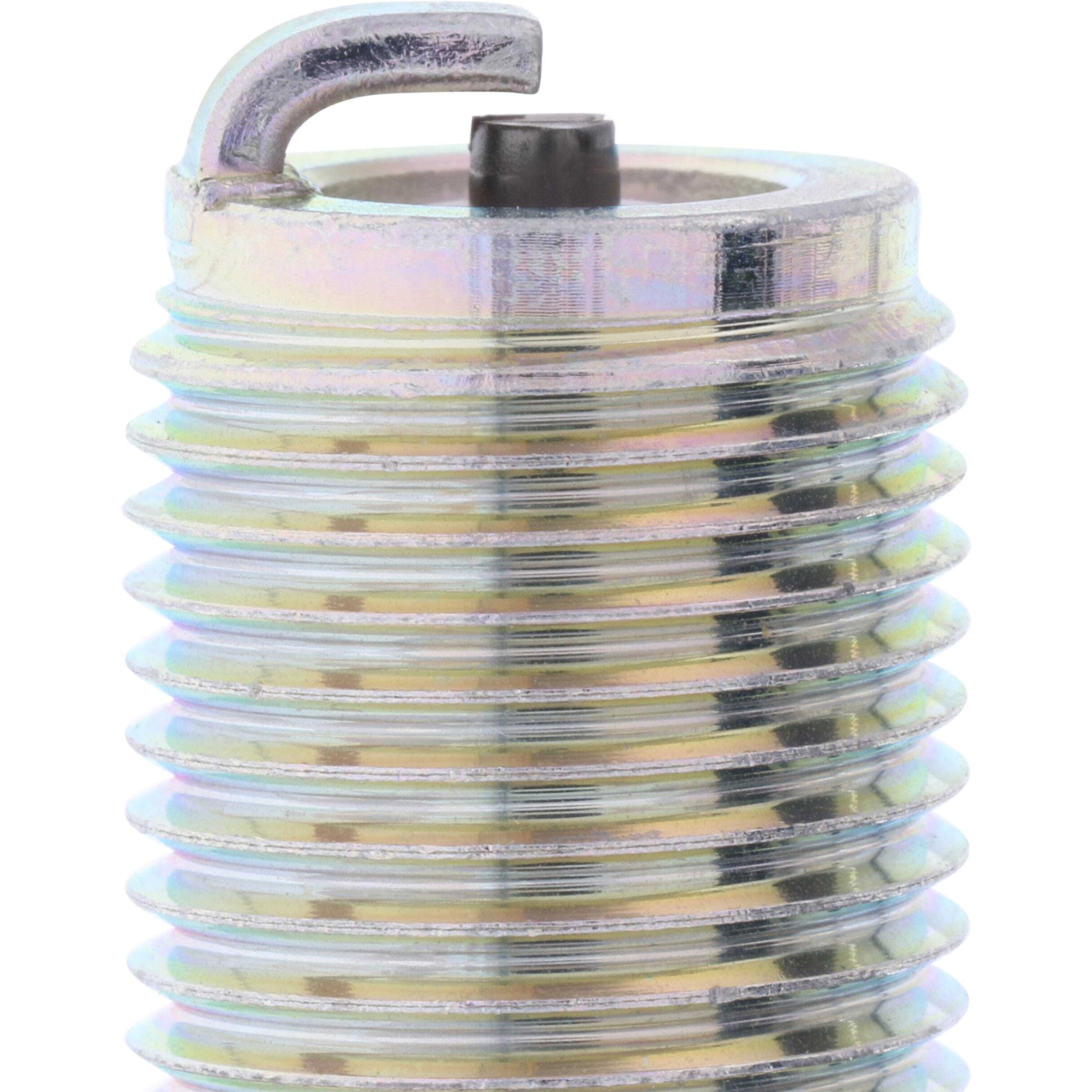

NGK Racing Copper Non-Resistor Spark Plug 5820
Part #
5820
slide 1 of 2
quantity
Specifications:
Part Number:
SKU Number:
Resistor Type:
Center Electrode Tip Material:
| Part # | 5820 |
|---|---|
| SKU # | 88306 |
| Resistor Type | No |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | 0.5mm |
| Insulator Material | Ceramic |
| Center Electrode Core Material | Copper |
| Grade Type | Performance |
| Skirt | No |
| Resistance | 0.0Ohms |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Skirt Length | 0.0mm |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Washer Included | Yes |
| Ground Electrode Tip Material | Nickel |
| Seat Type | Flat |
| Reach | 19.0mm |
| Manufacturer Heat Range | 10 |
| Washer Type | Crush |
| Hex Size | 5/8" (16mm) |
| Metal Type | Copper |
| Insulator Height | 50.5mm |
| Ground Electrode Quantity | 1 |
| Center Electrode Design | Standard |
| Thread Type Standard | Metric |
| Center Electrode Insulator Tip Projection | 1.0mm |
| Thread Size | M14 - 1.25 |
| Center Electrode Projection | Non-Projected |
NGK Racing spark plugs are designed with extreme use in mind and meant to withstand the most grueling racing conditions. NGK Spark Plugs have been powering racing champions and can be found in every racing venue throughout the world. The center electrode of the NGK Racing spark plugs has special configurations and designs to ensure durability and ignitability. NGK Racing plugs bring ultra high performance in a variety of heat ranges. Special configurations are used for a wide variety of racing applications.
- DESIGNED FOR RACING: Conventional nickel alloy center electrode with V-groove provides consistent performance
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- RECOMMENDED USAGE: Racing use only, featuring special configurations and designs to ensure durability and ignitability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Spark Plugs Metal Types
Currently Viewing NGK Racing Copper Non-Resistor Spark Plug 5820 | ||||
|---|---|---|---|---|
Customer Rating | - | (1)Total Reviews | (1)Total Reviews | (5)Total Reviews |
Price | Total price is: 6 dollars and 99 cents. | Total price is: 9 dollars and 49 cents. | Total price is: 33 dollars and 99 cents. | Total price is: 9 dollars and 49 cents. |
Metal Type | Copper | Copper | Iridium | Copper |
