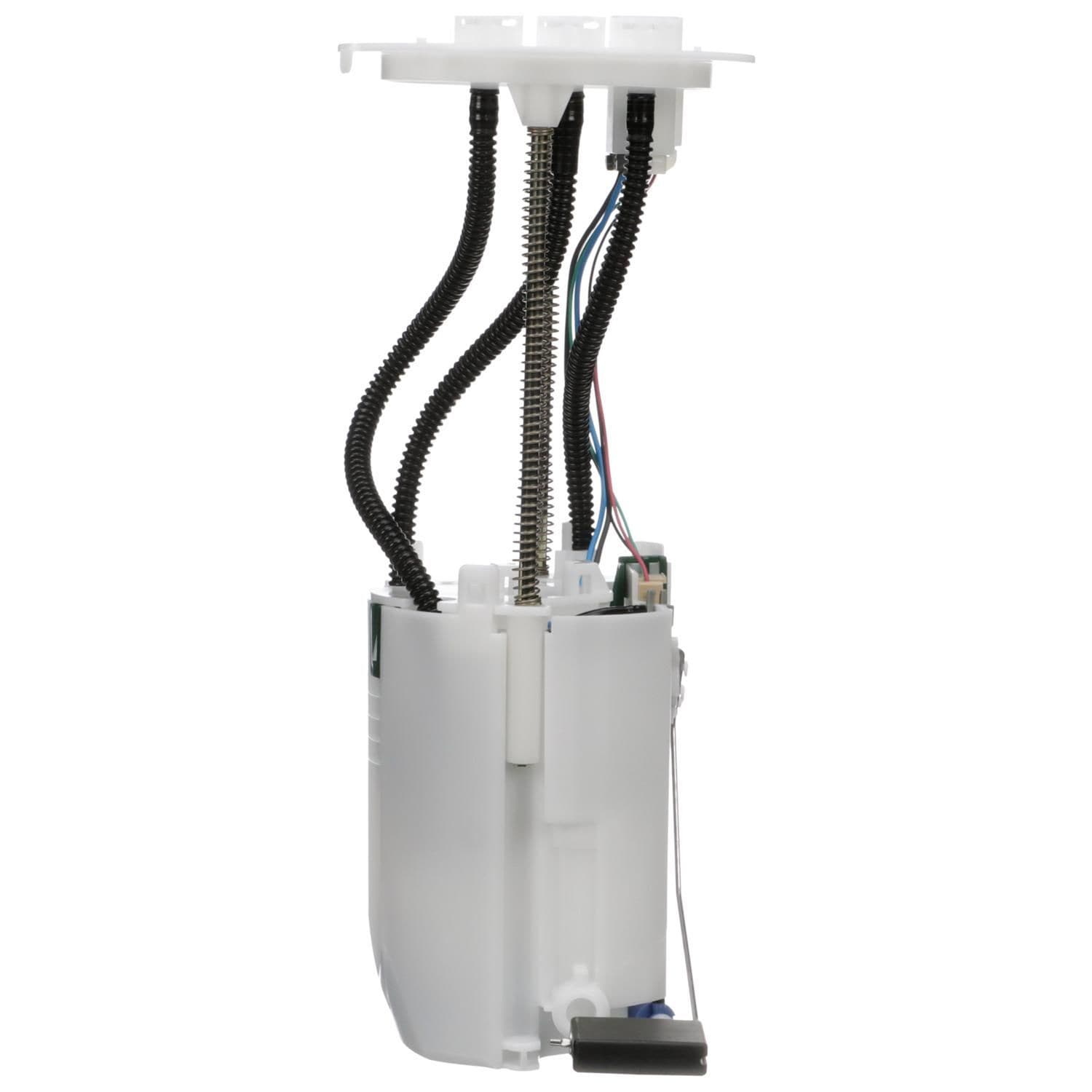

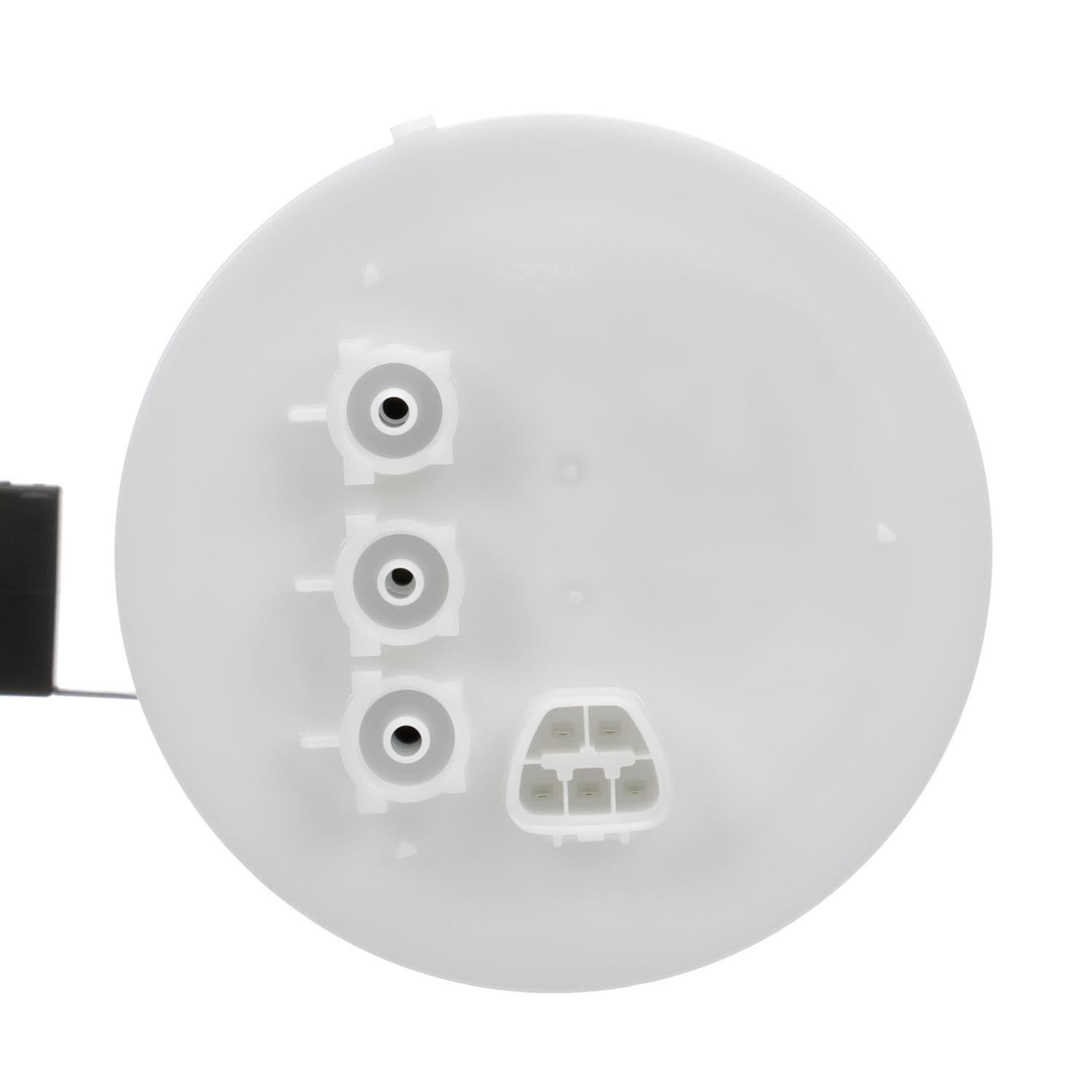

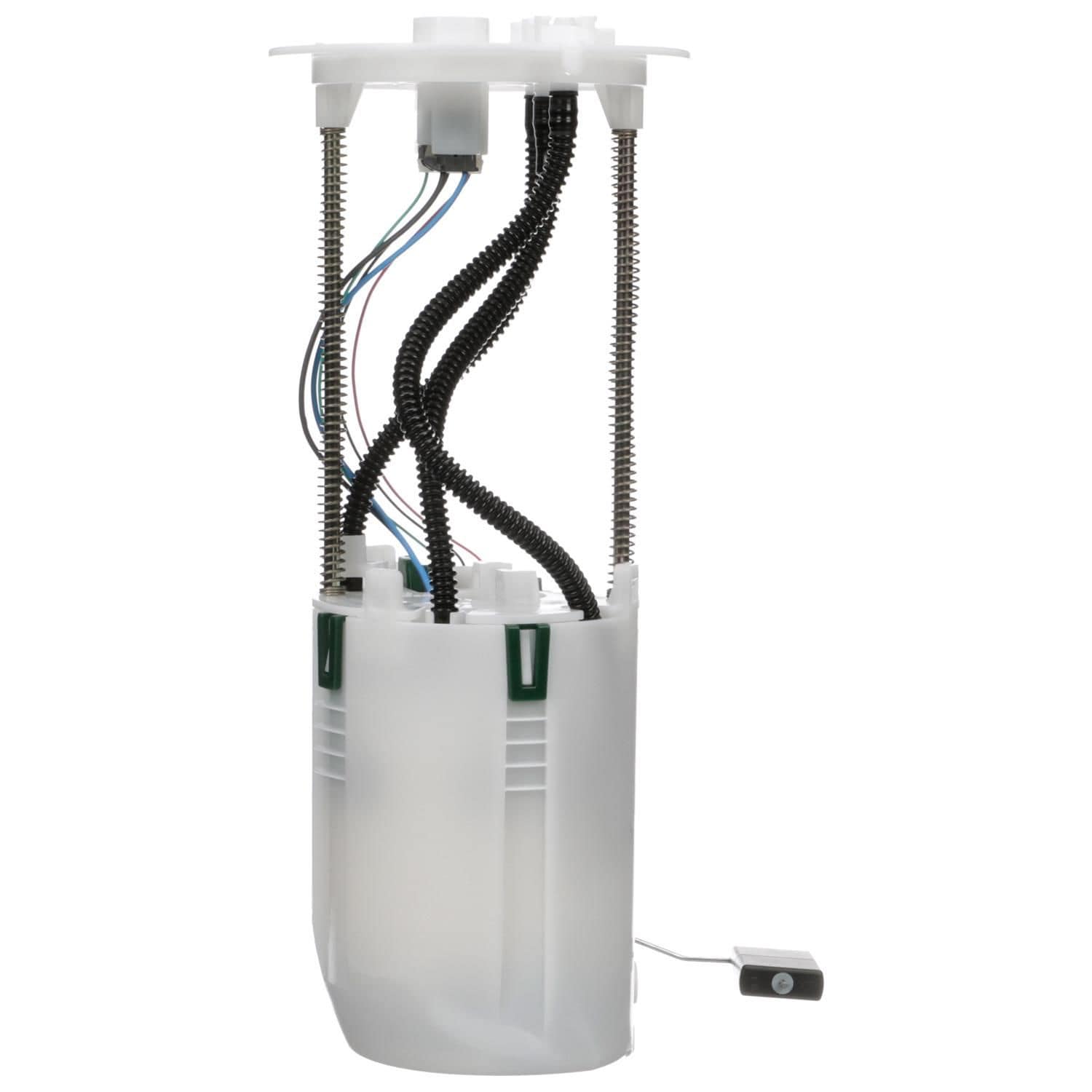

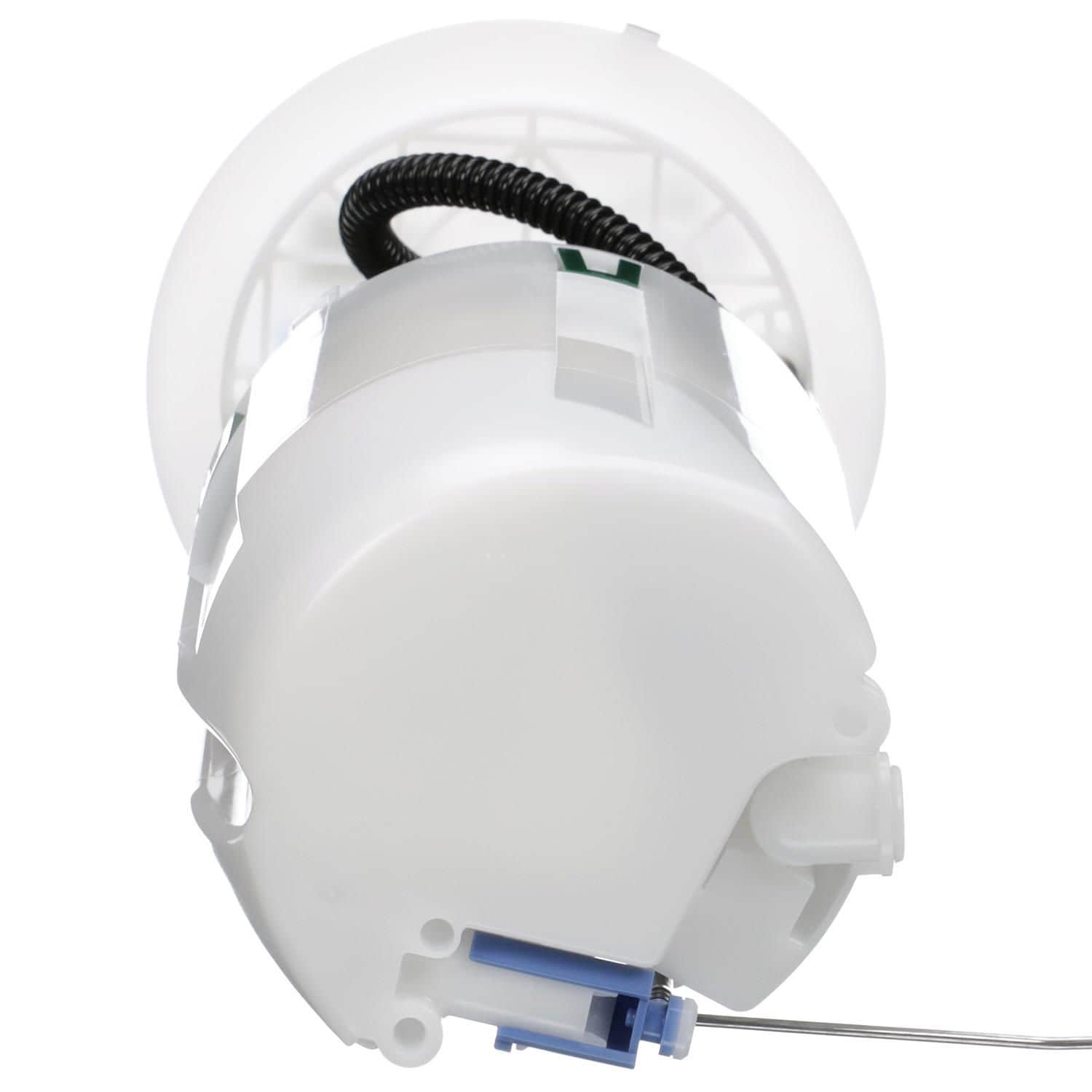

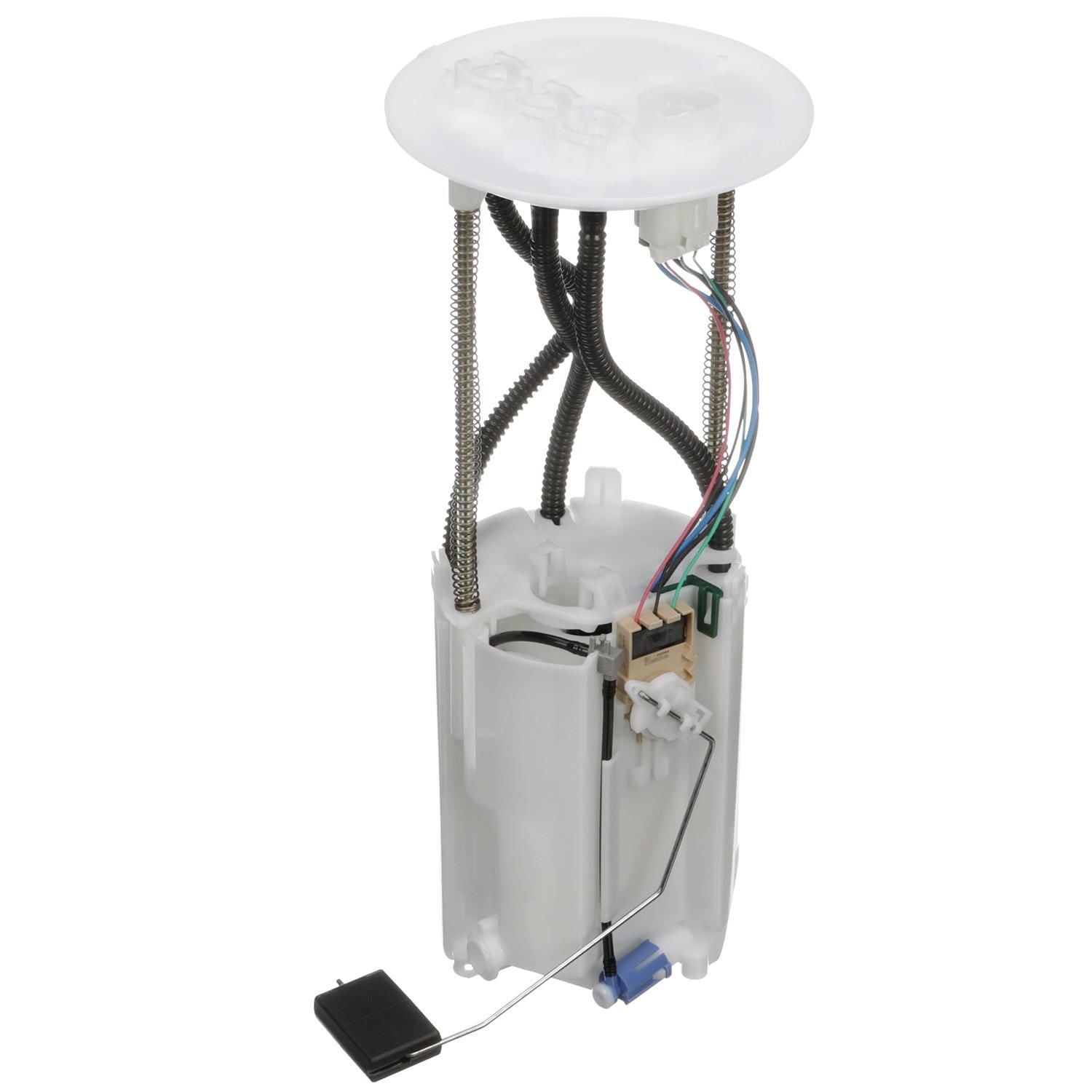

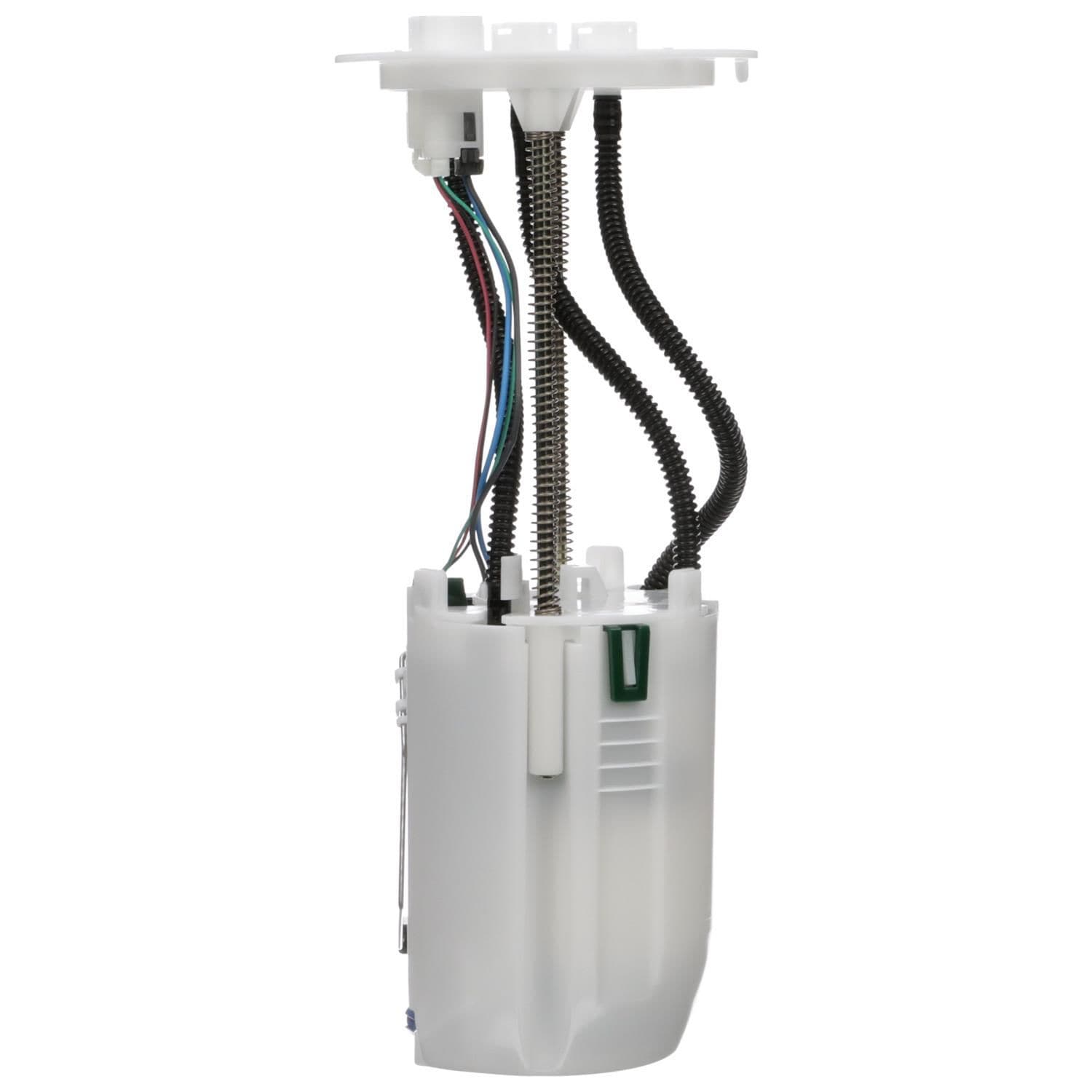

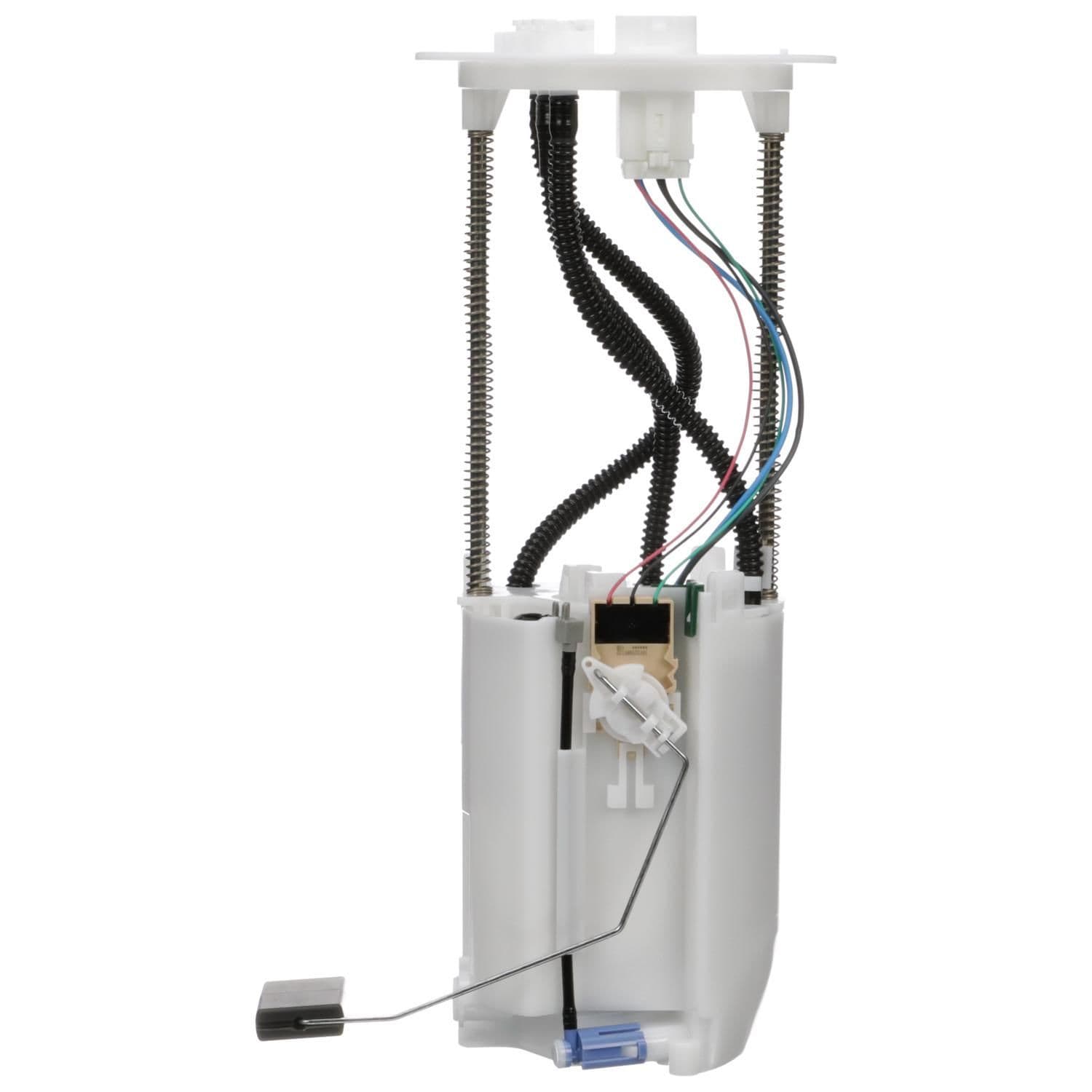

Delphi Fuel Pump EFG2265
Part #
EFG2265
slide 1 of 8
quantity
Specifications:
Warranty:
Part Number:
SKU Number:
Average Flow Rating:
| Warranty | |
|---|---|
| Part # | EFG2265 |
| SKU # | 1010091 |
| Average Flow Rating | 42gph |
| Outlet Quantity | 3 |
| Grade Type | Premium |
| Terminal Quantity | 5 |
| Outlet Outside Diameter | 0.313in |
| Connector Gender | Female |

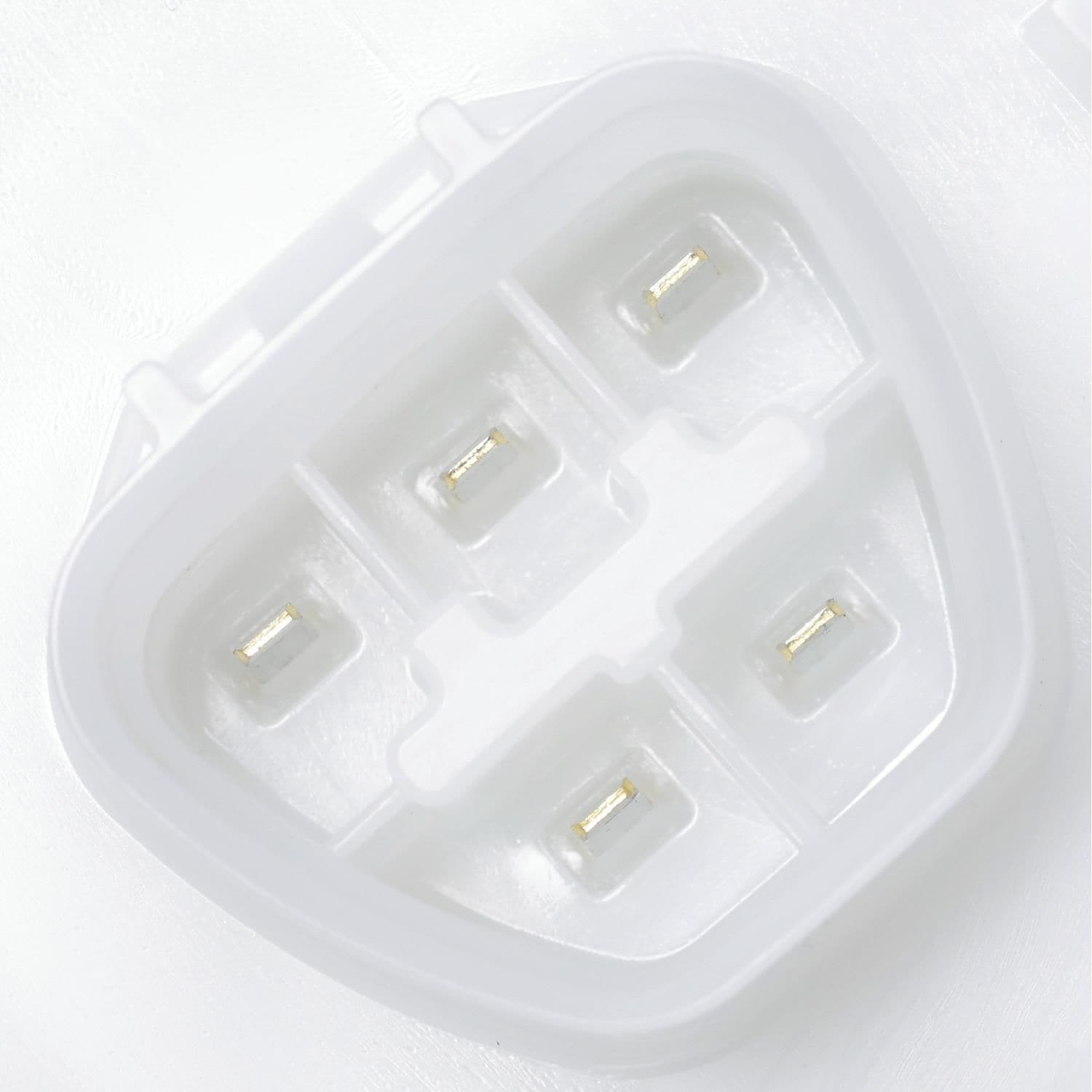

| Connector Shape | Trapezoid |
| Terminal Gender | Male |
| Lock Ring Included | No |
| Connector Quantity | 1 |
| Voltage | 12VDC |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Terminal Type | Blade |
| Resistance Ohms Empty | 425Ohms |
| Resistance Ohms Full | 34Ohms |
| In Tank or External | In Tank |
| Pump Design | Turbine |
| Strainer Included | Yes |
| Pump Type | Electric |
| Mounting Hardware Included | No |
| Housing Material | Plastic |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 43PSI |
| Regulator Included | No |
| Outlet Type | Push In |
| Gasket Or Seal Included | Yes |
| Average Current Draw | 13A |
| Inlet Type | Strainer |
| Fuel Tank Pressure Sensor Included | No |
| Installation Warnings | No |
| Fuel Filter Included | Yes |
| Universal Or Specific Fit | Specific |
| Fuel Type | Gas |
| Internal Or External Strainer | Internal |
| Wire Harness Included | No |
| Maximum Pressure | 80PSI |
Delphi is a Tier 1 supplier to the majority of global vehicle manufacturers and has been a manufacturer of dependable fuel pumps and fuel delivery parts for over 80 years. With over 30 OE-proprietary innovations and 150 patents in fuel technologies, Delphi is regarded as a market leader in North American fuel management with sales coverage at over 95%. Learn more about our expert-led training programs and tech hotline at 1-877-463-3574. Visit our Resource Center for helpful tips and tricks on fuel pumps, technologies, and more: https://www.delphiautoparts.com/usa/en-US/resource-center.
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
