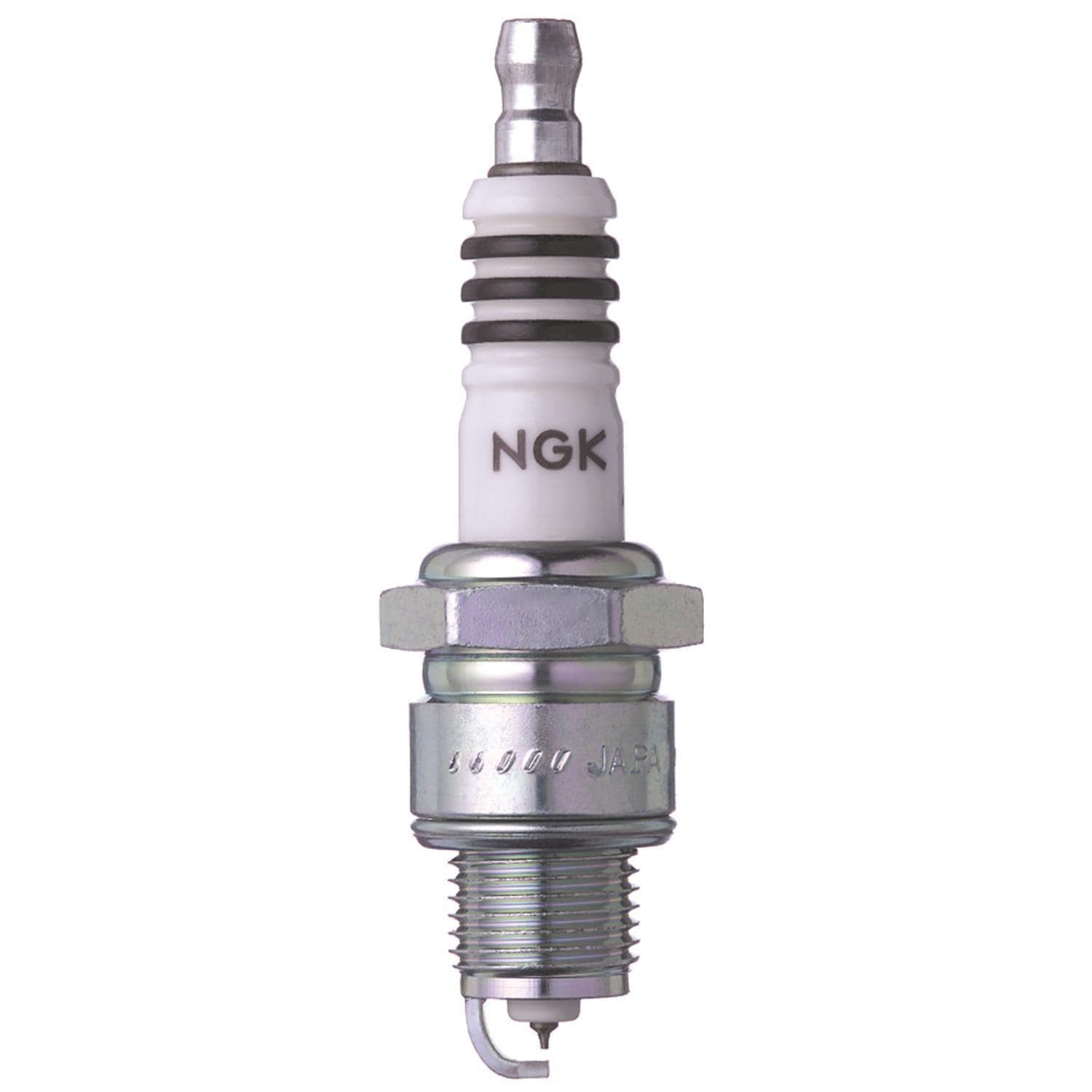

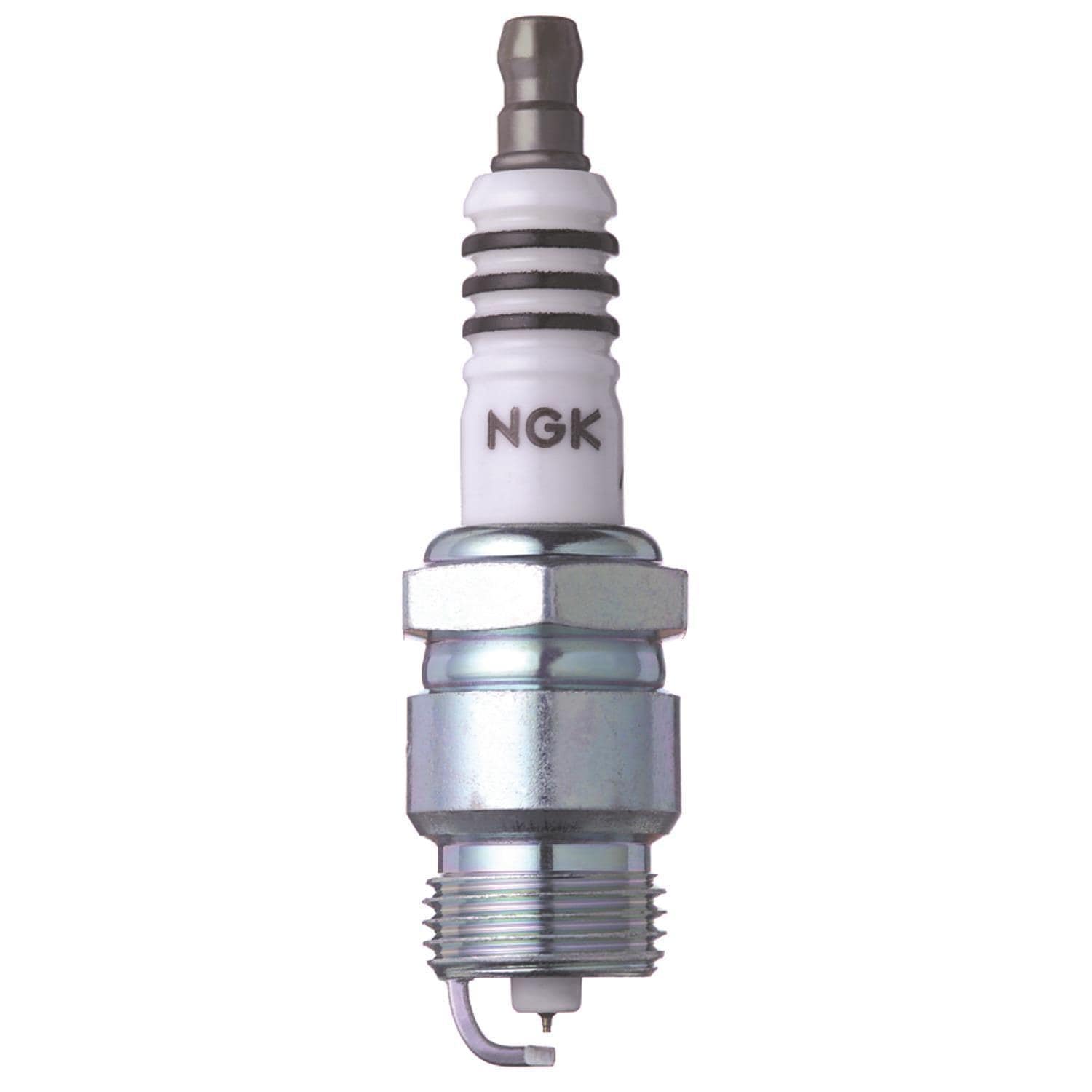

NGK IX Iridium Spark Plug 5944
Part #
5944
slide 1 of 9
quantity
Specifications:
Part Number:
SKU Number:
Resistor Type:
Center Electrode Tip Material:
Features:
- Iridium center electrode 6x harder than platinum
- Outstanding acceleration & fuel efficiency
- Tapered ground electrode for greater ignitability
| Part # | 5944 |
|---|---|
| SKU # | 937771 |
| Resistor Type | Yes |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | 0.8mm |
| Insulator Material | Ceramic |
| Center Electrode Core Material | Copper |
| Grade Type | Performance |
| Skirt | No |
| Resistance | 5000.0Ohms |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Skirt Length | 0.0mm |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Removable Nut |
| Washer Included | Yes |
| Ground Electrode Tip Material | Nickel |
| Seat Type | Flat |
| Reach | 12.7mm |
| Manufacturer Heat Range | 7 |
| Washer Type | Crush |
| Hex Size | 13/16" |
| Metal Type | Iridium |
| Insulator Height | 54.3mm |
| Ground Electrode Quantity | 1 |
| Center Electrode Design | Fine Wire |
| Thread Type Standard | Metric |
| Center Electrode Insulator Tip Projection | 4.0mm |
| Thread Size | M14 - 1.25 |
| Center Electrode Projection | Mid Projection |
NGK Iridium IX spark plugs are specifically designed for the performance enthusiast. Iridium IX provides outstanding acceleration, high fuel efficiency and durability. NGK Iridium IX plugs offer extreme ignitability and exceptional anti-fouling. Tapered cut ground electrode provides improved starting, idling and throttle response. The Iridium fine wire center electrode's durability is six times harder than platinum. Iridium alloy's extremely high melting point is perfect for today's engines. For even greater performance consider upgrading to an NGK Ruthenium HX plug.

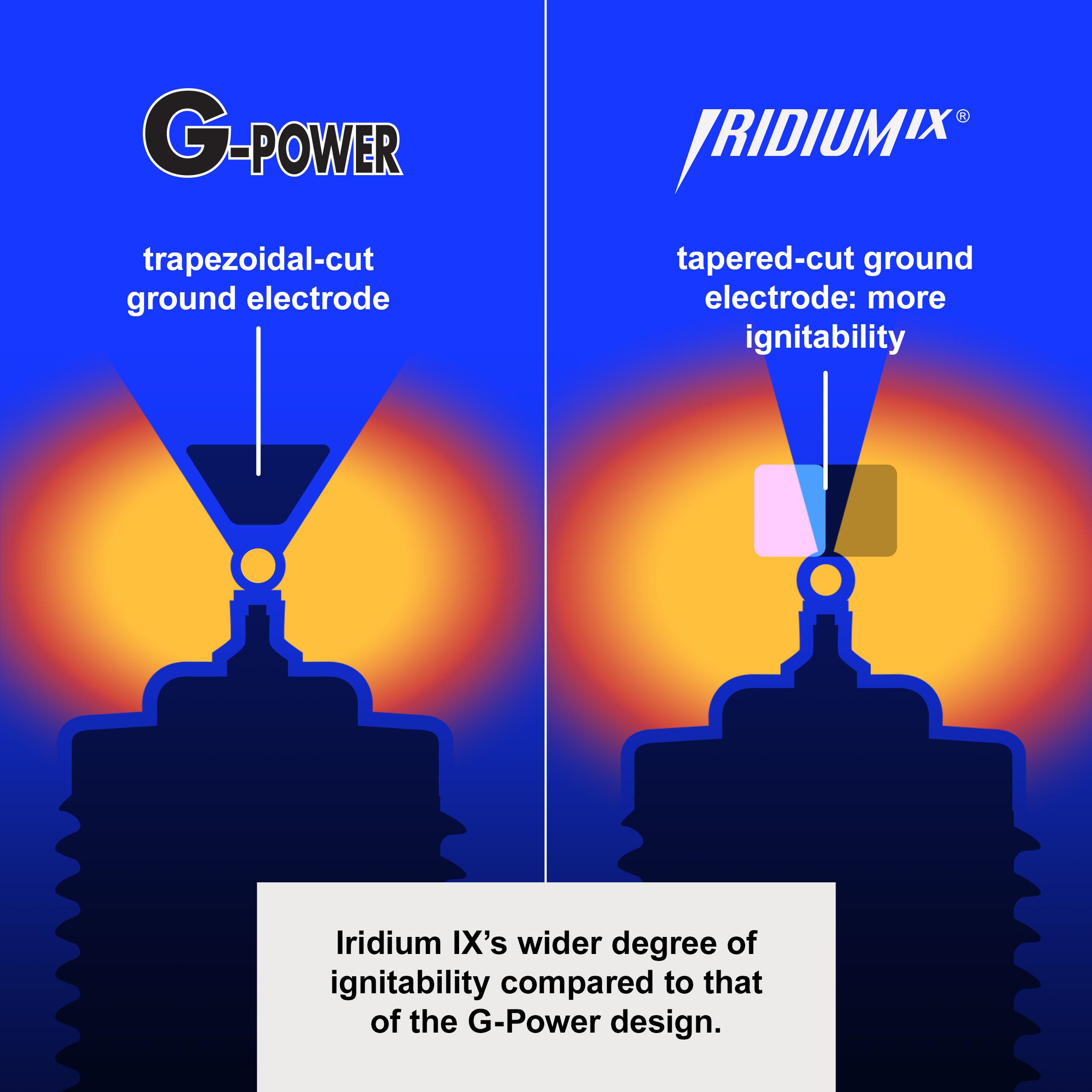

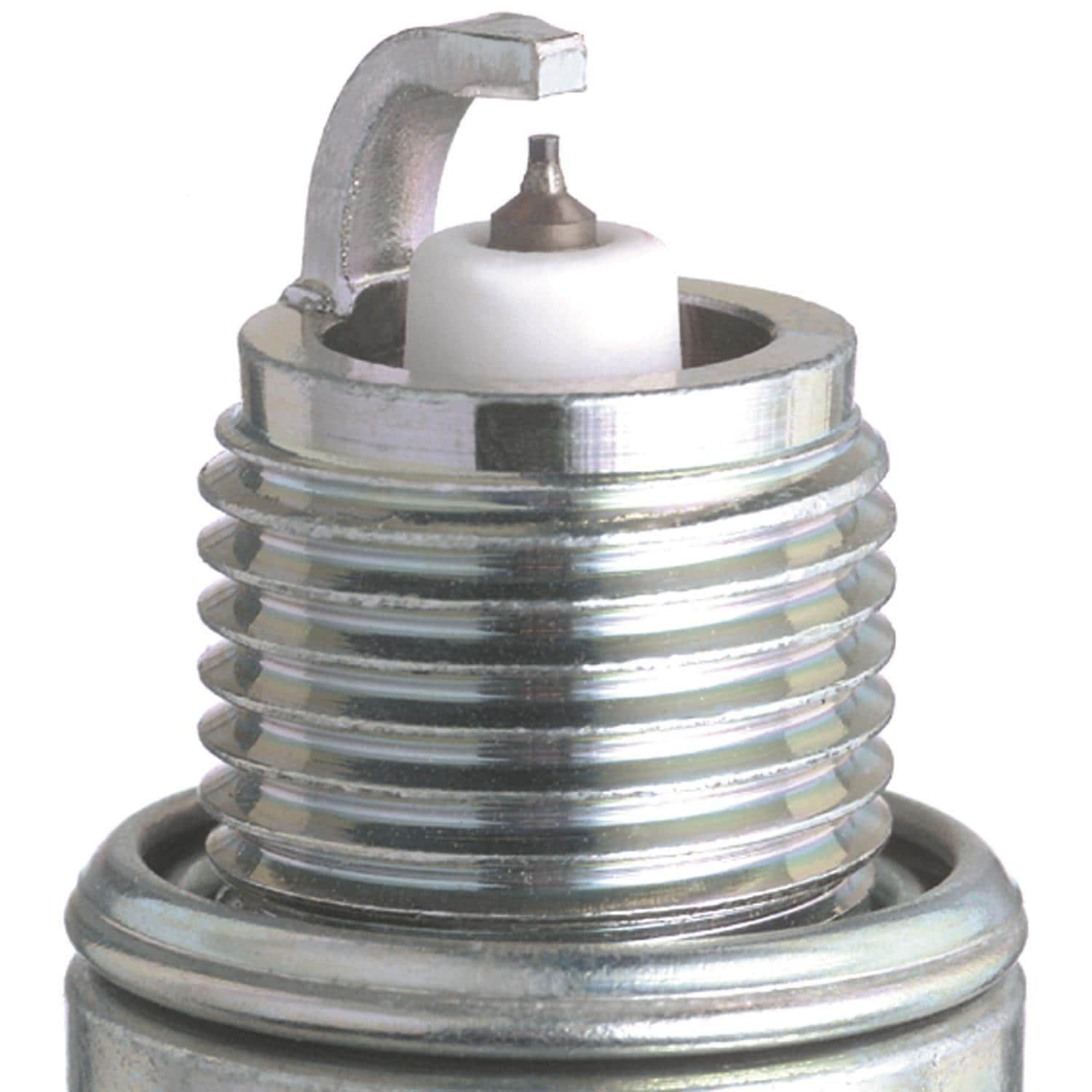

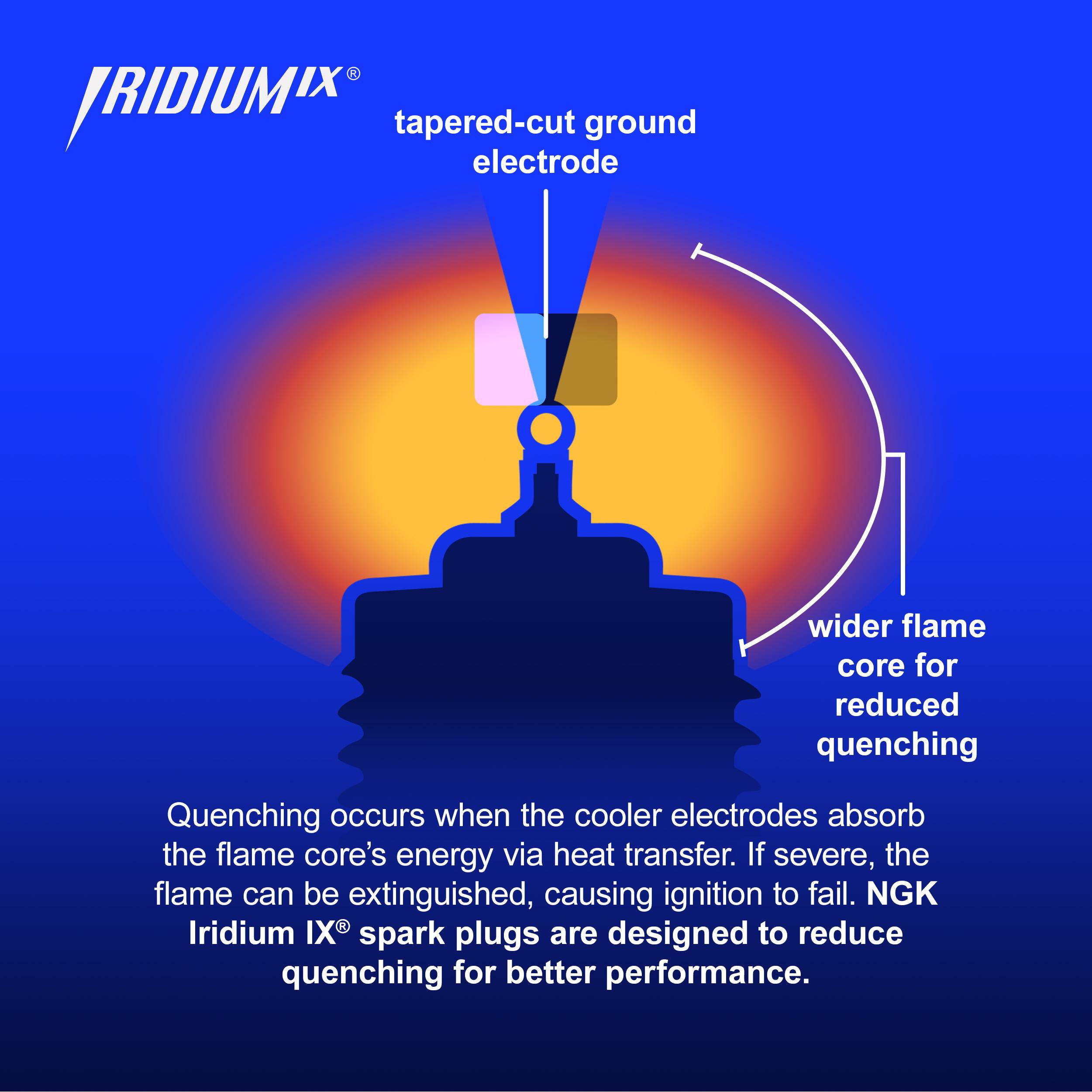

- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs

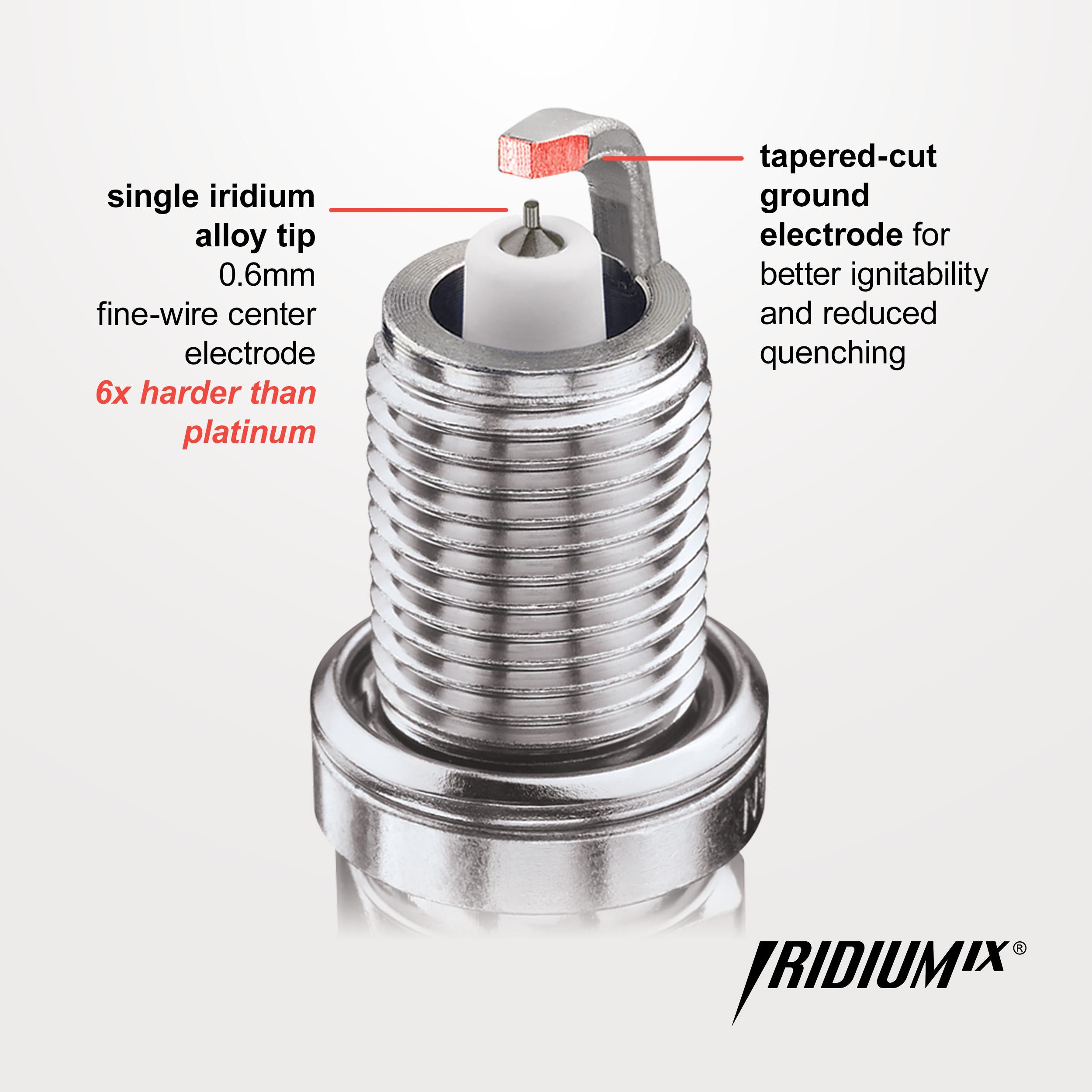

- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines

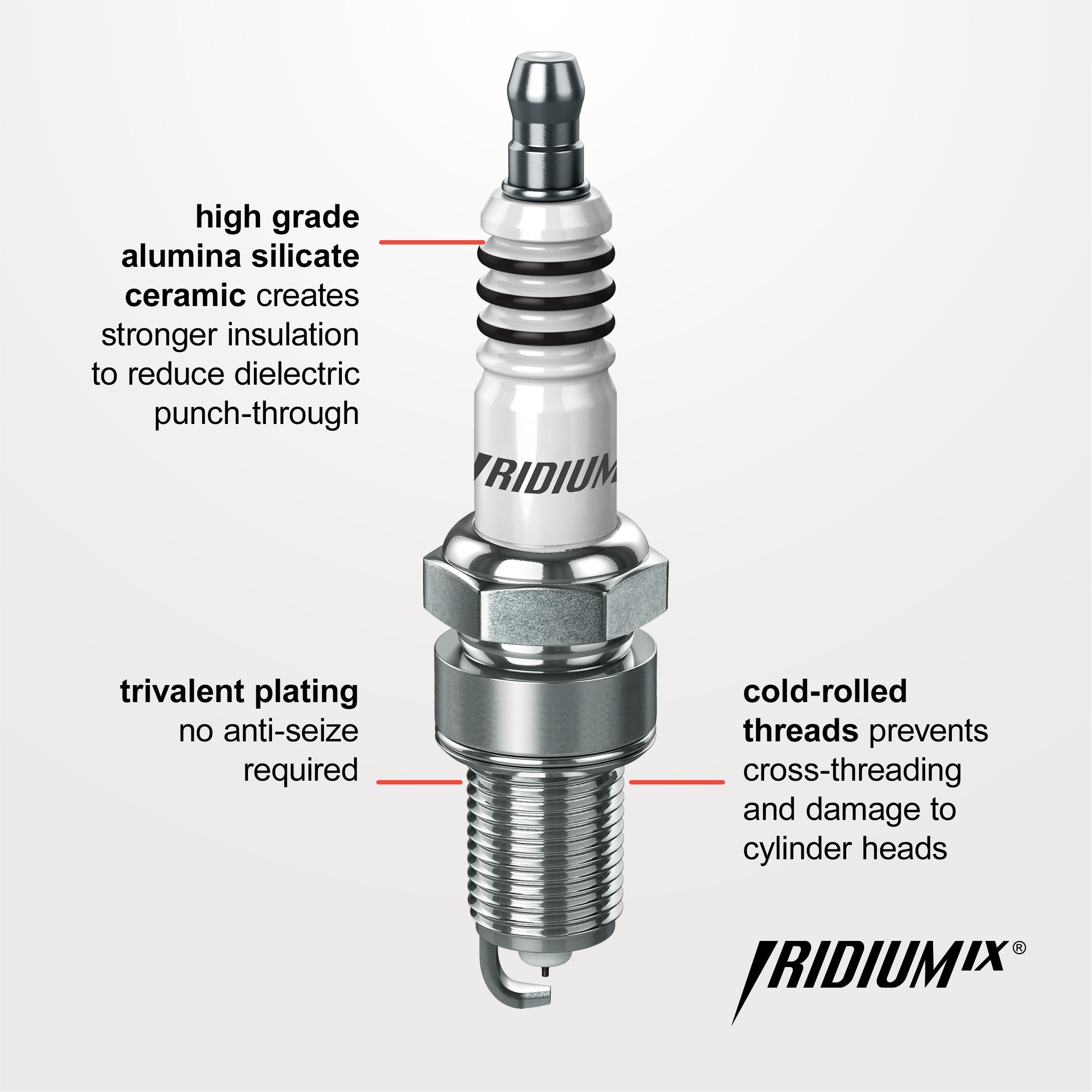

- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
