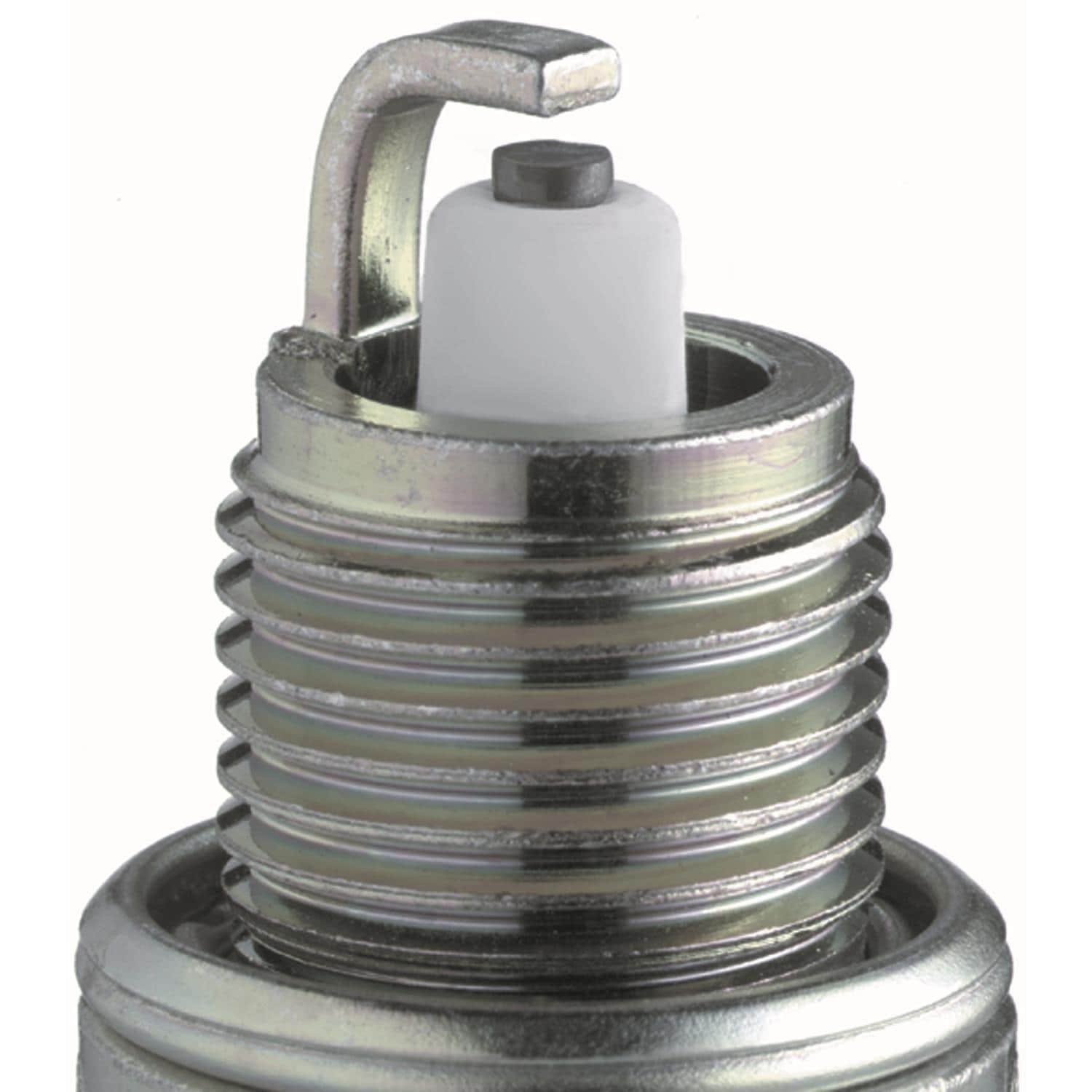

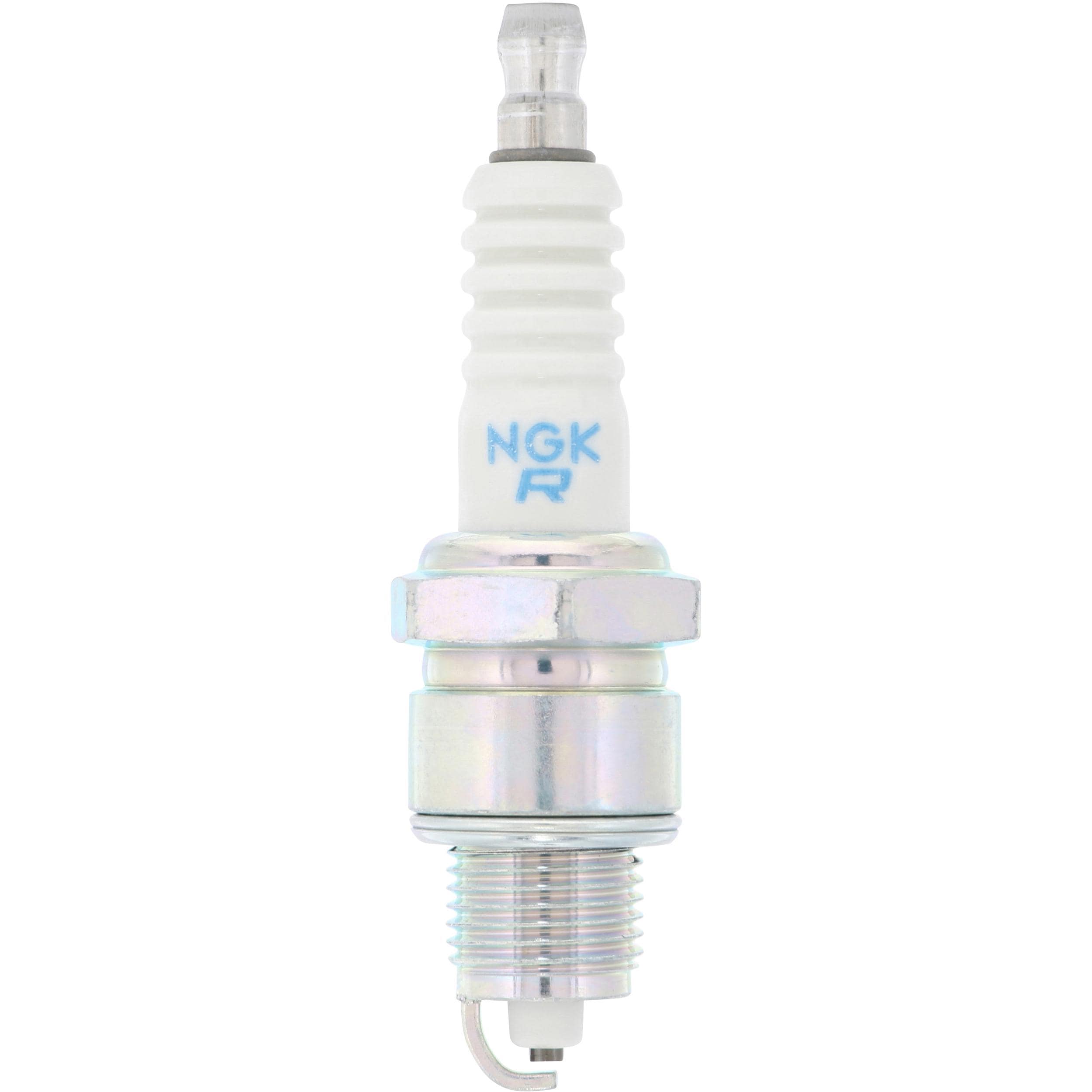

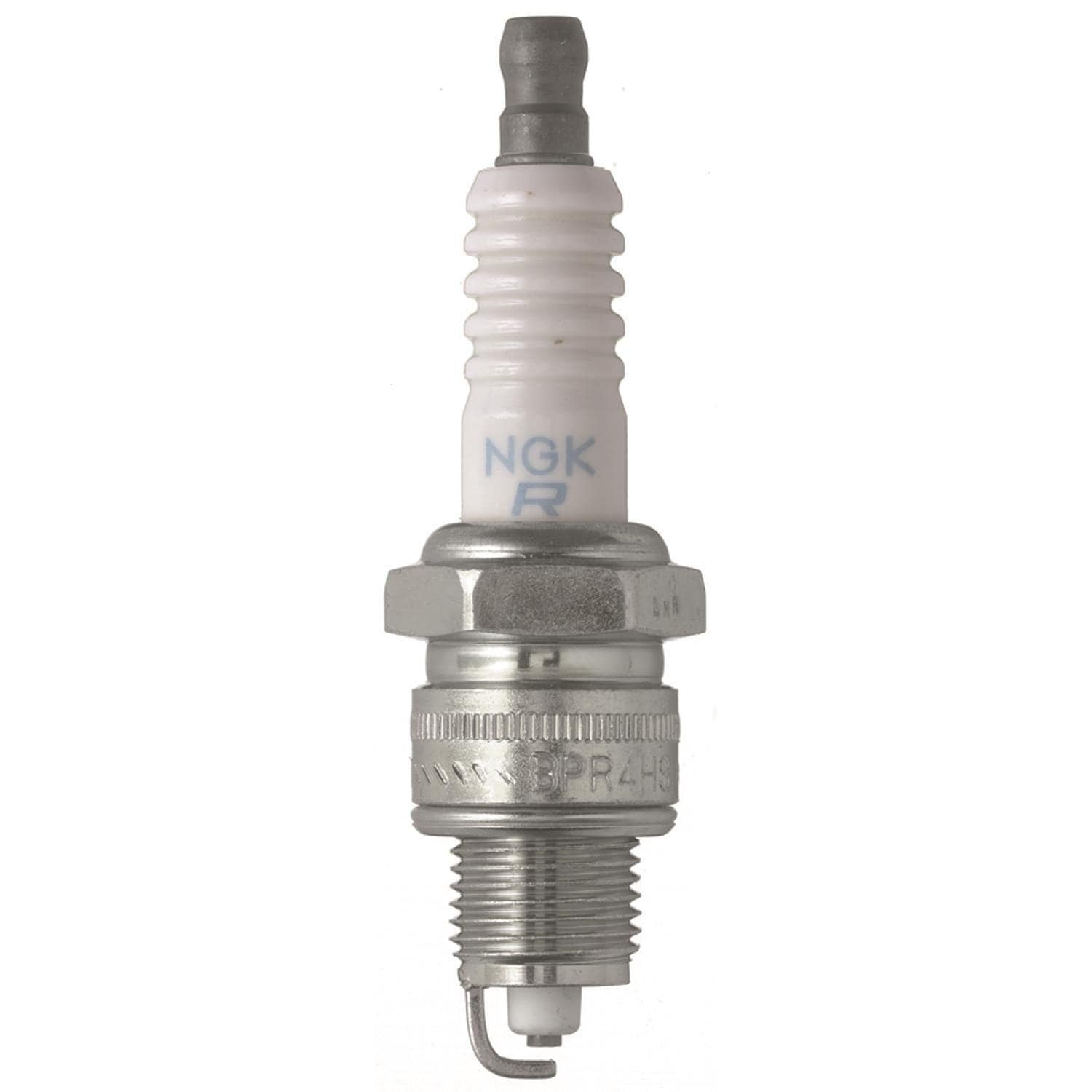

NGK Standard Copper Spark Plug 7823
Part #
7823
slide 1 of 7

quantity
Specifications:
Part Number:
SKU Number:
Resistor Type:
Center Electrode Tip Material:
| Part # | 7823 |
|---|---|
| SKU # | 932137 |
| Resistor Type | Yes |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | 0.7mm |
| Insulator Material | Ceramic |
| Center Electrode Core Material | Copper |
| Grade Type | Standard Replacement |
| Skirt | No |
| Resistance | 5000.0Ohms |
| Ground Electrode Tip Design | Standard |

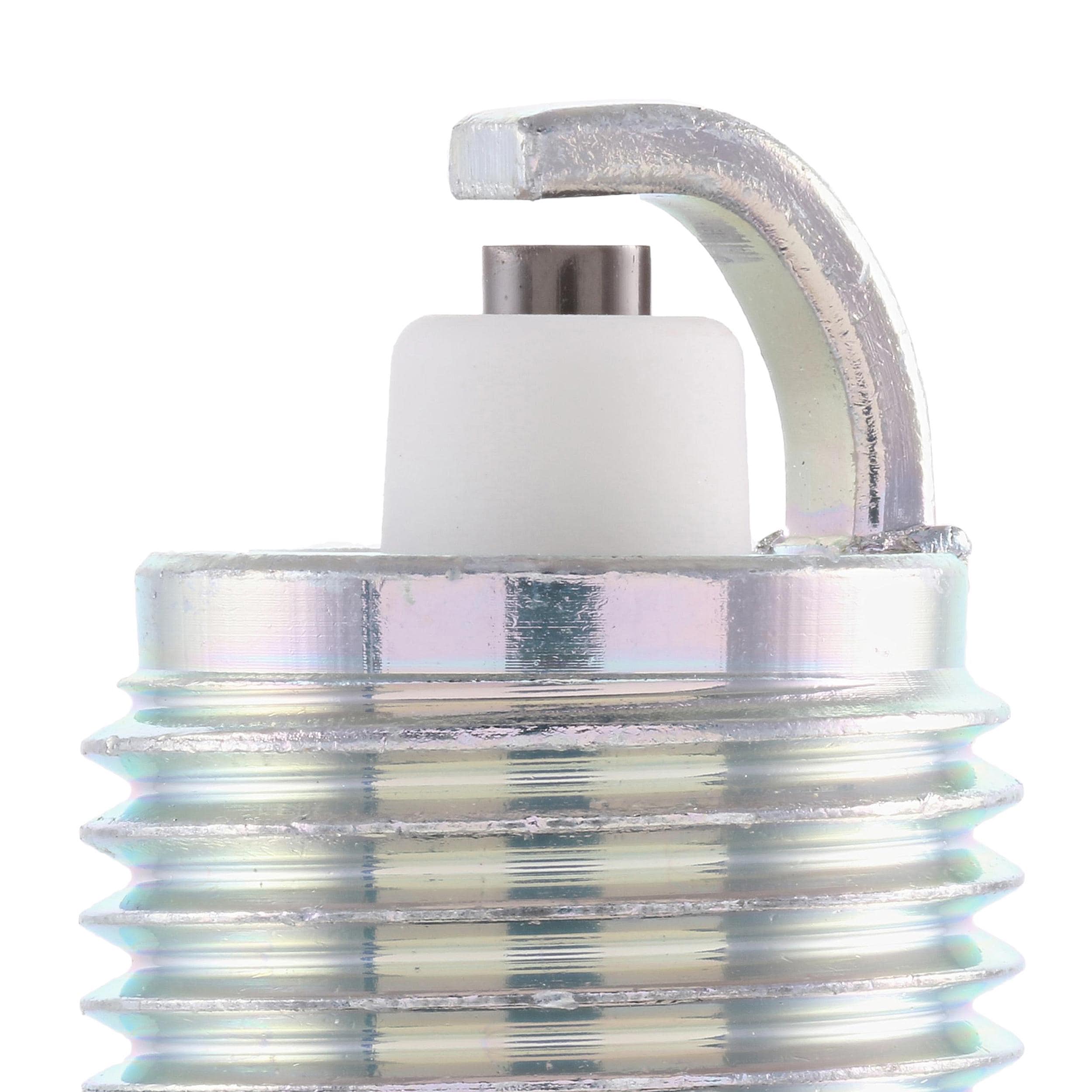

| Ground Configuration | J-Gap |
| Skirt Length | 0.0mm |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Removable Nut |
| Washer Included | Yes |
| Ground Electrode Tip Material | Nickel |
| Seat Type | Flat |
| Reach | 12.7mm |
| Manufacturer Heat Range | 4 |
| Washer Type | Crush |
| Hex Size | 13/16" |
| Metal Type | Copper |
| Insulator Height | 54.3mm |
| Ground Electrode Quantity | 1 |
| Center Electrode Design | Standard |
| Thread Type Standard | Metric |
| Center Electrode Insulator Tip Projection | 4.5mm |
| Thread Size | M14 - 1.25 |
| Center Electrode Projection | Long Projection |
NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

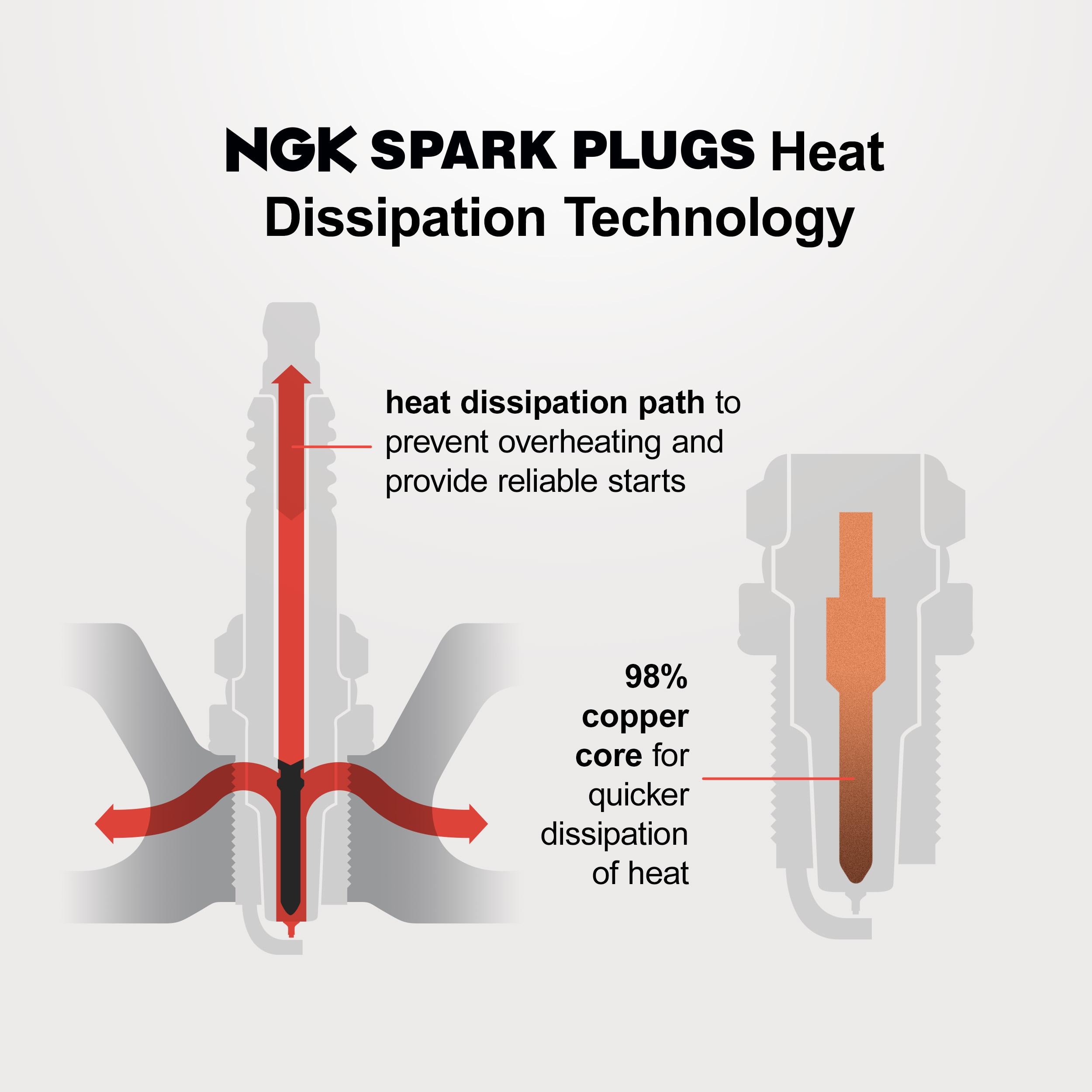

- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Spark Plugs Metal Types
Currently Viewing NGK Standard Copper Spark Plug 7823 | ||||
|---|---|---|---|---|
Customer Rating | - | (4)Total Reviews | (1)Total Reviews | (2)Total Reviews |
Price | Total price is: 5 dollars and 99 cents. | Total price is: 19 dollars and 99 cents. | Total price is: 13 dollars and 99 cents. | Total price is: 23 dollars and 99 cents. |
Metal Type | Copper | Iridium | Iridium | Iridium |
7 Ratings
100% of reviewers recommend this product.
Customer Images
- Sort By
- Filter by
5 Reviews
- CHASE1 day agoVerified PurchaseWorks good no issues works grate on small engines like generators
Helpful?
Great price
Kevin B2 years agoVerified PurchaseRecommendedPerfect for my John Deere X350 lawn tractor.Helpful?
Service
Tom2 years agoVerified PurchaseRecommendedSweepstakes EntryPlug was perfect service was betterPurchased for: 214 ford f150Helpful?
my lawn tractor is not working great
tony2 years agoVerified PurchaseRecommendedSweepstakes Entrylawn tractorPurchased for: honda 4514 tractorHelpful?
they always got what i need

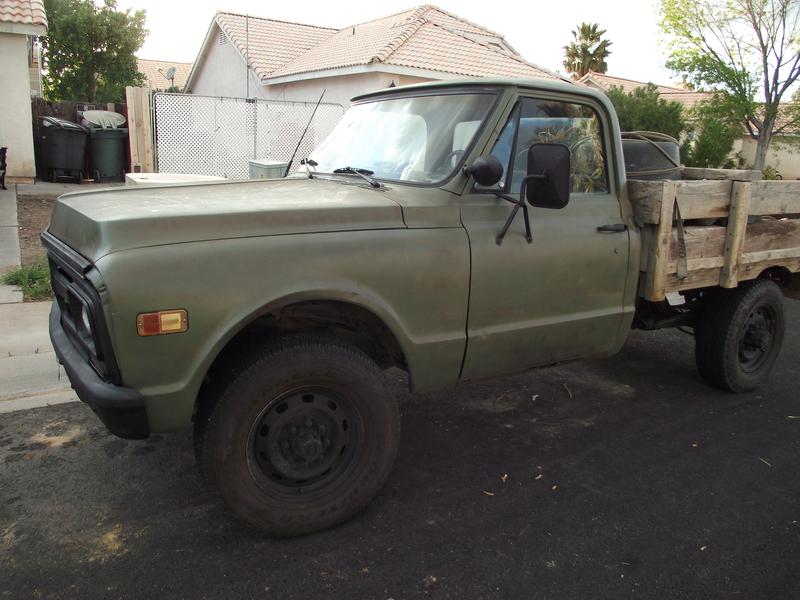

davey wavey7 years agoVerified PurchaseRecommendedi installed these plugs in my 1969 chevy about a month ago and have been working grate for mePurchased for: 1969 chevy k20Helpful?
Quality5 out of 5 stars
Ease of Installation5 out of 5 stars
Price & Value5 out of 5 stars
