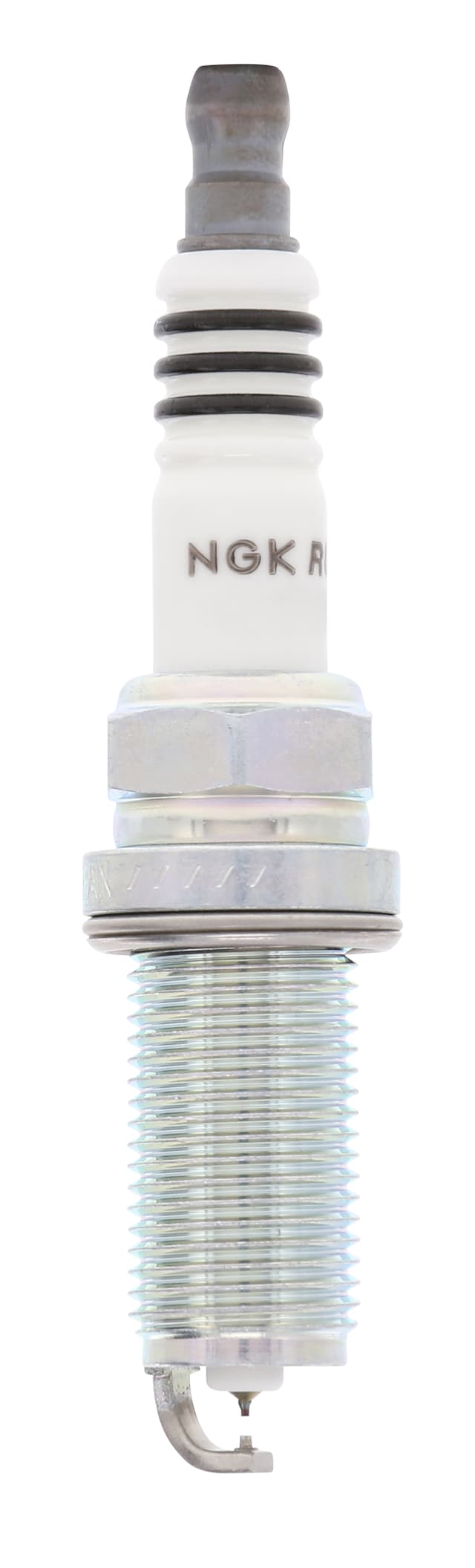

NGK Ruthenium HX Spark Plug 94122
Shop All NGKNGK1009754https://www.autozone.com/external-engine/spark-plug/p/ngk-ruthenium-hx-spark-plug-94122/1009754_0_0?searchText=3301
Part # 94122
SKU # 1009754
Total price is: 14 dollars and 99 cents.
| Part # | 94122 |
|---|---|
| SKU # | 1009754 |
| Weight | 0.12lbs |
| Resistor Type | Yes |
| Center Electrode Tip Material | Ruthenium |
| Pre-Gap Size | 1.1mm |
| Insulator Material | Ceramic |
| Center Electrode Core Material | Copper |
| Grade Type | Performance |
| Skirt | No |
| Resistance | 5000.0Ohms |
| Ground Electrode Tip Design | Dual Fine Electrode (DFE) - High Ignitability |
| Skirt Length | 0.0mm |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Washer Included | Yes |
| Ground Electrode Tip Material | Platinum |
| Thread Diameter | 14.0mm |
| Seat Type | Flat |
| Reach | 26.5mm |
| Washer Type | Crush |
| Manufacturer Heat Range | 6 |
| Metal Type | Ruthenium |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 50.5mm |
| Ground Electrode Quantity | 1 |
| Center Electrode Design | Fine Wire |
| Center Electrode Insulator Tip Projection | 3.0mm |
| Center Electrode Projection | Mid Projection |
PRODUCT DESCRIPTION
NGK Ruthenium HX High Ignitability spark plugs are the best in class plug for todays modern vehicles. Patented Ruthenium technology offers the most advance tip technology and delivers the highest performance and life expectancy. Created from advanced OE technology as a high ignitability plug; Ruthenium HX spark plugs come with patented, specialized OEM DFE and PSPE tip designs. NGK Ruthenium HX High Ignitability spark plugs provide a more complete fuel burn resulting in a quicker throttle response, smoother idle and better cold starts. Ruthenium center electrode provides industry leading durability.
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal- HIGH IGNITABILITY DOUBLE FINE ELECTRODE DESIGN: Combines 0.6 millimeter ruthenium center with opposed fine wire platinum ground electrode
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- RUTHENIUM ALLOY CENTER ELECTRODE: NGK's patented ruthenium technology produces maximum performance, ignitability & durability at high temperatures
- RECOMMENDED USAGE: Modern vehicles using OE DFE type spark plugs or for those seeking an aftermarket plug with the latest OE technology
- PLATINUM PIN TYPE GROUND ELECTRODE: Provides more complete fuel burn, quicker throttle response, smoother idle and better cold starts
Spark Plugs Metal Types
Currently Viewing  NGK Ruthenium HX Spark Plug 94122 | ||||
|---|---|---|---|---|
Customer Rating | 4.8 (16) | 5.0 (1) | 5.0 (4) | 5.0 (1) |
Price | Total price is: 14 dollars and 99 cents. | Total price is: 17 dollars and 99 cents. | Total price is: 11 dollars and 99 cents. | Total price is: 10 dollars and 99 cents. |
Metal Type | Ruthenium | Iridium | Copper | Iridium |
Customer Reviews
16 Reviews
92% of reviewers recommend this product.
12 recommendations
Ratings
Customer Images
- Sort by
- Filter by
16 Reviews
Thanks
Daniel b4 months agoVerified PurchaseThanks
Helpful?
Good spark flag for bmw
Gerry Salvador6 months agoVerified PurchaseRecommendedSweepstakes EntrySo far so good on my 2008 bmw x3 3.0si quite i feel a little bit of power.
Helpful?
Expensive, but good plugs
Ernest9 months agoVerified PurchaseRecommendedSweepstakes EntryGood plugs.
Purchased for: 2013 BMW 128iHelpful?
My go to Plug for BMW
james1 year agoVerified PurchaseRecommendedSweepstakes EntryThis is a very good plug for BMW's i use it on both my 2013 535i Xdrive and my 2011 328i
Purchased for: BMW 2013 535i Xdrive and 2011 328iHelpful?
Car feels like new
Amerikaneagle1 year agoVerified PurchaseRecommendedSweepstakes EntryThese Sparks plugs increased my mpg from 18 - 25 mpg
Purchased for: 2015 Toyota HighlanderHelpful?
Excellent parts thanks
William Bussell1 year agoVerified PurchaseRecommendedSweepstakes EntryRepairs
Helpful?
Spark plugs great
Olivia1 year agoVerified PurchaseRecommendedSweepstakes EntryEasy install, car ran great
Helpful?
Good buy
Ivan B1 year agoVerified PurchaseRecommendedSweepstakes EntryGreat quality. Fast shipping.
Purchased for: 2006 Toyota 4RunnerHelpful?
Good spark plugs
Pablo1 year agoVerified PurchaseSweepstakes EntryGood spark def improved performance
Helpful?
Kinda disappointed
Marvv1 year agoVerified PurchaseSweepstakes EntryHonestly they are oh-Kay. Iam going back to iridium sparks plugs I did not how they perform for my car.
Purchased for: 08’ Lexus RX 350Helpful?
Na
Jpstudios1 year agoVerified PurchaseRecommendedSweepstakes EntrySuperior product
Purchased for: TacomaHelpful?
NGK Bimmer Plug
Bimmer Boyz CC1 year agoVerified PurchaseSweepstakes EntryGreat plug and one of my go to for the Bimmers
Purchased for: BMW 2011 328i E90Helpful?
Best spark plug for toyota
Jesus1 year agoVerified PurchaseRecommendedSweepstakes EntryLove my Nkg's. These thing work great for my Toyota differently worth the cost.
Purchased for: 2014 4.6L TRD SR5 4x4 Toyota TundraHelpful?
Great purchase
Michael2 years agoVerified PurchaseRecommendedSweepstakes EntryI use it on my 2013 tacoma 2.7 L and it made such a difference. The acceleration was back to normal. I do recommend it to anyone who need to get their car to factory reset.
Purchased for: 2013 tacoma 2.7L RWDHelpful?
Very good
Willian2 years agoRecommendedSweepstakes EntrySave fuel
Purchased for: 2008 toyota tacomaHelpful?
Very efficient especially in damp winter weather .
Christopher5 years agoRecommendedSweepstakes EntryVery fast starting and idles smoother in Kentucky's damp winter weather .
Purchased for: 2017 Toyota Tundra 5.7l TRD OFFROADHelpful?
