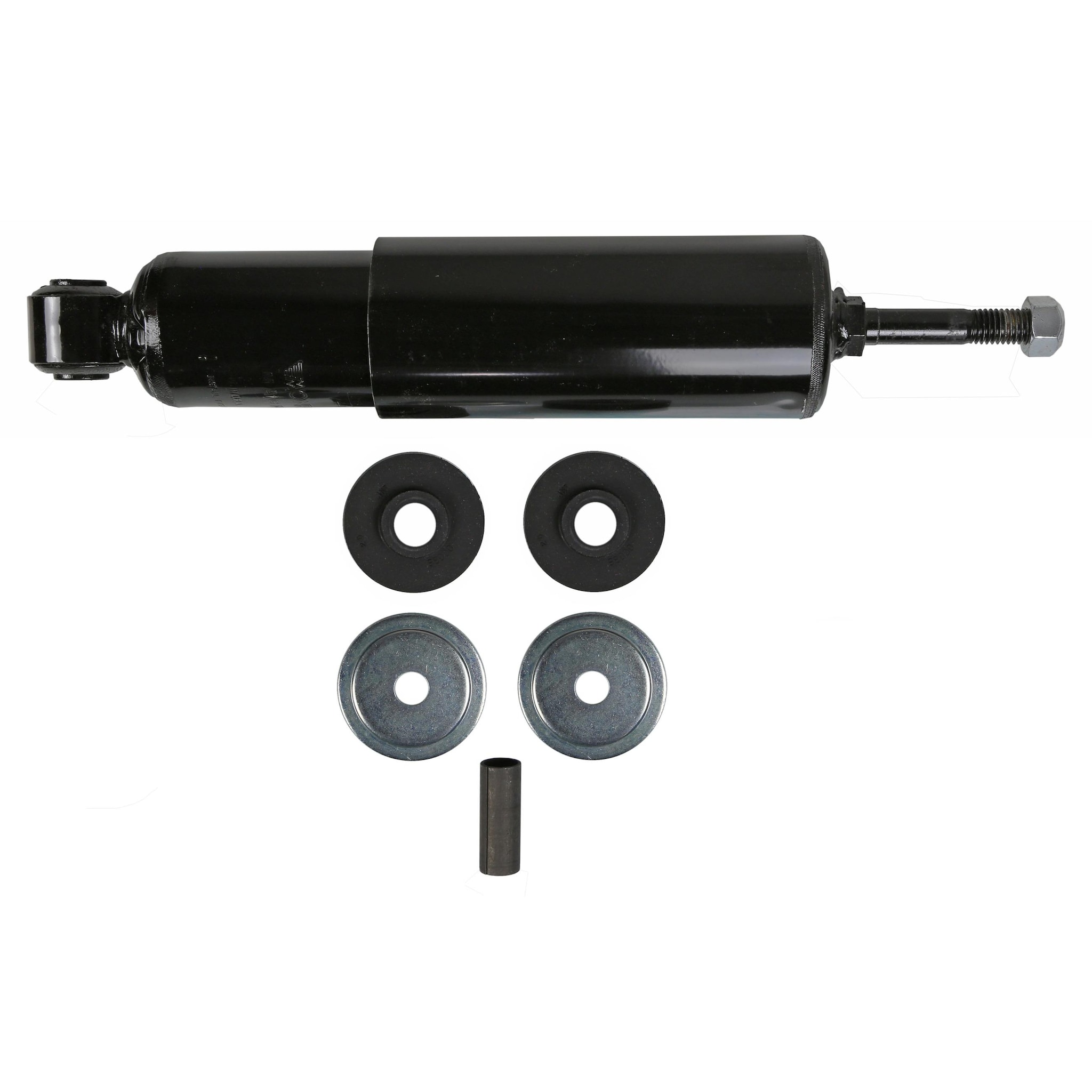

Monroe Magnum Suspension Shock Absorber 74480
Part #
74480
slide 1 of 1
quantity
Specifications:
Warranty:
Part Number:
SKU Number:
Shock Absorber Body End Measuring Point:
| Warranty | |
|---|---|
| Part # | 74480 |
| SKU # | 1698846 |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Hydraulic Lockout | Yes |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Travel Length | 169.7mm |
| Grade Type | Premium |
| Compressed Length | 334.8mm |
| Mounting Hardware Included | No |
| Internal Construction Type | Twin Tube |
| Body Diameter | 2.74in |
| Adjustable Rebound | No |
| Shock Absorber Bore Size | 1.75in |
| Includes Bump Stop | No |
| Finish | Painted |
| Dust Shield Material | Metal |
| Gas Charged | No |
| Active or Passive Suspension | Passive |
| Color | Black |
| Dust Shield Included | Yes |
| Internal Rebound Bumper | No |
| Extended Length | 504.4mm |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Adjustable Ride Height | No |
| Adjustable Compression | No |
Tough Monroe® Magnum® shock absorbers for transit buses deliver a firm, controlled ride for greater stability and increased driver and passenger comfort. Magnum transit bus shocks are designed to meet or exceed demanding OE manufacturer specifications.
- FOR HARDWORKING TRANSIT BUSES -- Designed to handle the demands of high mileage and severe use transit buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/4-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore allows valve finetuning by allowing more hydraulic fluid to dissipate heat for better control
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
